Product Details:
Payment & Shipping Terms:
|
| Product Name: | Hydraulic Rubber Plastic Shop Press | Platen Size: | 350*350mm |
|---|---|---|---|
| Press Layer: | Two | Power Supply: | 380V/ 440v 60hz |
| Heating: | Electrical | Cooling: | Water Cooling |
| Capacity: | 30T | ||
| Highlight: | rubber tensile testing machine,rubber hardness tester |
||

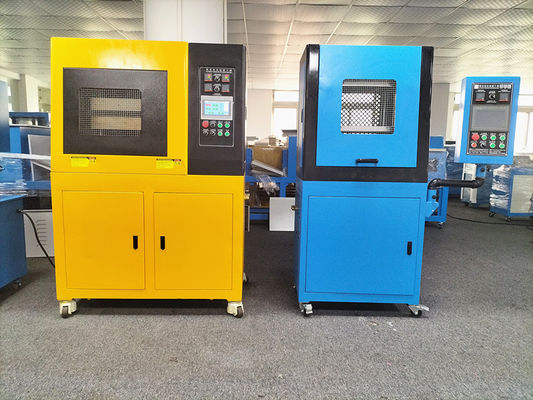

10Ton 50Ton Hydraulic Rubber Plastic Shop Press , Lab Hydraulic Press
Instruction:
Hydraulic Rubber Plastic Shop Press is placed in the casting mold and clamped between
the electric-heating flat plates to apply pressure and temperature,make the material shaping,testing and
serving as the basis for the ingredient of mass production.
Parameters:
| Product Name | 10Ton 50Ton Hydraulic Rubber Plastic Shop Press , Lab Hydraulic Press |
| Capacity | 10T/20T/30T/50T (Can be customize) |
| Temp. Range | Room temp. ~300℃ |
| Temp. Controller | LED Indicator,press key set input, the value indicate output |
| Timer | LED display,time range 0.1S~99min~9.9hr |
| Heating type | Electrical Heating module |
| Hot pressure plate | 300×300mm, 350*350mm |
| Cold pressure plate | 300×300mm, 350*350mm |
| Distance of pressure plate | 100mm |
| Pressure material | SKD chromium-molybdenum alloy |
| Pressure surface | Mirror chrome plated |
| Cooling temperature scope | Room temp. ~+5℃ |
| Cooling type | Tap water cooling/compressor cooling water(optional) |
| Oil pressure system |
The proportion hydraulic pressure current capacity loop circuit control system,the GPY oil pump driver high performance electroencephalographic matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can preelection one, two times pressure and time. |
| Oil cylinder stroke | Max 200mm |
| Oil cylinder speed | 11mm/s |
| Pressure gauge | 0~350kg/sq.cm |
| power | 10.6HP |
| Dimension W×D×H | 1200×600×1500 mm |
| Power supply | AC380V,three phase 60hz |
| Weight | About 750 kg |
Download Brief:
ZL-3022 Laboratory Hydraulic Press Tester; Lab Ho...
FAQ
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
3. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
4. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
