|Max Load::||1000KN, 2000KN, 3000KN||Test Force Measuring Range::||4%-100%FS|
|The Relative Error::||≤indicating Value±1%||Test Force Resolution::||0.03KN|
|Hydraulic Pump Rated Pressure::||40MPa||Piston Diameter::||250mm /310mm|
|Piston Stroke::||50mm /100mm||Warranty:||12 Month|
universal test equipment,
tensile test machine

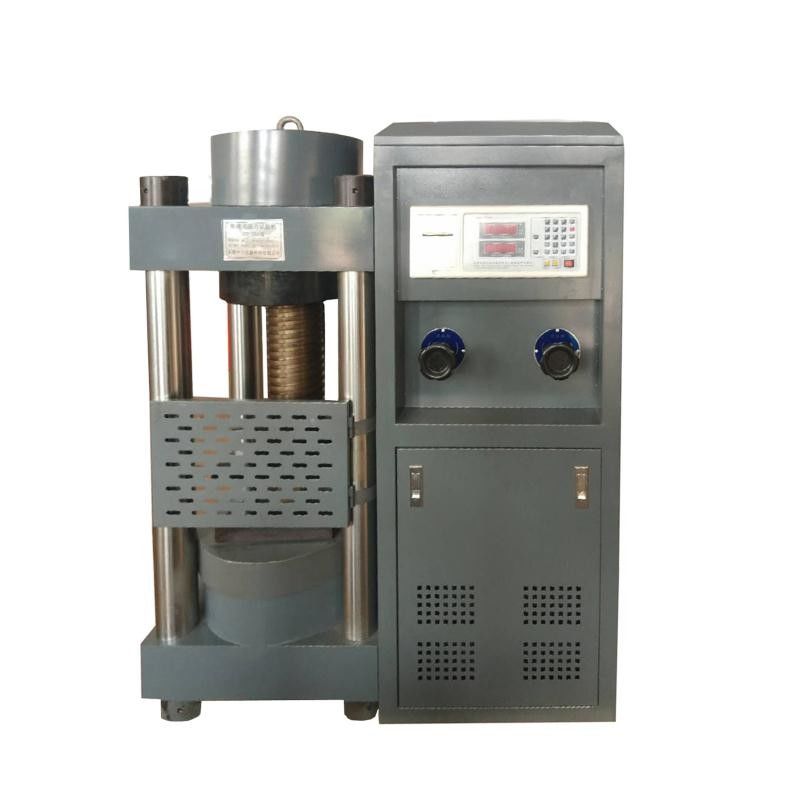

Automatic Computer Compression Universal Testing Equipment is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test,also used to test the compressive performance of other materials.
2. Spatial adjustment method: Electric lift
3. Hydraulic System:
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.
4. Control system:
System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.
5. Main performance technical specifications:
|Model||Automatic Computer Compression Universal Testing Equipment|
|Test force measuring range||4%-100%FS|
|Test Force showed the relative error||≤indicating value±1%||<±1%|
|Test Force Resolution||0.03KN||0.03KN|
|Hydraulic pump rated pressure||40MPa|
|Upper and lower bearing plate size||320*260mm||500*500mm|
Maximum distance between the
|Motor Power||0.77 kW||1.1kW|
|Outside dimension (l*w*h)||640×720×1500 mm||780×720×1950 mm|
1. How to choose the most suitable fitness equipment steel tensile testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test
you need to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is
15-20 working days after deposit receipt. If you are in urgent need, we can consider making
special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to
meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help
to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,
UK, Italy,Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and
Vietnam, Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support
and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered
many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing
and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
