30T SKD Alloy Press Material Rubber Hot Plate Vulcanization Hydraulic Press Machine

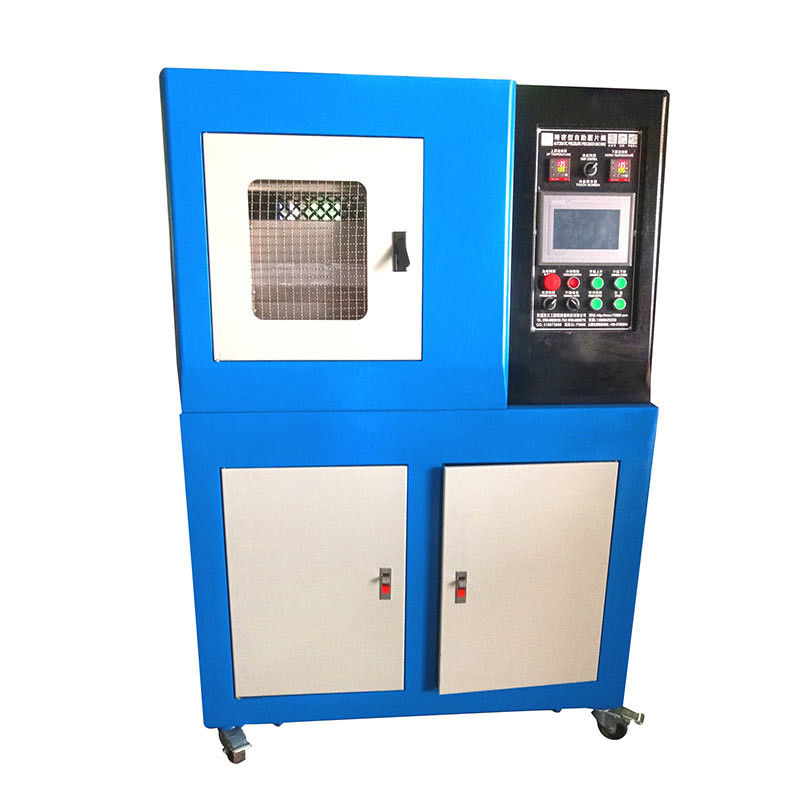

Large Image : 30T SKD Alloy Press Material Rubber Hot Plate Vulcanization Hydraulic Press Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO, CE
Model Number:	ZL-3022

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	30T SKD Alloy Press Material Rubber Hot Plate Vulcanization Hydraulic Press Machine is Packaged in wooden case
Delivery Time:	15- 20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	30T SKD Alloy Press Material Rubber Hot Plate Vulcanization Hydraulic Press Machine	Capacity:	20T / 30T/ 50T
Platen Size:	300*300mm	Press Layer:	One / Two
Power Supply:	380v / 440v 60hz	Heating:	Electrical
Cooling:	Water Cooling	Weight:	700kg
Warranty:	12 Month	Key Words:	Hot Plate Vulcanization
Highlight:	rubber tensile testing machine , rubber testing equipments

30T SKD Alloy Press Material Rubber Hot Plate Vulcanization Hydraulic Press Machine

Product Overview

The 30T SKD Alloy Press Material Rubber Hot Plate Vulcanization Hydraulic Press Machine is designed for precision rubber testing and production preparation. This hydraulic press applies controlled pressure and temperature to casting molds clamped between electric-heating flat plates, enabling material shaping, testing, and serving as the foundation for mass production ingredient formulation.

Technical Specifications

Parameter	Specification
Product Name	Hydraulic Rubber Plate Vulcanization Press Machine
Capacity	10~50 ton selectable
Temperature Range	Room temperature ~300℃
Temperature Controller	LED Indicator, press key set input, value indicate output
Timer	LED display, time range 0.1S~99min~9.9hr
Heating Type	Electrical Heating module
Hot Pressure Plate	300×300mm
Cold Pressure Plate	300×300mm
Distance of Pressure Plate	100mm
Pressure Material	SKD chromium-molybdenum alloy
Pressure Surface	Mirror chrome plated
Cooling Temperature Scope	Room temperature ~+5℃
Cooling Type	Tap water cooling/compressor cooling water (optional)
Oil Pressure System	The proportion hydraulic pressure current capacity loop circuit control system, the GPY oil pump driver high performance electroencephalographic matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can pre-select one, two times pressure and time.
Oil Cylinder Stroke	Max 200mm
Oil Cylinder Speed	11mm/s
Pressure Gauge	0~350kg/sq.cm
Power	10.6HP
Dimension (W×D×H)	1000×500×1500 mm
Power Supply	AC380V, 20A
Weight	About 658kg
