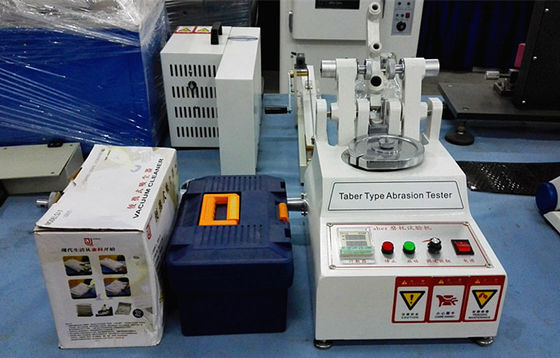

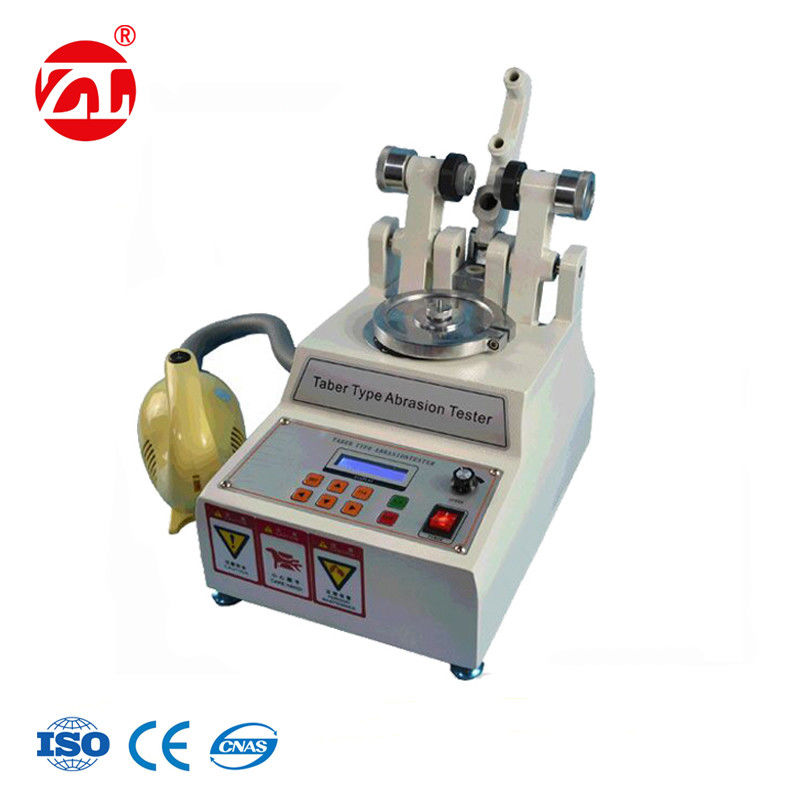

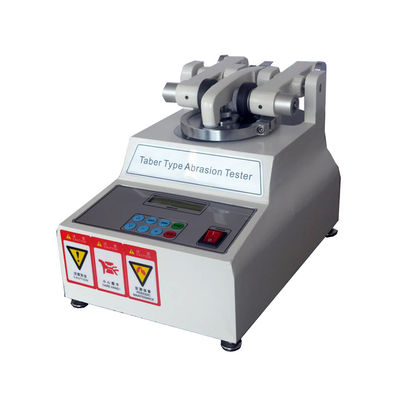

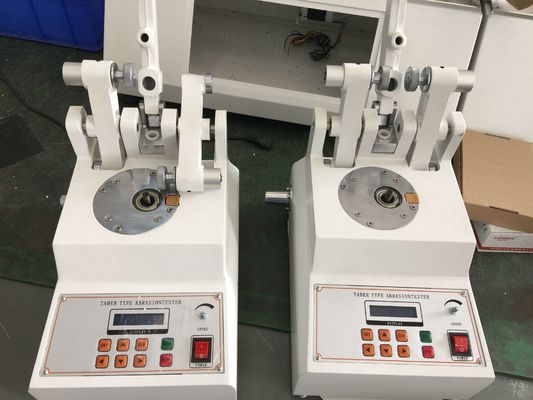

ISO-5470 Rubber / Leather Testing Machine For Taber Abrasion Test

ISO-5470 Rubber / Leather Testing Machine For Taber Abrasion Test​

Applicable industry:

Rubber Taber Abrasion Tester used in testing the performance of leather products, such as suitcases,

carpets, cardboard, clothing, glass, plastic coating, ceramic tile, metal plating, paints, varnishes, decorative sheets, high-pressure sheets, plastics, textiles, flexible floor mats, traffic paint, anodizing layer, blankets, electronic components, decorative plates, wax, label, leather, dental materials, car ornaments, resin,furniture, and scientific research labs; commodity inspection, arbitration, and technical supervision department.

Corresponding standard:

Din 53754 Leather Rubber Taber Abrasion Tester meet DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044, D3884, ISO-5470

Machine Specifications:

Tester summary:

Rubber Taber Abrasion Tester applied to do the test of wear-resistant in skin, leather, cloth, paint, paper,

flooring, plywood, glass and natural rubber. The method is using the standard knife cutting the specimen,

and then using the regulated models of grinding wheel with loading weight to be abrased, Specimen to be

removed after rotation to reach a certain number, observe the condition of the specimen or compare the

weight with the previous materials, For the choice of grinding wheel models: H18, H22, CS17, S32, S33.
