ISO Tumbling Barrel Drop Impact Test Equipment With 500mm Drop Height

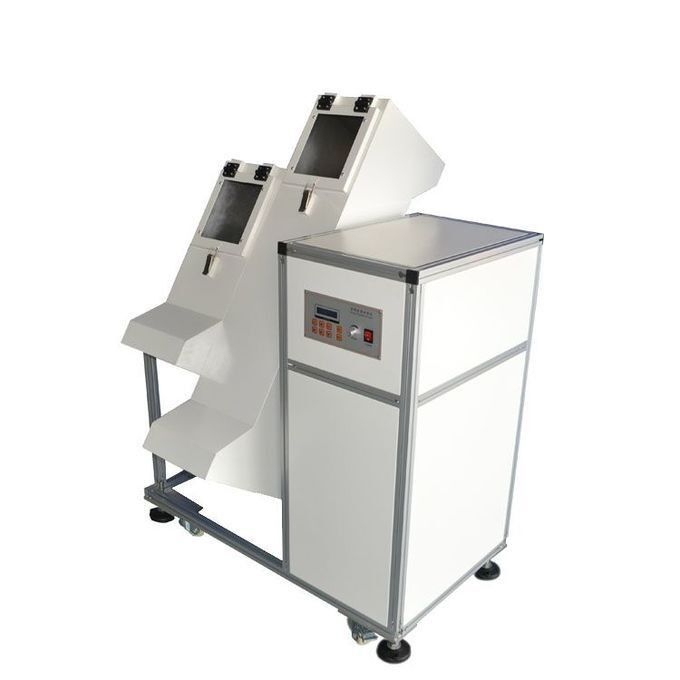

Large Image : ISO Tumbling Barrel Drop Impact Test Equipment With 500mm Drop Height

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1610

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union,
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Test Amount:	2 Set Or 4 Set
Drop Width:	350mm	Drop Height:	500mm
Test Speed:	5~20 Times /min	Warranty:	1 Year
Highlight:	phone testing equipment , mobile testing equipment

ISO Tumbling Barrel Drop Impact Test Equipment With 500mm Drop Height

IEC60068 Tumbling Barrel Drop Tester for Laptop / Computer

The IEC60068 Tumbling Barrel Drop Tester is designed for continuous rolling random drop tests inside 0.5m or 1m height barrels, specifically engineered for electronic products and components such as connectors and plugs.

Application

This equipment performs continuous rolling random drop tests for electronic products and components including connectors, plugs, and similar parts within barrels positioned at 0.5m or 1m heights.

Compliance Standard

IEC60068-2-32

Technical Specifications

Parameter	Specification
Model	ZL-1610 Tumbling Barrel Drop Tester
Test Amount	2 set or 4 set
Drop Width	350mm
Drop Height	500mm
Test Speed	5~20 times/min
Test Cycle	1~999,999 times (configurable)
Dimensions (W×D×H)	1250×1500×1680mm
Weight	250kg
Power Supply	AC220V 50Hz 5A or as specified by user
