Ball Drop Impact Test Machine , DC Electromagnetic Control dropTest Equipment

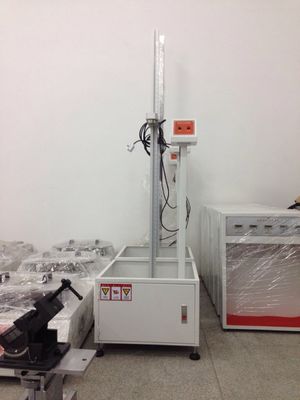

Large Image : Ball Drop Impact Test Machine , DC Electromagnetic Control dropTest Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1603

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Max. Height:	2M
Steel Ball Weight (optional):	JIS Standard 112, 198, 225, 357, 533, 1042, 2280g	Weight:	About 50Kg
Dimension ( W X D X H ):	400 450 2200mm	Warranty:	12 Month
Highlight:	mobile testing equipment , mobile phone testing machine

Ball Drop Impact Test Machine, DC Electromagnetic Control Drop Test Equipment

Product Overview

Ball drop impact test machine is designed to measure impact resistance by dropping specified steel balls from predetermined heights. This DC electromagnetic-controlled equipment is ideal for testing materials including ceramic, acrylic, glass, plastic, and similar substances.

Applications

Specifically designed for impact resistance testing of laptops, computers, and various material components.

Ceramic materials
Acrylic components
Glass products
Plastic materials
And similar industrial materials

Technical Specifications

Model	Ball drop impact test machine
Maximum Height	2 meters
Dropped Ball Control	DC electromagnetic control
Steel Ball Weight (Optional)	JIS Standard: 112, 198, 225, 357, 533, 1042, 2280g Standard GB/T14485: 454g, 761g, 1053g, 1735g
Dimensions (W × D × H)	400 × 450 × 2200mm
Weight	Approximately 50Kg
Power Requirements	AC220V 50Hz 3A or as specified by user
