Heat Resistance Contact Universal Material Testing Machine For Sole Material

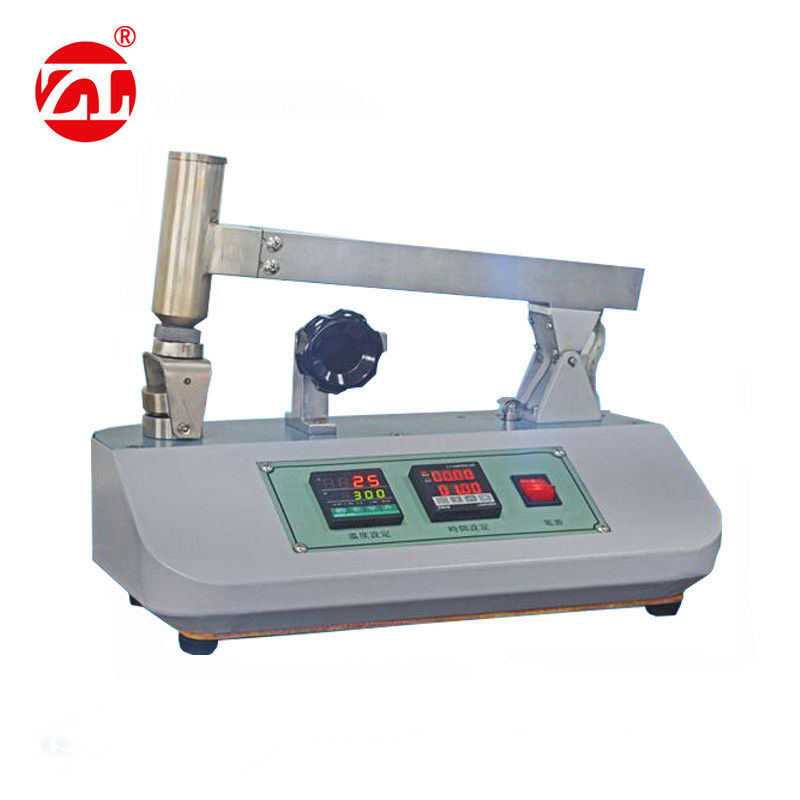

Large Image : Heat Resistance Contact Universal Material Testing Machine For Sole Material

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-7055

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Heat Resistance Contact Universal Material Testing Machine For Sole Material is packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Product Name:	Heat Resistance Contact Universal Material Testing Machine For Sole Material	Power:	220v 50hz
Specimen:	70×30×3-7mm (soles)	Test Temperature:	100-300 Degrees
Self-calibration Platform Diameter:	40mm	Load:	(1200±50)g
Warranty:	12 Month	Key Words:	Heat Resistance
Highlight:	shoes test machine , leather measuring machine

Shoes Material Heat Resistance Contact Test Equipment

Equipment description:

This machine is used to test the sole material (including rubber, polymer) of the high temperature capability. The sample and the heat source (heated metal block) at a fixed pressure contact for about 60 seconds, observe the specimen surface damage degree , Such as softening, melting, cracking, etc., according to the standard to determine whether the test specimen is qualified.

Meet the standard:SATRA TM49, EN344, LD32, GB/T20991-2007, ISO20344

Technical parameters:

Specimen	70×30×3-7mm (soles)
Test temperature	100-300 degrees
self-calibration platform diameter	40mm
Load	(1200±50)g
Volume	(300x18.5x30)mm
Weight	about 14kg
Power supply	AC220V

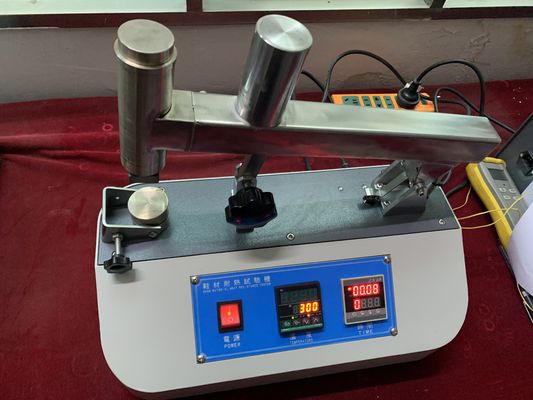

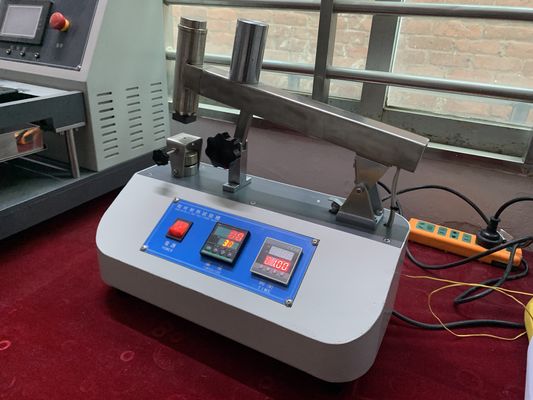

Heat Resistance Contact Universal Material Testing Machine For Sole Material 0

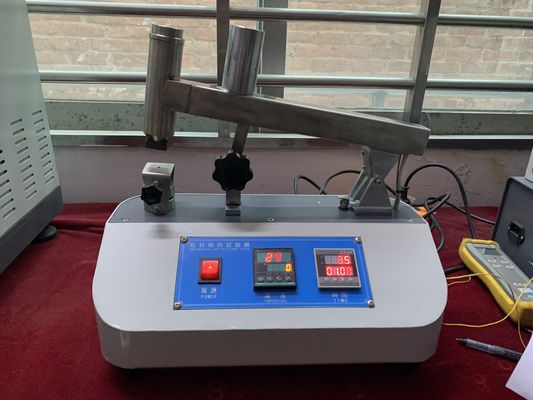

Heat Resistance Contact Universal Material Testing Machine For Sole Material 1
