ISO 17707 Leather Shoes Material Flexing Resistance Testing Machine

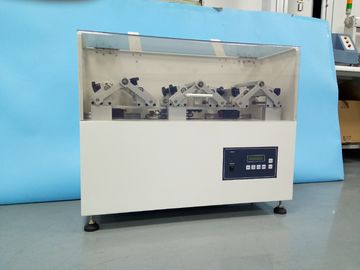

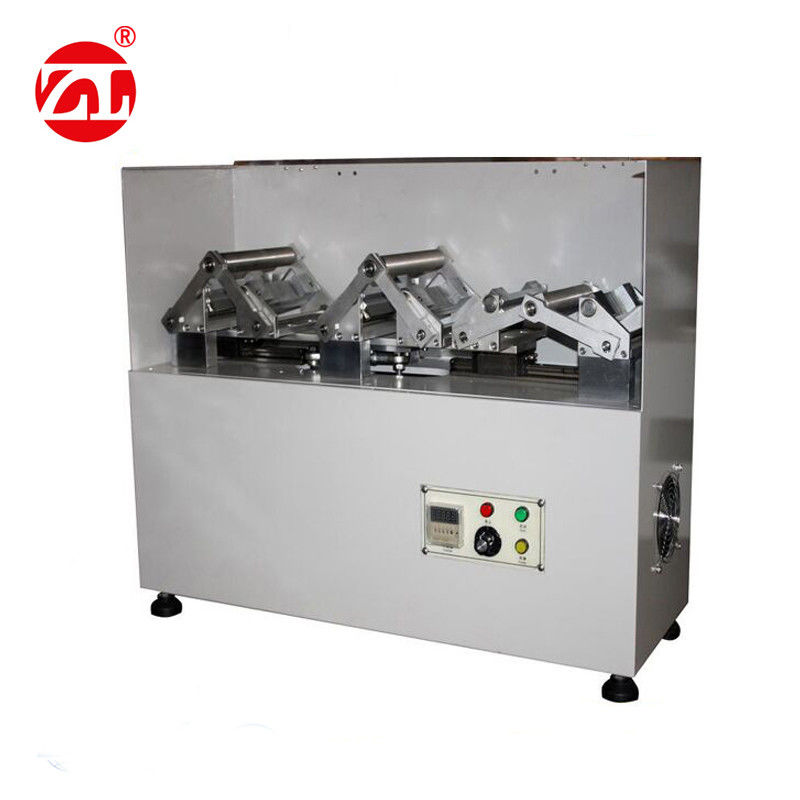

Large Image : ISO 17707 Leather Shoes Material Flexing Resistance Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-7041

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Sampling:	3pcs
Flexing Angle:	90°	Flexing Speed:	125-150CYCLES/MIN
Width Of The Grips:	144MM	Counter:	LCD 0-999999
Highlight:	shoes test machine , leather testing equipment

ISO 17707 Leather Shoes Material Flexing Resistance Testing Machine

Leather Shoes Material Testing Machine, Flexing Resistance Leather Tester

The Whole Shoes Sole Flexing Test Machine is designed to determine the resistance of materials to cut growth during repeated flexing. This equipment is particularly applicable to outsoles of footwear, including various sole constructions. The testing process involves using a cutting tool to pierce the specimen between the cleats at three points along the line of maximum bending stress. Through specified speed and 90° bending actions, the machine inspects cut growth with precise measurement capabilities.

Technical Specifications

Parameter	Specification
Sampling	3 pieces
Flexing Angle	90°
Flexing Speed	125-150 cycles/min
Width of the Grips	144 mm
Counter	LCD 0-999999
Dimension (W×D×H)	100×53×30 cm
Weight	98 kg
Power	AC220V, 3A
