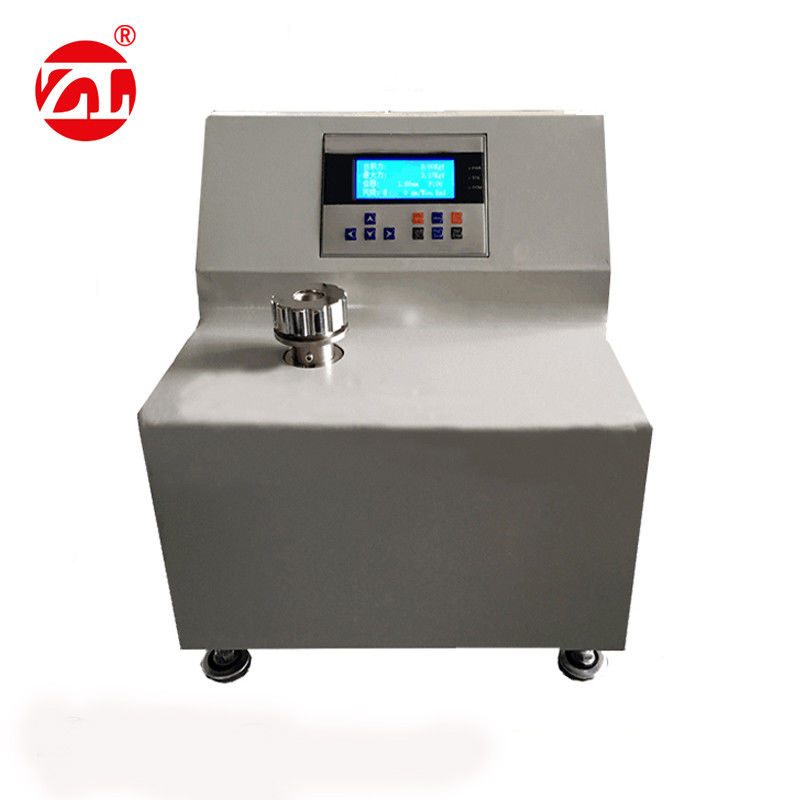

Microcomputer Leather Cracking Testing Machine Test The Anti - Cracking Index

Large Image : Microcomputer Leather Cracking Testing Machine Test The Anti - Cracking Index

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-7025

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Load Capacity:	1000 N
Unit:	Kgf / N / LB	Resolution:	1 / 50000
Speed:	12 Mm / Min	Ball Diameter:	Φ6.25mm
Scale Range:	0 ~ 20mm	Warranty:	12 Month
Highlight:	shoes test machine , leather measuring machine

Microcomputer Leather Cracking Testing Machine

Product Overview

ZL-7025 Microcomputer Leather Cracking Tester is designed to test the anti-cracking index in thin leather and upper leather. The device first fixes the specimen's periphery, then makes the ball rise from the leather's inside at a speed of approximately 12mm per minute. When the leather withstands a strength of 800N, the value of rising height represents the measured crack value.

Technical Standards

Corresponds to QBT 2712-2005 standard for measuring leather strength and extended height, specifically for spherical crack testing.

Applications

Applied to test leather performance across multiple industries including:

Shoes industry
Clothing industry
Luggage and handbag industry
Research laboratories
Commodity inspection departments
Arbitration and technical supervision departments

Technical Specifications

Parameter	Specification
Product Name	ZL-7025 Microcomputer Leather Cracking Tester
Load Capacity	1000 N
Unit	kgf / N / LB
Resolution	1 / 50000
Inductive Method	Force sensor (from United States)
Diameter of Specimen after Fixation	Φ25mm
Speed	12 mm/min
Ball Diameter	Φ6.25mm
Scale Range	0 ~ 20mm
Volume (W × D × H)	44 × 33 × 45 cm
Power	220V, 50HZ
