Product Details:
Payment & Shipping Terms:
|
| Power: | 220v 50hz | Brush Speed: | (85 ± 5) R / Min |
|---|---|---|---|
| Test Samples: | 1 Finished Shoes | Speed Of The Brush: | (20 ± 2) Uqw / Min |
| Water Flow Speed: | (0.50±0.1) L/min | Flow Meter: | 100~1000mL |
| Nozzle: | 3 Groups | Warranty: | 12 Month |
| High Light: | leather testing equipment,leather measuring machine |
||
Introduction:

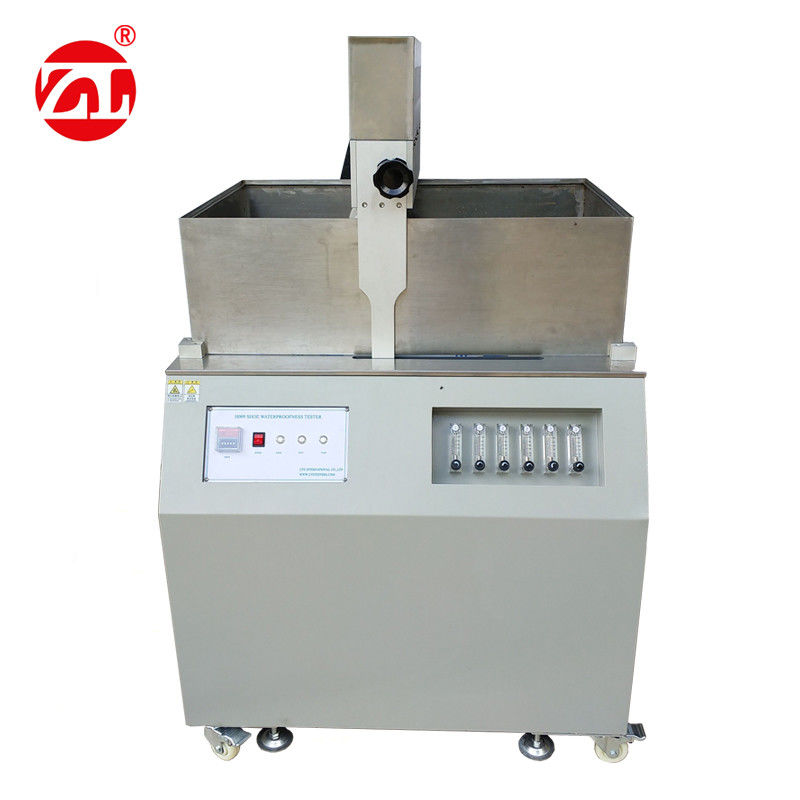

The finished shoes GB standard static waterproof testing machine is mainly used for the determination of the waterproof performance of the finished product. In a certain depth of water, the finished shoes are subjected to the mechanical action of rotating the wet brush on both sides, and the range of water penetration is checked to determine whether the waterproof performance of the product is qualified. .
Standard: GB/T20991-2007, 5.15.2
Technical specifications:
| brush speed | (85 ± 5) r / min |
| at the same time test samples | 1 finished shoes |
| the lateral speed of the brush | (20 ± 2) uqw / min |
| Water flow speed | (0.50±0.1) L/min |
| flow meter | 100~1000mL |
| nozzle | 3 groups |
| nozzle spacing | 50mm |
| timer | 0 ~ 999H any setting, LCD display |
| voltage | AC220V |
| the volume | 1000 * 1230 * 960mm |
| weight | 285kg |
Machine configuration:
1. Standard brush 2
2. 1 set of water supply device
3. To do this test, you need to use the electronic scale, accurate to 0.1g, mainly used for weighing after drying and water penetration inspection after testing, the electronic scale customers bring their own!
4. Power cord 1
5. L-wrench 1 set
