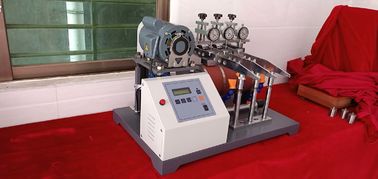

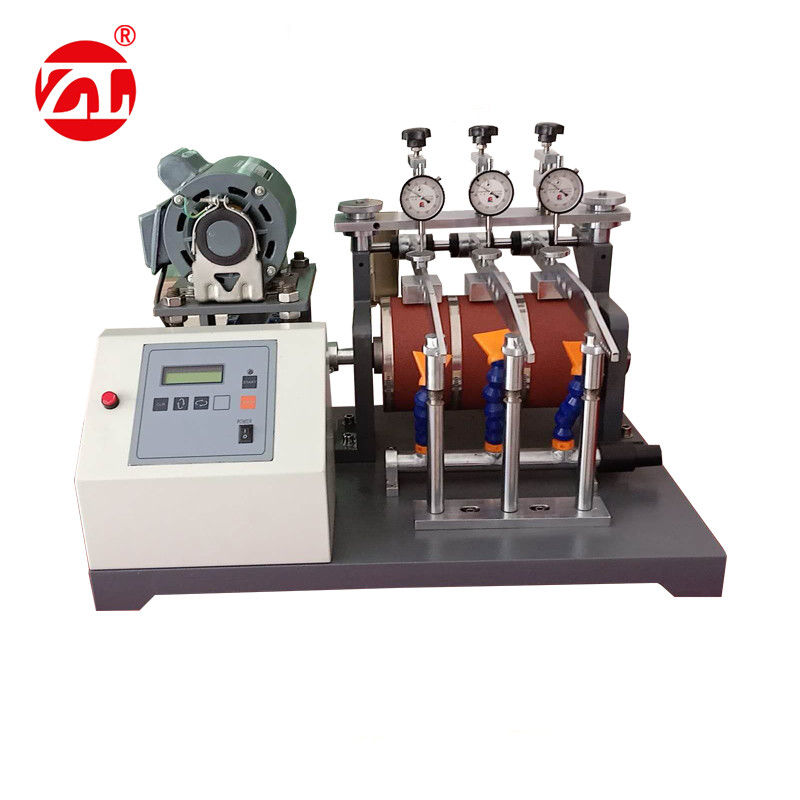

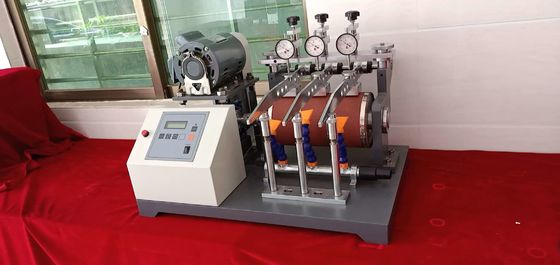

ASTM-D1630 NBS Shoe Sole Abrasion Resistance leather testing machine

Large Image : ASTM-D1630 NBS Shoe Sole Abrasion Resistance leather testing machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-7060

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Standards:	ASTM-D1630
Specimen Size:	25.4mm * 25.4mm	Roller Diameter:	150mm
Roller Speed:	45 + / - 5RPM	Load:	22N
Sand Paper Size:	40 #	Warrranty:	12 Month
Highlight:	shoes test machine , leather measuring machine

ASTM-D1630 NBS Shoe Sole Abrasion Resistance Leather Testing Machine

Product Overview

This instrument is specifically designed for determining the abrasion resistance of rubber or plastic shoe soles, providing reliable testing results for quality control and material evaluation.

Application

Primarily used for the determination of abrasion resistance of rubber or plastic shoe soles.

Standards Compliance

Meets ASTM-D1630 testing standards.

Technical Specifications

Parameter	Specification
Specimen Size	25.4mm × 25.4mm
Roller Diameter	150mm
Roller Speed	45 ± 5 RPM
Load	22N
Sand Paper Size	40 #
Dimensions	68 × 51 × 47cm
Weight	83kg
Power Supply	AC220V, 3A

Standard Configuration

1 vacuum cleaner
1 standard tool die
3 pieces of standard glue
2 pieces of standard sandpaper
1 hand brush

Tag:

Contact Person: Ms. Fiona Zhong

Tel: +86 135 3248 7540
