Product Details:
Payment & Shipping Terms:
|
| Product Name: | EN ISO 20344 Finished Shoes Heat Insulation Leather Testing Machine | Power: | 220v 50hz |
|---|---|---|---|
| Standards: | EN ISO 20344 | Sandbox Size: | 400 × 400 × 80 Mm |
| Sandy Height: | ≥5 Cm | Sand Size: | 0.3 ~ 1.0 Mm |
| Warranty: | 12 Month | Key Words: | Heat Insulation |
| High Light: | shoes test machine,leather testing equipment |
||

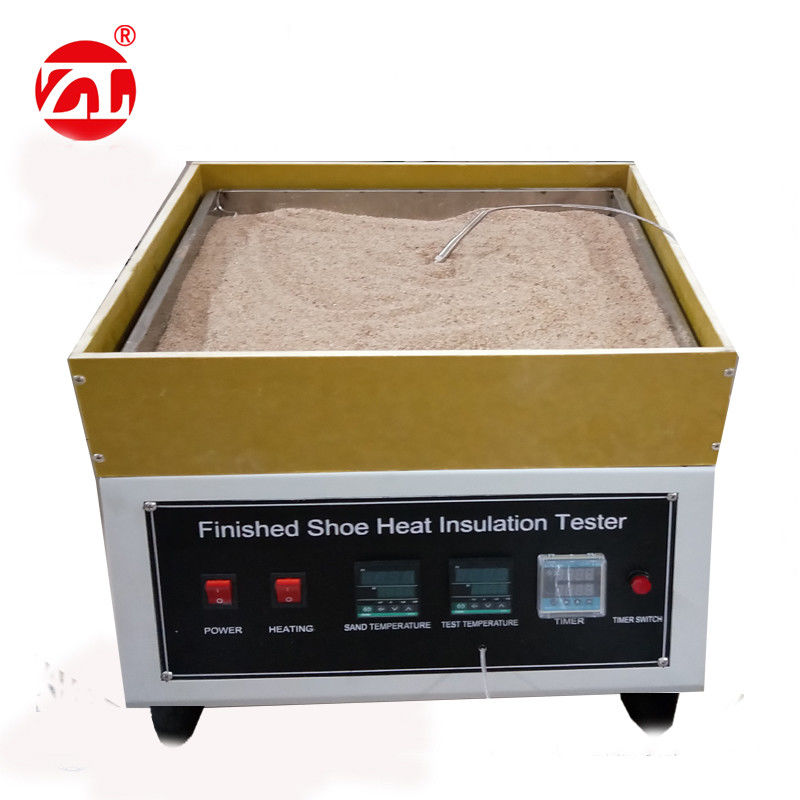

Tester Introduction:
The instrument used to test the entire shoe, sole material (such as rubber, polymer) the ability of high temperature insulation.
ZL-7051 Finished Shoe Heat Insulation Tester (1).p...
Test principle:
The sandbox is heated to 150 ° C, so that the sand covers the contact area between the sample upper and the sole, and records the temperature change of the insole within 30 minutes to the nearest 0.5 ° C.
Technical Parameters:
| Sandbox size | 400 × 400 × 80 mm |
| Sandy Height | ≥5 cm |
| Sand size | 0.3 ~ 1.0 mm |
| Test temperature | 150 ± 5 ℃ or 250 ± 5 ℃ |
| Heat transfer medium | dia 5 mm steel ball, the total mass of 4 kg |
| Copper / copper-nickel thermocouple | Weld a copper disc of 2 ± 0.1 mm in diameter and 15 ± 1 mm in diameter |
| Temperature measurement and recording device | with the use of copper discs, with temperature compensator |
| Temperature control accuracy | ± 2 ℃ |
| hot plate maximum temperature | 250 ℃ |
| Heating power | 2.5 KW |
| Dimensions | about 500 × 500 × 360 mm (L × W × H) |
| Weight | about 53 kg |
| Power | AC 220V, 5 A. |
Meeting standards: EN ISO 20344
