CNS 1083 Zip Reciprocating Endurance Leather Testing Machine Test

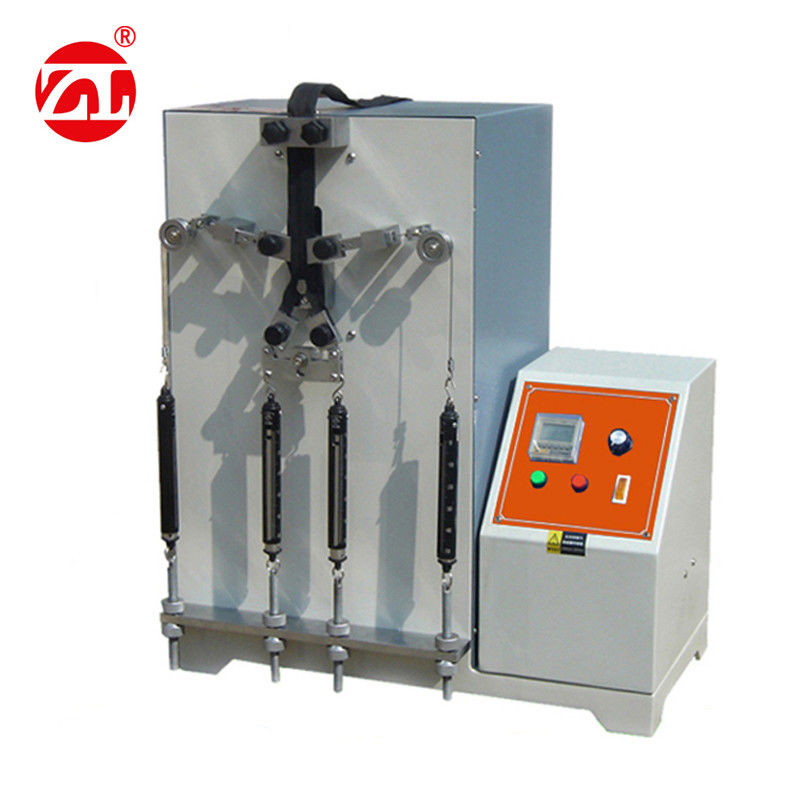

Large Image : CNS 1083 Zip Reciprocating Endurance Leather Testing Machine Test

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-7010

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	3-7 days
Payment Terms:	T/T, T/T, L/C, Western Union
Supply Ability:	200 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Vertical Fixture Width:	25 Mm
Vertical Fixture Weight:	0.28~0.34 Kg	Two Vertical Fixture Distance:	6. 35 Mm
Reciprocating Stroke:	75 Mm	Motor:	1/4 HP
Highlight:	shoes test machine , leather measuring machine

CNS 1083 Zip Reciprocating Endurance Leather Testing Machine

Equipment Overview

The Zip Reciprocating Endurance Test Machine evaluates zipper durability under horizontal and vertical forces, testing their ability to withstand repeated pulling cycles. The machine operates at a constant speed of 30rpm and automatically stops after completing the required number of pull cycles, allowing for inspection of zipper damage.

Compliance Standards

This testing machine meets the following industry standards:

CNS 1083
QB/T 2171

Application Industries

Suitable for quality testing in:

Footwear Industry
Garment Industry

Technical Specifications

Parameter	Specification
Model	Zip Reciprocating Endurance Test Machine
Vertical Fixture Width	25 mm
Vertical Fixture Weight	0.28~0.34 kg
Two Vertical Fixture Distance	6.35 mm
Reciprocating Stroke	75 mm
Reciprocating Frequency	30 cpm
Specimen Closed Angle	60°
Specimen Opening Angle	30°
Counter	6-digit
Motor	1/4 HP
Power Supply	1ø, 220V, 50Hz
Volume (W×D×H)	Approximately 30×55×68 cm
Weight	Approximately 35 kg
