Product Details:
Payment & Shipping Terms:
|
| Power: | 220v 50hz | Abrasion Stroke: | 40 ± 0.2M |
|---|---|---|---|
| Horizontal Displacement: | 4.2mm / Rotate | Stroke: | 20m/40m Presetting |
| Idler Wheel Speed: | 40 ± 1cpm | Load: | 2.5 ± 0.1N,5 ± 0.1N,10 ± 0.1N |
| Specimen Size: | Dia 16mm, Thickness At Least 6mm | Warranty: | 12 Month |
| High Light: | leather testing equipment,leather measuring machine |
||
Function:

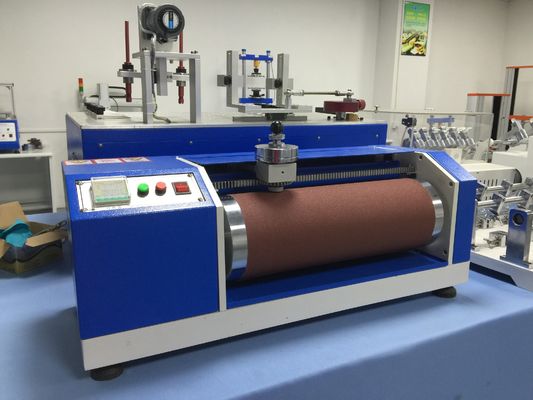

DIN Abrasion Wear Test Machine is to test the friction of surface by a particular piece of sandpaper,
After friction for a certain time, and then assess the condition of material surface weight, volume and
thickness, from this standard to assess the abrasive nature of materials. .
DIN Abrasion Wear Resistance Test Machine is a high efficiency, good reproduction and easy to operate,
applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit
belt, sole, synthetic leather, leather and others
Corresponding standard:
DIN Abrasion Wear Resistance Test Machine meet GB/T9867, GB/T 20991, GB/T 26703, EN ISO 20344, ISO 4649, DIN 53516, BS 903:A9, SATRA TM147
Applicable industry:
DIN Abrasion Wear Resistance Test Machine applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories, commodity inspection, arbitration and technical supervision departments.
Technical parameters :
| Product Name | DIN Abrasion Wear Resistance Test Machine |
| dler | 150mm |
| abrasion stroke | 40 ± 0.2M |
| Horizontal displacement | 4.2mm / rotate |
| stroke | 20m/40m presetting |
| grips lateral displacement | 4.2 ± 0.04rpm |
| Idler wheel speed | 40 ± 1cpm |
| Measuring way | Auto/Manual presetting |
| load | 2.5 ± 0.1N,5 ± 0.1N,10 ± 0.1N |
| Specimen size | dia 16mm, thickness at least 6mm |
| Emery cloth Specification | 60 #, seam is less than 2mm |
| sand paper | 60 Germany |
| Dimension | 95*66*31cm |
| Power | 220v 50hz |
Machine Specifications:
| Test-arm weight | 250 ± 5 (g) |
| Testing Load | 2.5N, 7.5N |
| Diameter abrasive wheel | dia 150 ± 450L (mm) |
| emery cloth | 60 #, 425 ±473 ±1.5 (mm) |
| Wheel Speed | 40 ± 1RPM |
| Shift screw | 6 teeth / inch |
| Limit rotation | 85 rotate |
| Set rotation | 84 rotate (about 40M) |
| Return form | Electric automatic reset |
| Drive Power | 40W; 1 / 30 |
| Power | 220V 50HZ |
| Machine Dimensions | 600 ±330 ±420 (mm) |
| Machine Weight | 75kg |
