Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | Guangdong, China (Mainland) | Brand Name:: | ZL |
|---|---|---|---|
| Model Number:: | ZL-8001 | Power:: | Electronic |
| Usage:: | Universal Testing Machine | Max Load:: | 5KN,1T,2T |
| Accurate Grade:: | 1 % /0.5 % | Effective Measuring Range:: | Ing Range: 0.2%~100%(1grade)/0.4%~100%(0.5 Grade) |
| Measuring Accuracy:: | Display The Value ±1%/Display The Value ±0.5% | Effective Tensile Strock:: | 800mm;1000mm;1200mm |
| Effective Testing Width:: | 390mm | Machine Size:: | 80*55*220cm |
| High Light: | universal test equipment,tensile test machine |
||
1. Equipment summary:

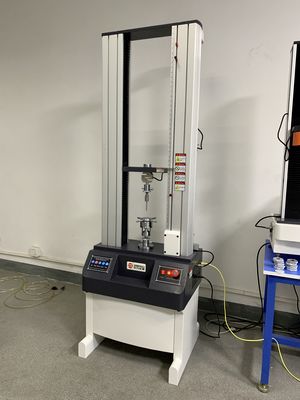

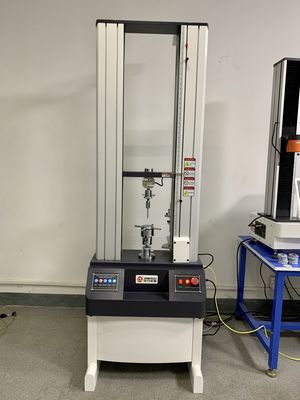

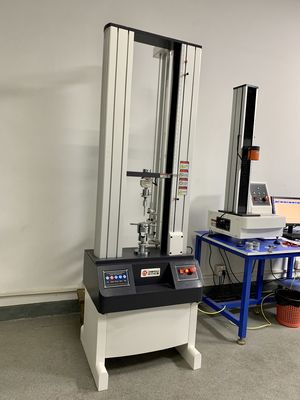

ZL-8001 2T Computer Universal Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control, it also can be tested the constant-velocity loading, constant- velocity displacement. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 1ton.
2.Main functions:
This test machine is applied to test the flexible material with large deformation. such as rubber, plastics, leather and others to complete the test of tensile, tear, adhesive strength, peel and other tests, it is equipped with large deformative extensometer which has the specialized terminology used in measurement of specimen, suitable for testing large deformation of materials.
3.Corresponding standard :
<<GB/T16491-1996 electronic universal testing machine>>
4.Technical parameter:
| model | ZL-8001 2T Computer Universal Testing Machine |
| Max load | 5KN,1ton,2 ton |
| Accurate grade | 1 % /0.5 % |
| Effective measuring range | 0.2%~100%(1grade)/0.4%~100%(0.5 grade) |
| Measuring accuracy | Display the value ±1%/Display the value±0.5% |
| Tester resolution | Max load 1/200000,regardless of inside and outside,constant the resolution |
| Load sensor | Basic configuration:sensor(max load): one; Extended configuration:can add more sensors |
| Effective testing width | 390mm(can be widened according to customer’s requirement ) |
| Effective Tensile stroke | 800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
| Range of testing speed | 0.001~200mm/min ; 500mm/min (1000mm/min is option) |
| Accuracy of displacement measurement | Tolerance: ±0.5%/ tolerance: ±0.2% |
| Deformation of measured system(according to the requirements) | Min span :10mm, Max range of deformation :800mm; Extended deformation :Min span: 25mm,50mm,100mm, range of deformation :5mm,10mm,25mm |
| Accuracy of measured deformation | Tolerance :±0.5% (according to requirement of customer to choose the larger or small deformation) |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow two speeds to control,can jog |
| Return back | Manual or automatic operation,After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 80x55x220cm(length*width*height) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Power supply | 220V,50HZ,0.4kw |
| Machine weight | 250kg |
| Units | Kg, N, LB, TON, can be exchanged |
Download Brief:
ZL-8001A Computer servo testing machine.pdf
