Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | Guangdong, China (Mainland) | Brand Name:: | ZL |
|---|---|---|---|
| Model Number:: | ZL-8002 | Power:: | Electronic |
| Usage:: | Strength Testing Machine | Max Load:: | 100-5000kg |
| Tester Resolution:: | Max Load 1/200000 | Effective Tensile Stroke:: | 800mm |
| Effective Testing:: | 400mm | Testing Speed:: | From 0.001 To 500mm/min |
| Machine Size:: | 1200* 530* 1800mm | Inside Space:: | 200 *300 *500mm |
| Weight:: | 300KG | ||
| High Light: | universal test equipment,tensile strength testing machine |
||
Equipment Summary:

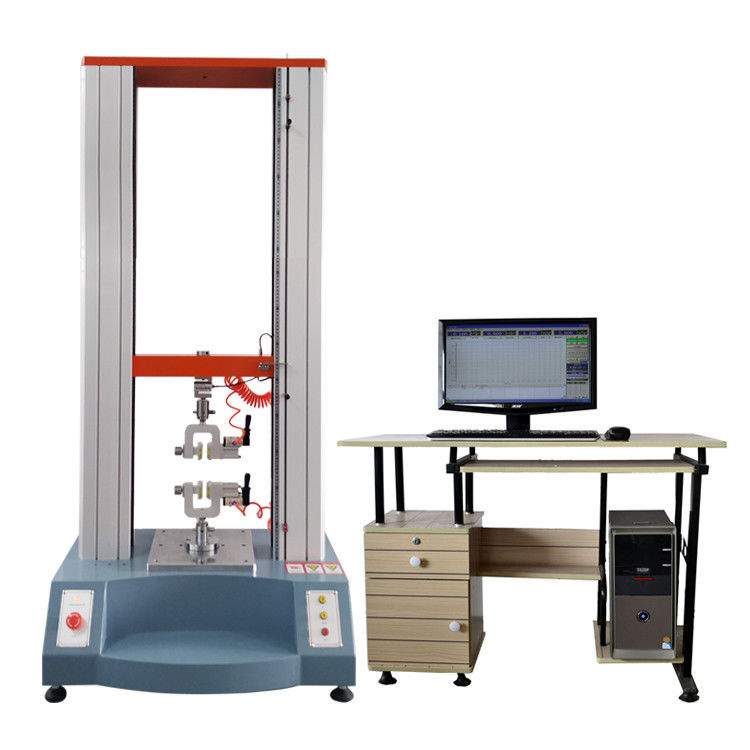

ZL-8002 5KN Tensile Bending Compression Computer Servo Testing Machine is a company designed to aluminum alloy as the main machine, it is not only small, widely used ,less space, elegant appearance, and with rolled base station, makes it all very convenient. In particular, it suitable for production line control of product quality testing equipment. This series is mainly used in the test load is less than 5000KG non-metallic and metallic materials within the test.
ZL-8002B deskop computer type servo tensile testin...
Main Features:
ZL-8002 5KN Tensile Bending Compression Computer Servo Testing Machine is suitable for all kinds of textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and products industry to do tensile, compression, bending, shear, peel (90 degrees and 180 degrees), tearing, two extensions (need to reprovision extensometer ) and other tests to determine product quality.
Meet the Criteria:
"GB/T16491-1996 electronic universal testing machine"
Technical Parameter:
| Model | ZL-8002 5KN Tensile Bending Compression Computer Servo Testing Machine |
| Max load | 100,200,500,1000,2000,5000kg (optional) |
| Accurate grade | 1 grade /0.5 grade |
| Effective measuring range |
Force from 0.2% to 100% (1grade) / from 0.4% to 100% (0.5 grade) |
| Measuring accuracy | Tolerance ±1% / tolerance ±0.5% |
| Tester resolution | Max load 1/200000, and constant resolution |
| Load sensor |
Basic configuration sensor max load: from four sensors to choose one |
| Effective tensile stroke | 800mm(can be widened according to customers requirement ) |
| Effective testing width | 400mm(can be widened according to customers requirement ) |
| Testing speed | From 0.001 to 500mm/min |
| Accuracy of displacement measurement | Tolerance: ±0.5% / tolerance: ±0.2% |
| safety | Electronic-limit protection |
| Testing platform moving device | Fast /slow ( two speeds to control), can jog |
| Return Back |
Manual or automatic operation, After the test, the moving iron return to initial position with the highest speed by manual or automatic operation |
| Overload protection | Overload 10%,automatic protection |
| fixture | A set of tensile fixture |
| Machine size | 1200*530*1800mm(L*W*H) |
| Power system | Panasonic AC Servo Motor + Driver + high-precision ball screw |
| Temperature range | From normal temperature to 200 degree |
| Temperature display | Digital display |
| Inside space | 200*300*500mm (W*L*H ) |
| Cooling system | Compression from France |
| Power supply | 220V50HZ or according to the requirement |
| Power |
0.75KW ( depending on different demand of force, using different motor) |
| weight | 300 KG |
| Units |
KG,N,LB, TON can be exchanged |
