JIS D0207-f2 Sand and Dust Test Chamber Environmental Simulated for Electronic Test

JIS D0207-f2 Sand and Dust Test Chamber Environmental Simulated for Electronic Test
JIS D0207-f2 Sand and Dust Test Chamber Environmental Simulated for Electronic Test
video play

Large Image :  JIS D0207-f2 Sand and Dust Test Chamber Environmental Simulated for Electronic Test

Product Details:
Place of Origin: Guangdong,China
Brand Name: Zhongli
Certification: ISO,CE
Model Number: ZL-6022
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: JIS D0207-f2 Sand and Dust Test Chamber Environmental Simulated for Electronic Test is packaged in wooden case.
Delivery Time: 10~15 days after order confirmed
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: JIS D0207-f2 Sand And Dust Test Chamber Environmental Simulated For Electronic Test Model: ZL-6022
Inner Box Size: (W600*D600*H600 Mm) Can Be Customized Outer Box Size: W1100 * D1300 * H1800 Mm
Control Method: Color Screen Touch Controller (Korea) Depending On Window Size: 400 X 400 Mm
Dust Blowing Method: Dust Blowing Down Talcum Powder Blowing Dust Concentration: 2kg ~ 4kg/3
Using The Power Supply: 220V 1.5KW
Highlight:

JIS D0207-f2 sand dust test chamber

,

electronic test environmental chamber

,

dust test chamber for electronics

JIS D0207-f2 Sand and Dust Test Chamber Environmental Simulated for Electronic Test



ZL-6022 Dust test machine.pdf

Environmental Test Chamber.pdf



IEC Standard Sand And Dust Test Chamber is designed according to GB4706, GB2423, GB7000.1, IEC60529, ect standards and meet the IPX5 and IPX6 dust test requirements. It is mainly used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.



Specifications



Test chamber dimension
All size Customized
Outer dimension
according to inner structure
Metal screen wire diameter
50um
Screen line space
75um
Environment temperature and humidity
15~45°C, 45~75%RH
Dust(talcum powder) concentration
2~4kg/m3
Test time
Dust test time set freely, 0~999.9hr
Test dust
Dry talcum powder or portland cement
Test standards
GB4706,GB2423,GB7000.1,IEC60529
Power
3ψ 4W+G 380VAC 50HZ

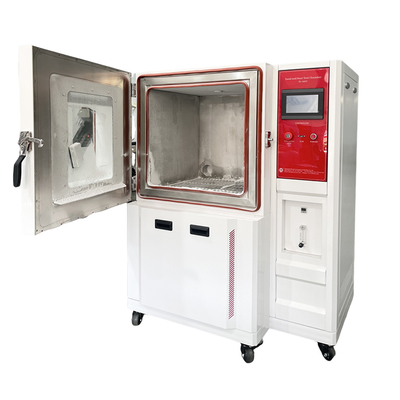

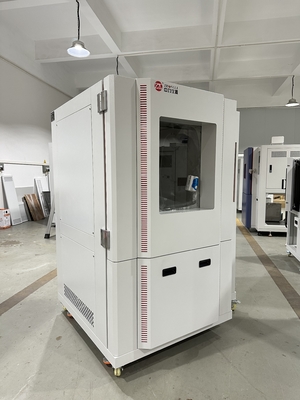

JIS D0207-f2 Sand and Dust Test Chamber Environmental Simulated for Electronic Test 0

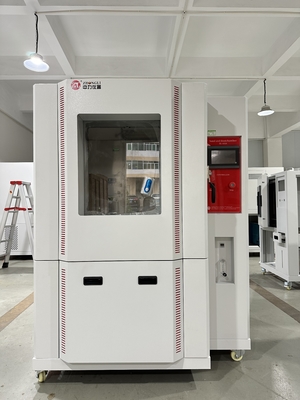

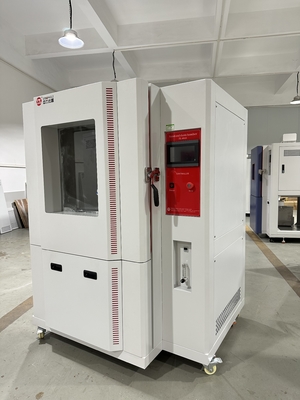

JIS D0207-f2 Sand and Dust Test Chamber Environmental Simulated for Electronic Test 1
