ASTM D4799 ASTM D4587 ASTM G154 QUV UV Aging Testing Chamber

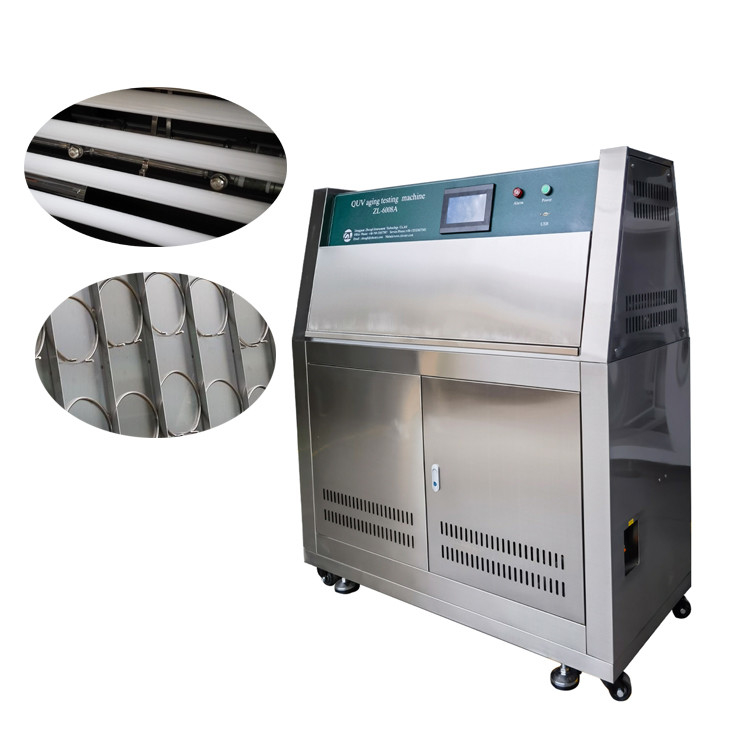

Large Image : ASTM D4799 ASTM D4587 ASTM G154 QUV UV Aging Testing Chamber

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6008

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM D4799 ASTM D4587 ASTM G154 QUV UV Aging Testing Chamber Price is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ASTM D4799 ASTM D4587 ASTM G154 QUV UV Aging Testing Chamber Price	UV Temperature:	From 50 ℃ To 75 ℃
Radiometer:	Adjust The Intensity Of UV Radiation ,Option	Volume:	137 X 53 X 136cm (W X D X H)
Weight:	136kg	Testing Capacity:	50 Piece（75 X 150mm)
Bulb Number:	UV Lamp 8，spare Lamp : 4	Key Words:	UV Aging
Highlight:	ASTM D4587 UV Aging Testing Chamber , ASTM G154 UV Aging Testing Chamber , ASTM D4799 UV Aging Testing Chamber

ASTM D4799 ASTM D4587 ASTM G154 QUV UV Aging Testing Chamber

This testing chamber simulates the damaging effects of sunlight, rain, and dew on materials. Using fluorescent ultraviolet UV lamps to replicate sunlight exposure and condensation systems to mimic rain and dew, the chamber subjects test materials to alternating cycles of light and moisture at controlled temperatures. The QUV UV Aging Testing Chamber can reproduce outdoor weathering effects that typically occur over months or years within just days or weeks, providing valuable data for material selection and formulation durability assessment.

Applications and Testing Capabilities

Simulates damaging effects of sunlight, humidity, and temperature on materials
Evaluates material aging including fading, gloss loss, strength reduction, cracking, peeling, chalking, and oxidation
Reproduces outdoor damage that occurs over months or years within days or weeks of testing
Fluorescent ultraviolet lamps simulate sunlight effects while condensation and water spray systems replicate rain and dew
Precise temperature control throughout testing cycles
Typical test cycles alternate between UV irradiation at high temperatures and dark, humid condensation cycles at 100% relative humidity
Ideal for paint coatings, automotive components, plastic products, wood products, adhesives, anodic oxide films, and more

Technical Specifications

Model	ZL-6008 QUV UV Aging Testing Machine
Temperature Range	RT+10℃～70℃
Temperature Uniformity	±3℃ Temperature fluctuation: ±0.5℃
Humidity Range	≥75%RH
Center Distance In Lamp Tube	65~70mm
Distance Between Test Product and Lamp Tube Center	55mm
Ultraviolet Tube	UVA-340 wavelength range 290-400nm (peak 340nm) UVB-313 wavelength range 280-320nm (peak 313nm)
Standard Test Piece	75*150mm / 24 pieces
Irradiation Intensity	0.30-1.1W/㎡/adjustable 340nm band (set via touch screen)
Irradiation Control	Intelligent irradiance control with real-time feedback, PID setting with automatic compensation
Compliant Standards	ASTM G154, ISO 4892-1, ISO 11507, ASTM D4329, GB/T 14522-93
