ISO 20653 IEC60529 IEC 6059 Rain Test Chamber With IPX3 IPX4 IPX5 IPX6

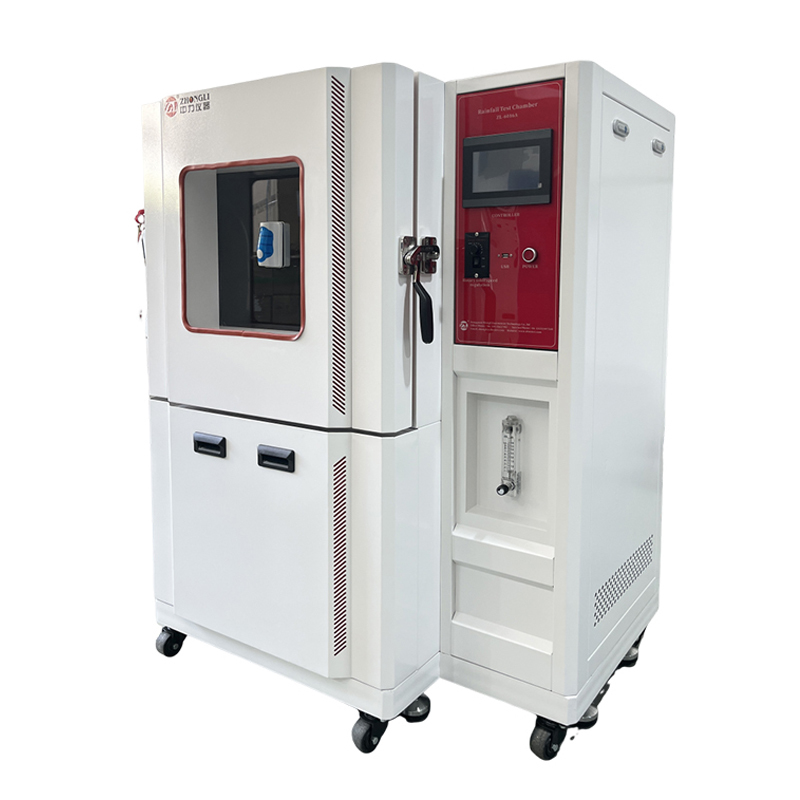

Large Image : ISO 20653 IEC60529 IEC 6059 Rain Test Chamber With IPX3 IPX4 IPX5 IPX6

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6016

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 20653 IEC60529 IEC 6059 Rain Test Chamber With IPX3 IPX4 IPX5 IPX6 is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISO 20653 IEC60529 IEC 6059 Rain Test Chamber With IPX3 IPX4 IPX5 IPX6	Specification Model:	ZL-6016
Inner Box Size:	W600xD600xH 600 Mm (Customized Inner Box Size Available)	Outer Box Size:	W1100xD800xH1800 Mm
Test Bench Speed:	1-5rpm Adjustable	Diameter Of Water Spray Ring:	400mm
Spray Hole Diameter:	0.8mm	Spray Hole Distance:	50mm Spacing
Highlight:	IPX6 rain test chamber , IEC60529 environmental test chamber , IPX3 IPX4 waterproof test chamber

ISO 20653 IEC60529 IEC 6059 Rain Test Chamber With IPX3 IPX4 IPX5 IPX6

Water Resistance Rain test Chamber Equipment Rain Water Spray Waterproof Testing Machine Price is according to IEC60529, IEC 60598, GB2423.37-89 (Test L:dust test methods), GB 4208-93 protective casing grade (IP code), GB/T 4942.2-93(protective casing grade of low-voltage apparatus), GB 7000.1-1996, GB 7001-1986(protective casing grade of lamps), DIN40050 and IP5K0.

Equipment Parameters
Specification Model	ZL-6016
Inner Box Size	W600xD600xH 600 mm (Customized inner box size available)
Outer Box Size	W1100xD800xH1800 mm
Inner Box Material	304 mirror finish stainless steel
Outer Box Material	304 brushed stainless steel
Depending on Window Size	400x400 mm
Test Bench Speed	1-5rpm Adjustable
Turntable Load	25KG
Diameter of Water Spray Ring	400mm
Spray Hole Diameter	0.8 mm
Spray Hole Distance	50mm spacing
Water Spray Pressure	Adjustable water flow as specified
Pendulum Diameter	16 mm
Test Time	1-999 minutes
Pendulum Angle	±45°, ±60°, ±90°, ±180° (adjustable)
Using the Power Supply	220V 1.5KW
