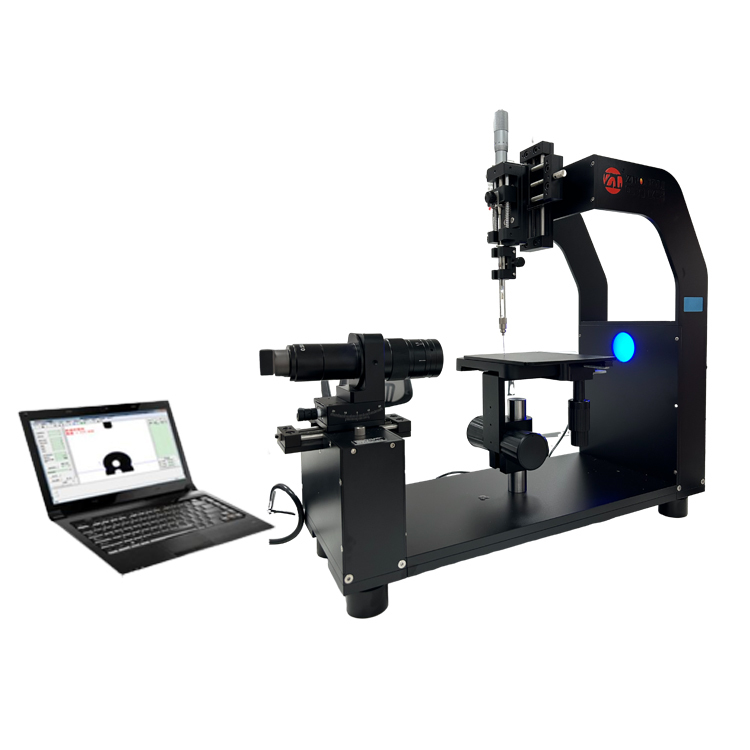

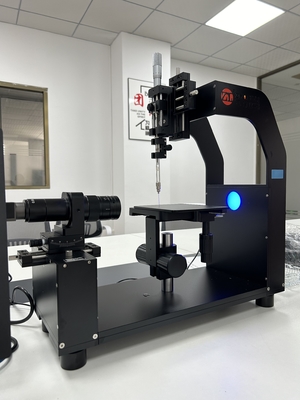

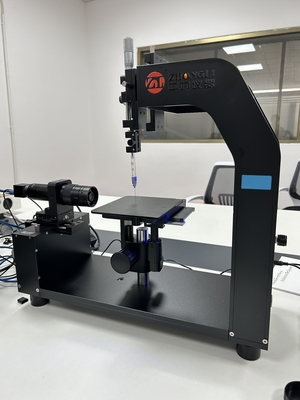

Contact Angle Measuring Instrument/Contact Angle Goniometer/Contact Angle Measurement

Large Image : Contact Angle Measuring Instrument/Contact Angle Goniometer/Contact Angle Measurement

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2823C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Contact Angle Measuring Instrument/Contact Angle Goniometer/Contact Angle Measurement is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Contact Angle Measuring Instrument/Contact Angle Goniometer/Contact Angle Measurement	Type:	Standard Type
Experiment Platform:	120*150mm	Platform Movement:	Manual
Platform Movement Range:	603580mm	Lens Magnification:	8 Times
Dropping Accuracy:	0.1μL	Wavelength:	450-480nm
Highlight:	contact angle measuring instrument with warranty , contact angle goniometer for rubber testing , contact angle measurement machine

Contact Angle Measuring Instrument/Contact Angle Goniometer/Contact Angle Measurement

Equipment Parameter Details
Overall Equipment Parameters
Model	ZL-2823A	ZL-2823C	ZL-2823B
Type	Basic Type	Standard Type	Scientific research type
*Size (LWH)*	425150415mm	560196525mm	760200640mm
Weight	6KG	11KG	21KG
Sample Platform System
Experiment Platform	120*150mm	120*150mm	160*200mm
Platform Movement	Manual	Manual	Manual (can be upgraded to automatic)
Platform Movement range	603580mm	603580mm	603580mm
Platform Tilt		Manual tilt platform (optional)	Manual tilt platform (optional)
Acquisition System
Camera	U2.0	U2.0	U3.0

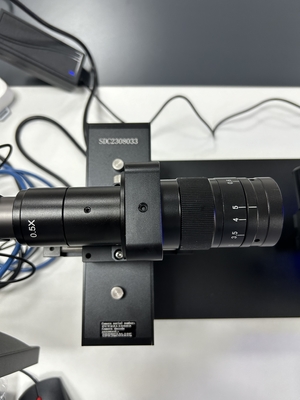

Lens Type	HD microscope lens	HD microscope lens	High fidelity microscope lens
Lens Magnification	6.5times	8times	10times
Zoom	--	--	±3mm
Maximum Shooting Speed	25 frames/S	50 frames/S	More models available
Lens Front And Rear Adjustment	10mm	30mm	30mm
Lens tilt Adjustment			±10°

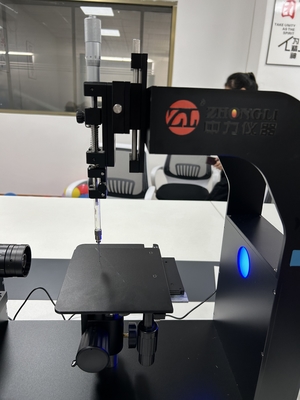

Injection System
Drop Sample	Manual (can be upgraded to automatic)	Manual (can be upgraded to automatic)	Automatic aspiration and injection
Wetted	Manual	Manual	Manual (can be upgraded to automatic)
Wet Contact Height Identification	Manual	Manual	Manual
Dropping Accuracy	0.2 μL	0.1μL	Upgradeable nanoliter system
Liquid Injection Movement Method	Manual	Manual	Manual (can be upgraded to automatic)
Liquid Injection Movement Stroke	40*10mm	50*50mm	50*50mm
Injection control	Manual knob type	Manual knob type	software digitization

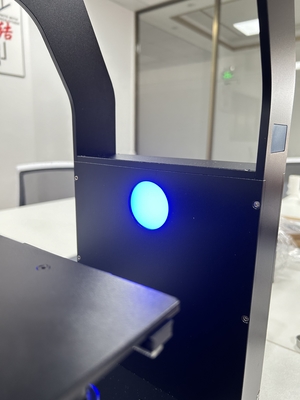

Light Source System
Light Source	Square LED	Round LED	Focus on LED
Wavelength	450-480nm	450-480nm	450-480nm

Accord Standard:

1.GB/T 24368-2009 (detection of hydrophobic contaminants on glass surface);

2.SY/T5153-2007 (Determination method of wettability of reservoir rocks);

3. ASTM D 724-99 (2003) (Test method for surface wettability of paper)

4. ASTM D5946-2004 (Measurement of contact angle between plastic film and water)

5. ISO 15989 (Measurement of water contact angle of plastic films and thin corona treated films);

Contact Angle Measuring Instrument/Contact Angle Goniometer/Contact Angle Measurement 0
