Laboratory Scratch Resistance Testing Machine, Plastic Interior Trim Scratch Hardness Tester Meet GM PV Chery GB Standards

Large Image : Laboratory Scratch Resistance Testing Machine, Plastic Interior Trim Scratch Hardness Tester Meet GM PV Chery GB Standards

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3081

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS2800-4000
Packaging Details:	wooden case packaging
Delivery Time:	7-14 work days
Payment Terms:	D/A,D/P,T/T,L/C
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Speed:	1-100 mm/s (adjustable)	Stroke:	40 mm
Speed Buffer Distance:	10±1 mm	Diameter Of Metal Scratch Tip:	φ1 mm
Standard Counterweights:	0.5 N, 1 N, 2 N, 5 N, One Piece Each	Overall Dimension:	6.420 mm × 560 mm × 510 mm (L × W × H)
Equipment Weight:	40kg
Highlight:	Laboratory scratch resistance tester , Plastic interior trim hardness tester , Scratch testing machine with warranty

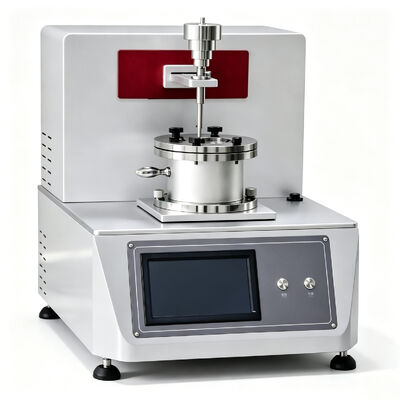

Laboratory Scratch Resistance Testing Machine

Product Overview

This Plastic Interior Trim Scratch Hardness Tester is designed to determine the scratch resistance coefficient of painted and non-painted plastic interior trim components. The instrument evaluates scratch resistance and damage resistance performance by performing cross-cut tests on component surfaces.

Compliance Standards

GM 14688 (Method A), GM 14688 (Method B), PV 3951 (Volkswagen Standard), PV 3952 (Volkswagen Standard), Q/SQR S1-16-2016 (Chery Standard), Q/SQR T1-64 (Chery Standard), GB/T 9286-97, GB/T 9279-2007

Key Features

High-quality stepper motor with short response time and no speed overshoot or fluctuation
Special aluminum-alloy metal panel with durable metal keys
Stainless-steel sample clamping plate with attractive appearance and long service life
Imported linear slide block for stable transmission operation
32-bit multi-function mainboard manufactured by STMicroelectronics
7-inch color touch-screen with intuitive menu-driven operation
Precision level detection device
Electrostatic spraying process for instrument surface coating
Benchtop design with stable operation and low noise

Technical Parameters

Speed	1-100 mm/s (adjustable)
Stroke	40 mm
Speed buffer distance	10±1 mm
Diameter of metal scratch tip	φ1 mm
Standard counterweights	0.5 N, 1 N, 2 N, 5 N (one piece each)
Overall dimension	420 mm * 560 mm * 510 mm (L * W * H)
Equipment weight	40 kg
Power supply	AC220V, 50Hz, 500W

Standard Configuration

Main unit: 1 set
Product Certificate of Conformity: 1 copy
Product Operation Manual: 1 copy
Delivery Note: 1 copy
Acceptance Form: 1 copy
Product Brochure: 1 copy
