AATCC 195 GB T 21655.2 Moisture Management Tester MMT for Measuring Textile Fabric Dynamic Liquid Transport Properties

Large Image : AATCC 195 GB T 21655.2 Moisture Management Tester MMT for Measuring Textile Fabric Dynamic Liquid Transport Properties

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-5080

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS9000-13000
Packaging Details:	wooden case packaging
Delivery Time:	7-15 work days
Payment Terms:	T/T,D/P,D/A,L/C
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Moisture Management Tester	Corresponding Standard:	AATCC 195, GB/T 21655.2
Interface:	USB	Test Pressure:	1000g
Operation Temp & R. H.:	18- 40℃, 20-80%RH	Pumping On Time:	20s
Test Fluid Delivery Capacity:	0.2g ± 0.01g (adjustable)	Test Solution:	Conductivity 16mS ± 0.2mS
Highlight:	AATCC 195 moisture management tester , GB T 21655.2 textile fabric tester , dynamic liquid transport properties tester

AATCC 195 GB T 21655.2 Moisture Management Tester MMT for Measuring Textile Fabric Dynamic Liquid Transport Properties

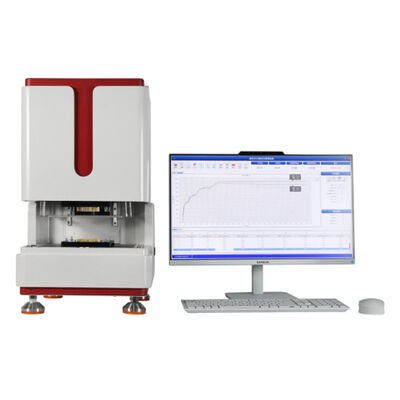

Equipment Overview

Moisture Management Tester used to measure the dynamic liquid transport properties of textiles, including knitted, woven, and nonwoven fabrics.

Compliance Standards

AATCC 195, GB/T 21655.2

Product Features

Computer software control with real-time display of moisture dynamics for easy observation
High quality peristaltic pump for accurate liquid transmission, capable of calibration and fine adjustment
Silent rotation system for smooth pressure block lowering and precise positioning
Comprehensive software functionality for testing soaking time, expanding radius, diffusion speed, and one-way transmission ability
Automated process with one-click start to complete entire testing steps and automatically calculate results
Separate liquid addition function to prevent air or pipeline blockage from affecting test results

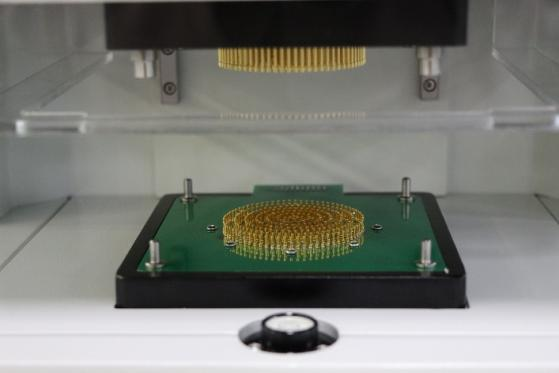

Multiple probes on electrode disc with concentric positioning holes from top to bottom
Transparent protective cover for easy observation of testing process

Technical Specifications

Interface	USB
Test pressure	1000g
Operation Temp & R.H.	18-40℃, 20-80%RH
Pumping on time	20s
Test fluid delivery capacity	0.2g ± 0.01g (adjustable)
Test solution	conductivity 16mS ± 0.2mS
Dimensions	340 x 400 x 580 mm
Power supply	220V, 50Hz or 110V, 60Hz
Weight	45 Kg

Software Interface
