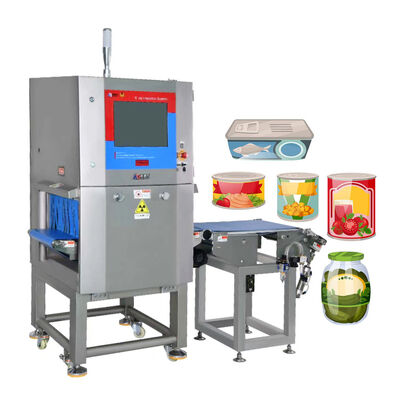

Food Industry X-Ray Inspection System
Advanced X-ray food inspection machine for foreign body detection with high-resolution imaging capabilities.
The X-ray foreign object detector automatically detects foreign objects (metal, stone, glass, plastic, bones, etc.) in foods that cannot be seen by the naked eye and internal defects (voids, cracks) in products. The system also identifies missing products and defective items simultaneously.
Suitable Applications
- Food processing
- Meat processing
- Agricultural and livestock processing
- Fruit processing
Detectable Foreign Matter
- Metal (Fe, Sus, Pb, Cu, etc.)
- Glass
- Stones
- Plastic
Detection Capabilities
- Lead: 0.2mm minimum standard
- Iron and flint: 0.28mm minimum diameter
- Non-metallic stones and glass: 1.2mm minimum
Technical Specifications
| Item |
ZL-500 |
ZL-2300 |
ZL-3500D |
| Minimum detection ability |
Lead: 0.2 mm, Iron: 0.28 x 1 mm, Stainless steel: 0.28 x 1 mm |
| X-ray output |
Max. 80KV |
Max. 80KV |
Max. 80KV |
| Detection speed |
Max. 60m/min
Min 10m/min |
Max. 75, 43m/min
Min 10m/min |
Max. 75, 43m/min
Min 10m/min |
| Width |
230mm |
270mm |
410mm |
| Maximum pass height |
120mm |
175mm |
225mm |
| Maximum load |
10kg (5kg with surface, speed exceeds 40m/min) |
| Height with belt surface |
750 ± 50mm |
| Computer display |
4 15" Touch screen |
| Processing system |
Windows 2000 Professional |
| Power/product weight |
220V port Max. 320kg |
220V port Max. 480kg |
220V port Max. 580kg |
| External dimensions |
800x860x1580mm (HxWxD) |
900x685x1600mm (HxWxD) |
1985x915x1790mm (HxWxD) |
| Consumption power |
0.8kw |
0.9kw |
1.6kw |
Customer Satisfaction Features
- Automatically set product detection parameters
- Equipped with wash design
- Production management by year/month/day
- MTBF, MTTR analysis and equipment management
- Image storage (1 month automatic storage) / printing / analysis
- Report printing capability (requires printer connection)
- System alarm function
- Monthly alarm information printing function
ZL-4024B X-ray Foreign Objects Detector for Liquids
