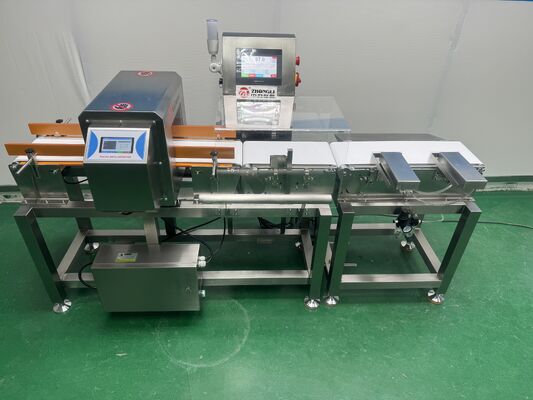

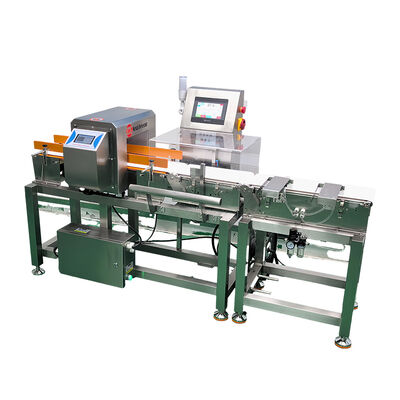

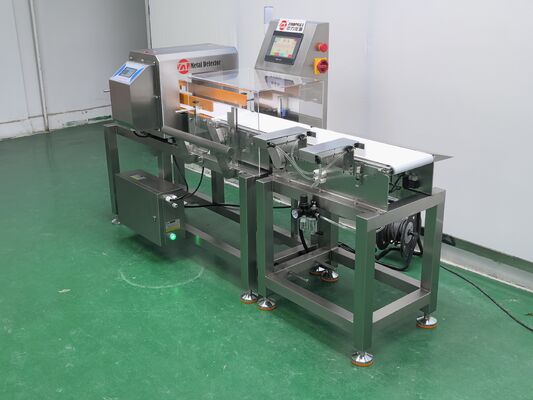

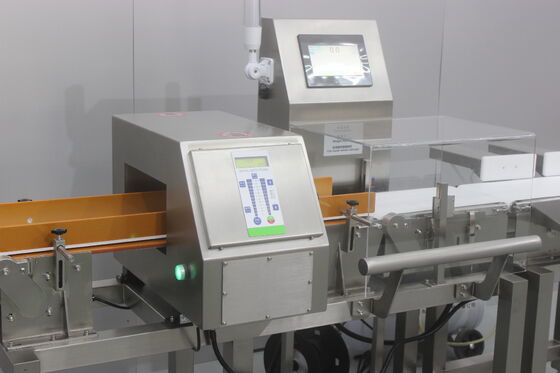

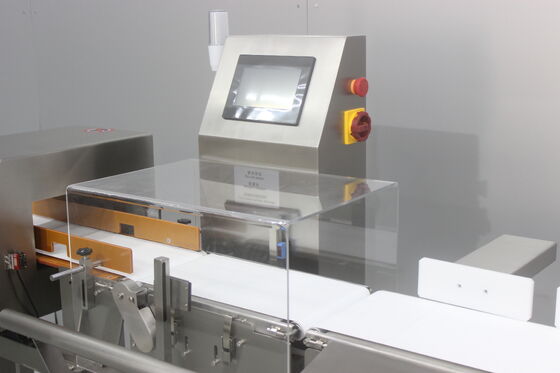

Combination System Type Food Metal Detector and Check Weight Machine

Large Image : Combination System Type Food Metal Detector and Check Weight Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Model Number:	ZL-4023

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6,000
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	Western Union,T/T,D/A,D/P,L/C
Supply Ability:	30 Sets

Contact Now

Detailed Product Description

Power Supply:	AC220V; 100W	Material:	304 Stainless Steel
Power:	500 W	Detection Width:	40cm (can Be Customize)
Delivery Speed:	28m / Min (can Be Customize)	IP Rating:	IP68
Search Coil Diameter:	20 Cm, 18 Cm, 15 Cm, 10 Cm, 8 Cm, 12 Cm, 5 Cm	Sensitivity:	30 Inches (U.S.Coin ), 25 Inches (U.S.Coin ), 18 Inches (U.S.Coin ), 20 Inches (U.S.Coin ), 15 Inches (U.S.Coin ), 12 Inches (U.S.Coin ), 10 Inches (U.S.Coin )
Detection Speed:	40 ~ 60 Pieces / Min (can Be Customize)	Communication Interface:	Ethernet
Operating Frequency:	Multi-Frequency	Test Product Weight:	400g ~ 1000g (can Be Customize)
Machine Length:	120cm (can Be Customize)	Detection Height:	13cm (can Be Customize)
Conveying Speed:	60~90m/min
Highlight:	food metal detector with check weight , combination system metal detector machine , metal detector and weight machine combo

Combination System Type Food Metal Detector and Check Weight Machine

Scope of Application

Widely used in electronics, food, beverages, health products, daily chemicals, light industry, and agricultural industries. Applications include prepared foods, pastries, ham sausages, instant noodles, frozen foods, food additives, pigments, modifiers, and preservatives.

Technical Parameters

Checkweigher Specifications	Metal Detector Specifications
Power Supply: AC220V±10% 50HZ(60HZ)	Detection Accuracy: Fe 1.5mm, Non-Ferrous 2.0mm, Stainless Steel 2.5mm
Rated Power: 0.15KW	Opening Size: 300*120mm (Customizable)
Single Weighing Range: ≤1000g (Customizable)	Optimum Speed: 15-40m/min
Checkweigher Accuracy: ±0.3g~±1g	Test Product Size: ≤250mm(L)*120mm(W) (Customizable)
Minimum Scale: 0.1g	Conveying Size: 924mm(L)*210mm(W) (Customizable)
Conveying Speed: 60~90m/min	Control System: Customized
Maximum Speed: 160 pcs/min	Storing Data: 200 pcs
Checkweigher Material Size: ≤250mm(L)*120mm(W) (Customizable)
Conveyor Belt Size: 400mm(L)*210mm(W) (Customizable)
Product Size: 2024mm(L)742mm(W)1250mm(H)
Preset Product Number: 99
Conveying Direction: Left in and right out
External Air Source: 0.6-1Mpa
Air Pressure Interface: Φ8mm
Working Environment: Temperature: 0℃~40℃ Humidity: 30%~95%
Material: SUS304 stainless steel
Rejection Method: Push rod, lever, air blowing (selectable based on product characteristics)
Control System: High-speed A/D sampling controller

Functional Features

Checkweigher Features

Strong versatility with standardized structure and human-machine interface
Easy product changeover with storage for multiple formulas
Simple operation using Weilun color human-machine interface
Easy maintenance with quickly disassembled conveyor belt
Adjustable speed using frequency conversion control motor
High speed and precision with digital sensors
Zero point tracking with manual or automatic zeroing
Comprehensive report function with EXCEL format output

Metal Detector Features

Intelligent design with high-definition 7-inch touch screen
One-button self-learning function for automatic parameter setting
Comprehensive data logging with production statistics
200+ product parameter memory functions
Automatic fault detection and prompt system
