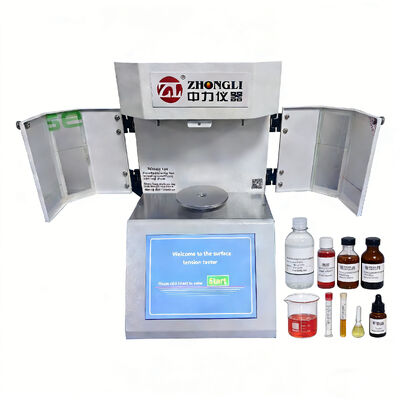

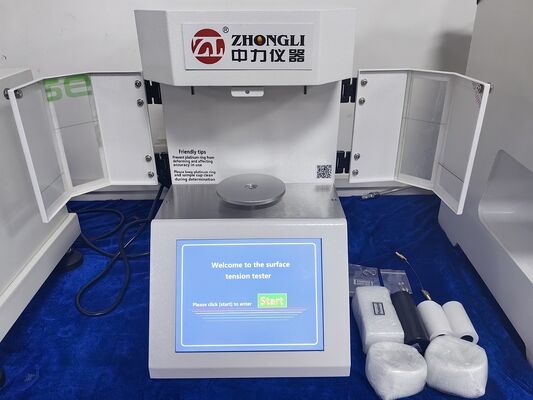

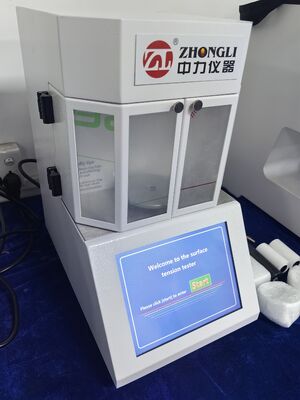

ASTM D1417 Liquid Surface Tensiometer
High Repeatability Dynamic Surface Tensiometer with advanced platinum ring method technology for precise liquid surface tension measurement.
Product Overview
The platinum ring method represents a traditional testing approach with over 70 years of proven reliability. Utilizing a 0.37mm diameter platinum wire forming a 60mm circumference ring, this instrument provides accurate surface tension measurements through precise force detection during the lifting process.
Our automatic interface tension measuring instrument employs the platinum ring principle to deliver precise liquid surface tension values. Incorporating multiple advanced technologies, it serves diverse industries including chemical, petroleum, power generation, research, and railway sectors.
Compliance Standards
GB6541-1986, ISO 6295-1983, JB/T 9388-1997, ISO1409-1995, SH/T1156-92, GB/T 5549, ISO 304-1985, ISO 4311-1979, GB/T 22237-2008, JB/T 18396-2001, ISO14090-82, ASTM D1417, EN14370, ZB2025-93, GB2960-82
Technical Specifications
| Display Mode |
8 inch 65K color touch LCD (800×600 resolution) |
| Measurement Method |
Platinum Ring Principle |
| Platinum Ring Radius |
R9.55 platinum wire r0.3 |
| Measuring Range |
0-400mN/m |
| Sensitivity |
0.01mN/m |
| Accuracy |
±0.01mN/m |
| Self-test Function |
Automatic instrument failure diagnosis |
| Temperature Compensation |
Automatic temperature compensation |
| Power Consumption |
Less than 40W |
| Dimensions |
440 × 190 × 350mm |
| Operating Environment |
Temperature 10°C-40°C, humidity <80% |
| Power Source |
AC220V±10% 50HZ±2.5HZ |
| Weight |
Approximately 7.5 kg |
Key Features
- Fully automatic measurement using advanced microprocessor technology

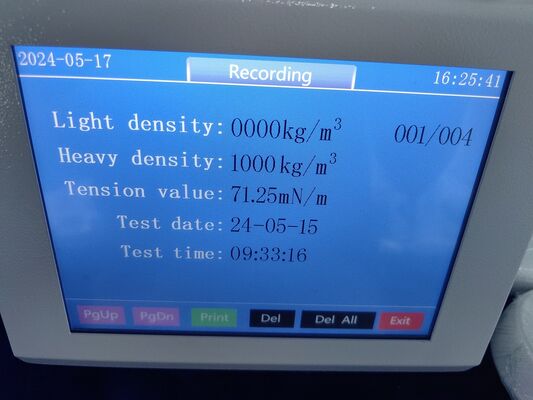

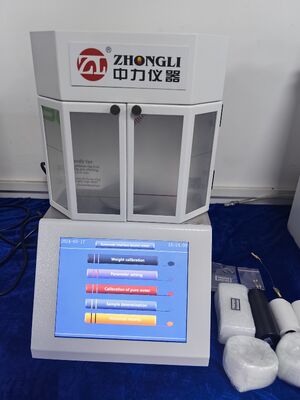

- 8-inch color touch LCD display with Chinese/English menu operation
- Electrostatic spray surface treatment for corrosion resistance and easy cleaning
- 25°C automatic temperature compensation for accurate measurements
- Automatic zeroing, measurement, calculation, and results display
- Power-down storage function for data retention
- Automatic lifting platform with stable, low-noise operation
- Magnetic can-closed sensor with multi-point calibration for enhanced repeatability
