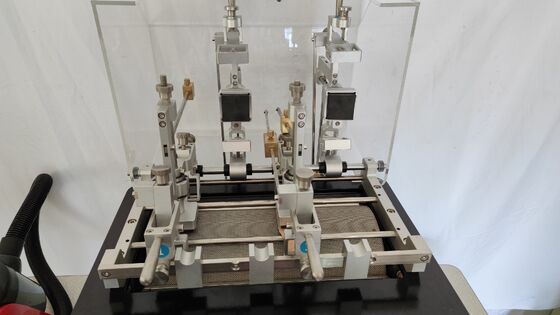

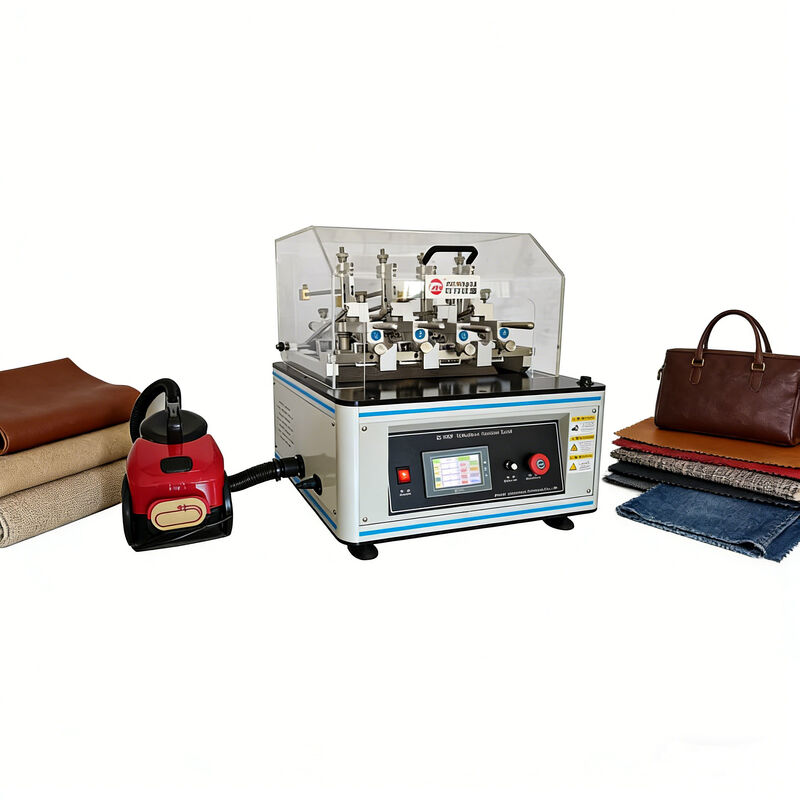

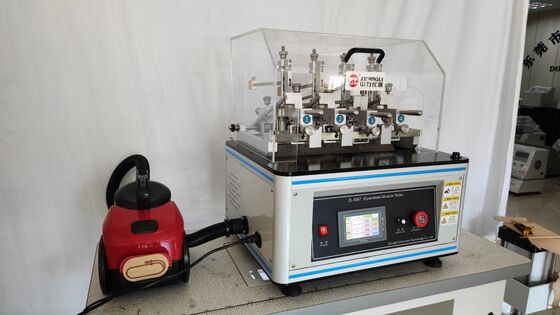

G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine

Large Image : G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Speed:	90 ± 1r / Min	Friction Stroke:	76 ± 2mm
Tension Weight:	340g	Load Weight:	150g
Dimensions:	550 × 550 × 650mm	Weight:	80kg
Power Supply:	220V 50HZ	Test Head:	4 Groups
Friction Table:	Arc Surface R100mm Length 400mm	Friction Head:	Bottom Rubber Indenter 50×50mm Arc Surface R100mm
Sample Tension:	4lbf (17.8N), Adjustable	Sample Load:	3lbf (13.4N), Adjustable
Sample Size:	73 × 245mm	Number Of Samples:	12 Pieces, 6 Pieces Each In Warp And Weft
Protection Class:	IP56
Highlight:	Fabric oscillatory abrasion tester , Leather Wyzenbeek abrasion machine , Textile abrasion testing equipment

G278 Fabric Oscillatory Abrasion Tester and Leather Wyzenbeek Abrasion Testing Machine

ASTM D3597 Oscillatory Abrasion Tester | Fabric & Leather Wyzenbeek Testing Machine | SAE J1948 ISO ISO12402 Compliant

Product Overview

The Wyzenbeek abrasion resistance tester measures the abrasion resistance of fabrics against standard friction media or metal mesh surface friction movements. This equipment is particularly suitable for abrasion resistance testing of automotive decoration, furniture textiles, and leather materials.

Compliance Standards

ASTM D4157, ASTM D3597, ISO12402-7, SAE J1948 and related standards

Technical Specifications

Parameter	Specification
Test Head	4 groups
Speed	90 ± 1r/min
Friction Table	Arc surface r100mm length 400mm
Friction Stroke	76 ± 2mm
Friction Head	Bottom rubber indenter 50×50mm arc surface r100mm
Sample Tension	4lbf (17.8N), adjustable
Tension Adjustment Weight	340g
Sample Load	3lbf (13.4N), adjustable
Load Adjustment Weight	150g
Sample Size	73 × 245mm
Number of Samples	12 pieces, 6 pieces each in warp and weft directions
Dimensions	550 × 550 × 650mm
Weight	Approximately 80kg
Power Supply	220V
