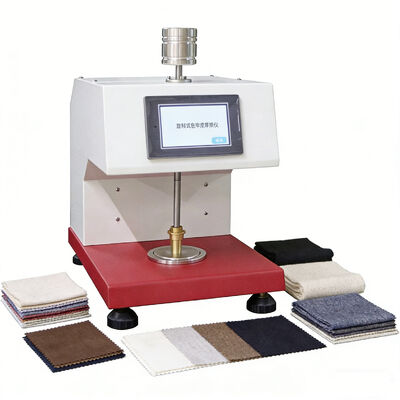

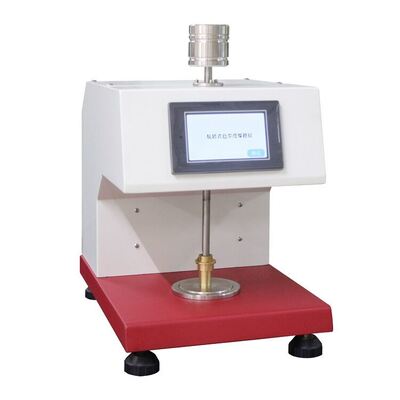

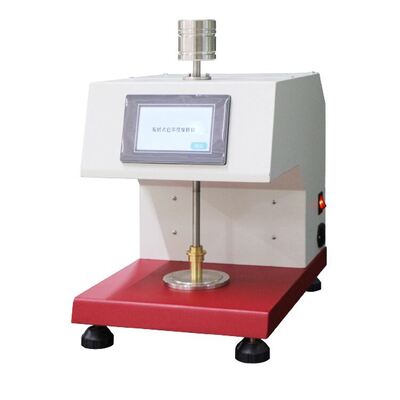

AATCC 116 ISO 105X16 Textile Colorfastness Testing Machine Rotating Color Fastness Friction Tester

Large Image : AATCC 116 ISO 105X16 Textile Colorfastness Testing Machine Rotating Color Fastness Friction Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Friction Head Diameter:	16mm And 25mm	Provide Pressure:	1134g
Working Mode:	Clockwise Turn 1.125 Turns After Anti-clockwise Turn	Speed Range:	50~80times/minute
Counting Range:	0~999999 Times	Dimensions:	240100160mm
Weight:	15kg	Voltage:	220V
Power:	100W	Frequency:	50Hz
Protection Class:	IP56	Accuracy Class:	High Accuracy
Electricity:	AC220V 50Hz 100W	Speed Adjustment:	Freely Set
Counting Mode:	Forward And Reverse
Highlight:	textile colorfastness testing machine , rotating color fastness tester , ISO 105X16 friction tester

AATCC 116 ISO 105X16 Textile Colorfastness Testing Machine

Rotating Color Fastness Friction Tester

Professional testing equipment for evaluating color fastness to rubbing and friction in textiles, printing, and dyeing products.

Key Features

Multi-Standard Compliance: Meets GB/T 29865 (small area method), AATCC 116, and ISO 105X16 international testing standards
Intelligent Touch Control: User-friendly touchscreen with bilingual Chinese/English menus and intuitive operation
Precision Control System: Microprocessor-controlled with adjustable speed (50-80 cycles/minute), forward/reverse counting, and automatic stop function
Dual Friction Head Configuration: Includes both 16mm and 25mm diameter friction heads with 1134g pressure capability
Realistic Friction Simulation: 1.125 clockwise rotations followed by 1.125 counterclockwise rotations accurately simulate real-world friction conditions
Compact Design: Space-efficient dimensions of 240×100×160mm with complete accessory options available

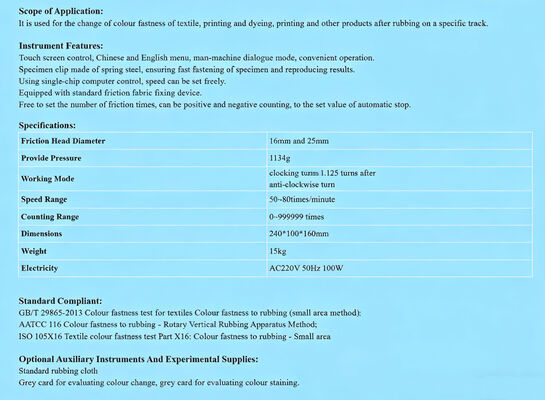

Technical Specifications

Dimensions: 240×100×160mm

Weight: 15kg

Speed Range: 50-80 cycles per minute

Friction Heads: 16mm and 25mm diameter

Pressure: 1134g

Motion Pattern: 1.125 clockwise + 1.125 counterclockwise rotations

Optional accessories include standard friction cloth, color-matching gray cards, and color-changing gray cards to complete your testing requirements.
