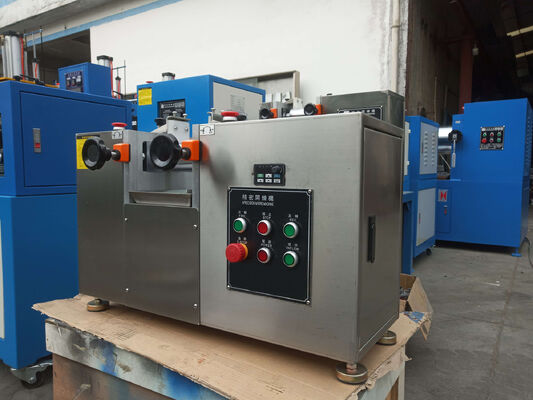

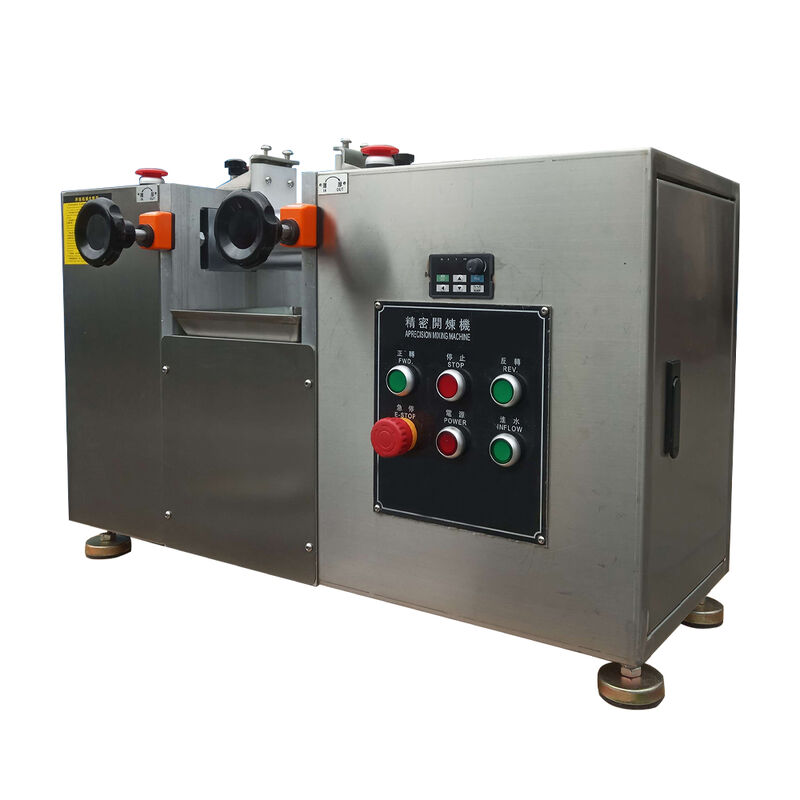

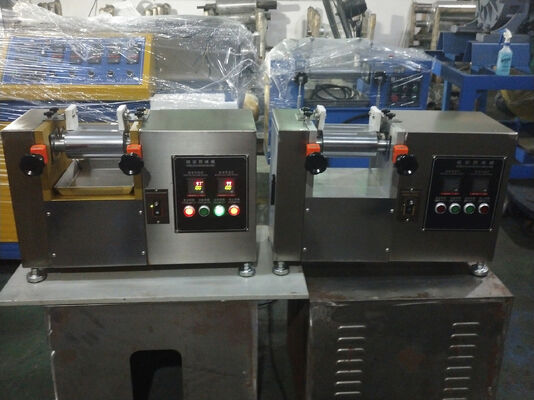

2 Inch Desktop Lab Rubber Open Two Roll Mixing Mill
Professional Lab Silicone Plastic Rubber Open Mixing Two Roll Mill Machinery is engineered to provide unmatched performance for masticating and kneading natural rubber, synthetic rubber, EVA or PVC pellets with various chemical materials. This machine is mainly used for plastic, hot mill and mixing mill of natural and synthetic rubber for rubber product factories.
Applications
Professional Lab Silicone Plastic Rubber Open Mixing Two Roll Mill Machinery is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.
Technical Parameters
| Model |
ZL-3018-76 |
ZL-3018-120 |
ZL-3018-160 |
ZL-3018-200 |
ZL-3018-230 |
ZL-3018-300 |
ZL-3018-400 |
| Diameter of roll (mm) |
76 |
120 |
160 |
200 |
230 |
300 |
400 |
| Length of roller face (mm) |
300 |
350 |
350 |
500 |
650 |
650 |
900 |
| Mixing Capacity (kg) |
0.002-0.6 |
0.002-2 |
0.002-2.8 |
0.002-5 |
0.005-10 |
1-15 |
5-30 |
| Front roll surface speed (rpm) |
19 |
19 |
19 |
19 |
19 |
19 |
19 |
| Friction ratio |
1:1.30 |
1:1.35 |
1:1.35 |
1:1.35 |
1:1.27 |
1:1.27 |
1:1.27 |
| Roll gap range (mm) |
0-3 |
0-6 |
0-6 |
0-8 |
0-12 |
0-12 |
0-15 |
| Driving Power (KW) |
1 |
1.5 |
2.2 |
7.5 |
11 |
30 |
37 |
| Machine weight (kg) |
160 |
460 |
660 |
860 |
1960 |
2960 |
3800 |
| Overall dimension (mm) |
1100x400x1180 |
1100x550x1380 |
1200x650x1380 |
2200x750x1380 |
2200x950x1580 |
2600x950x1580 |
5295x1789x170 |
Heating Mode: Electricity heating, Oil Heating (option)
Cooling Mode: Water Cooling (option)
Roll Temperature: Room temperature -- 300℃
Roll Hardness: HRC 50 ~ 60
Temperature Accuracy: ± 2 ℃ (high accuracy PID micro computer controller)
Safety device: 6 safety buttons and safety guard is option
Power: 380V 3 phase 50-60hz
Key Features
- Construction of mill rolls: drilled roll, bored roll, grooved roll
- Customizable speed ratio based on customer's formula and processing requirements
- Frame, frame cap and base are welded and treated by annealing for stress relieving
- Rolls material is chilled cast alloy iron with hardness reaching 70HB
- Brake and emergency stop device ensures personnel and equipment safety
- Auto feeding oil or grease lubrication for easy maintenance and machine protection
- Human nature designed controlling system ensures labor safety
- Methods of adjusting roll nip: manual or electric
Intelligent Control Panel and PLC Control System
- Real-time data record and export of kneading time, temperature (mixing chamber and front/rear rotors), ram pressure, current, torque and recipe code
- Control system can be set up to 20 mixing steps, save 20 recipe spaces
- Capable of remote import of process recipe and data monitoring, communicating with MES via Ethernet communication interface
- Ethernet communication interface and 20% of control points reserved
- Touch screen provided for easy operation
