10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender

10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender
10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender

Large Image :  10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender

Product Details:
Place of Origin: Guangdong, China
Brand Name: ZL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $8,000
Contact Now
Detailed Product Description
Roll Diameter: 250 Mm Front Roll Speed: 1 - 19 Rpm
Roll Length: 350 Mm Roll Ratio: 1:1.25
Cooling Mode: Water Cooling (option) Voltage: 380V
Dimensions: 960*550*1150 Mm Power: 2.8 KW
Weight: 500 Kg Warm-up Time: RT~150℃ About 20min
Temperature Accuracy: ±3℃ Roller Dimensions: Diameter 3.9"*L13.7"
Roller Hardness: HRC 50~60 Roll Gap Range: 0-12 Mm
Heating Mode: Electricity Heating, Oil Heating (option)
Highlight:

10 inch two roll rubber mixing mill

,

12 inch plastic refining mixing mill

,

two roll mill with stock blender

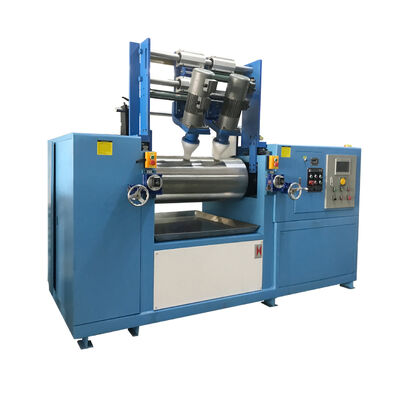

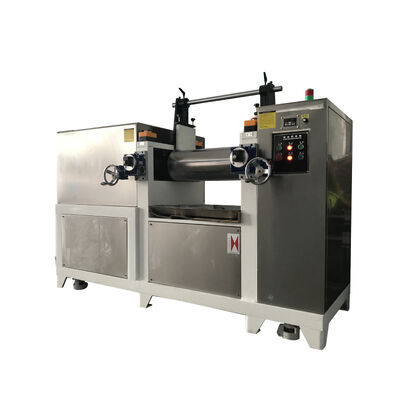

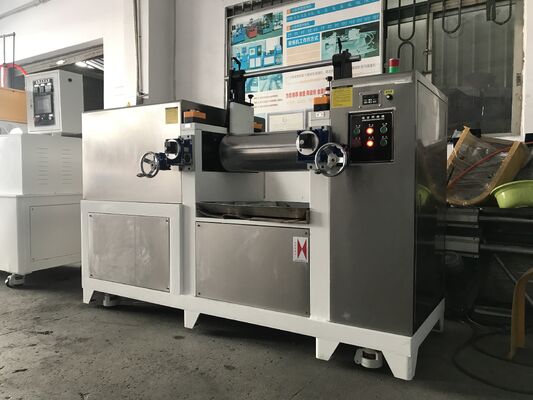

Professional Two Roll Mixing Mill with Stock Blender
The XK-250 and XK-300 series two roll mixing mills are engineered for precision mixing and refining of rubber, silicone, plastic, and polymer materials. These industrial-grade machines combine robust construction with advanced control systems for optimal processing performance.
10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 0 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 1
Applications
Ideal for rubber and plastics industries including polymer mixing applications for PVC, color master batch, natural rubber, synthetic rubber, EVA, and various chemical compounds. Perfect for rubber product manufacturing facilities and research laboratories.
Technical Specifications
Model ZL-3018-76 ZL-3018-120 ZL-3018-160 ZL-3018-200 ZL-3018-230 ZL-3018-300 ZL-3018-400
Diameter of roll (mm) 76 120 160 200 230 300 400
Length of roller face (mm) 300 350 350 500 650 650 900
Mixing Capacity (kg) 0.002-0.6 0.002-2 0.002-2.8 0.002-5 0.005-10 1-15 5-30
Front roll surface speed (rpm) 19 19 19 19 19 19 19
Friction ratio 1:1.30 1:1.35 1:1.35 1:1.35 1:1.27 1:1.27 1:1.27
Roll gap range (mm) 0-3 0-6 0-6 0-8 0-12 0-12 0-15
Driving Power (KW) 1 1.5 2.2 7.5 11 30 37
Machine weight (kg) 160 460 660 860 1960 2960 3800
Overall dimension (mm) 1100x400x1180 1100x550x1380 1200x650x1380 2200x750x1380 2200x950x1580 2600x950x1580 5295x1789x170
Additional Specifications:
Heating Mode: Electricity heating, Oil Heating (option)
Cooling Mode: Water Cooling (option)
Roll Temperature: Room temperature - 300℃
Roll Hardness: HRC 50 ~ 60
Temperature Accuracy: ±2℃
Power: 380V 3 phase 50-60hz
Safety: 6 safety buttons with optional safety guard

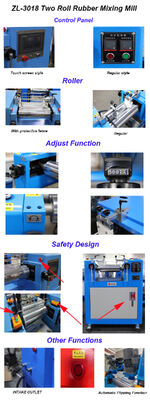

Key Features
  • Multiple roll constructions available: drilled roll, bored roll, grooved roll
  • Customizable speed ratio based on customer formula and processing requirements
  • Annealed frame, frame cap and base for stress relief and durability
  • Chilled cast alloy iron rolls with hardness up to 70HB
  • Integrated brake and emergency stop safety systems
  • Automatic oil/grease lubrication for easy maintenance
  • Human-centered control system for operational safety
  • Manual or electric roll gap adjustment options
Intelligent Control System
Advanced PLC control system with real-time data recording for kneading time, temperature, ram pressure, current, torque, and recipe code. Features include 20 programmable mixing steps, 20 recipe storage spaces, Ethernet communication for remote monitoring, and touch screen interface.
10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 2 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 3 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 4
Click here for More Factory Prices and Shipping Information

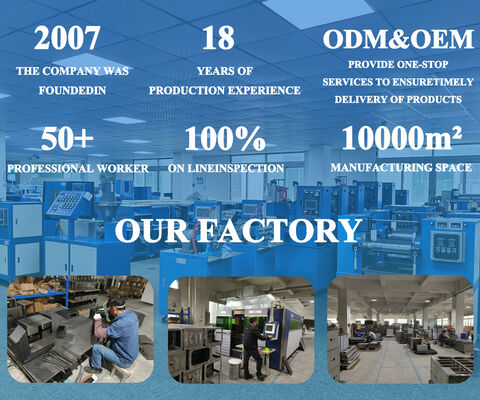

About Zhongli Instrument Technology
Since 2007, Zhongli Instrument Technology Co., Ltd has specialized in manufacturing laboratory testing equipment for rubber, plastics, food, packaging, and electronics industries. Our products are exported to over 80 countries worldwide with strong presence in European and American markets.
10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 5
Beyond standard machines, our R&D team provides custom solutions tailored to specific customer requirements. We serve scientific research units, quality inspection institutions, and academic fields with precision testing equipment.
10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 6 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 7 10 Inch 12 Inch XK-250 XK-300 Two Roll Mill Open Mixing Mill Rubber Mixing Mill Plastic Refining Mixing Mill With Stock Blender 8
Frequently Asked Questions
How to choose the most suitable mechanical equipment?
Our professional team provides expert recommendations based on your specific testing requirements and specifications.
What's the delivery term?
Most items are available from stock. Custom orders typically deliver within 15-20 working days after deposit receipt.
Do you accept customization service?
Yes, we offer both standard and customized machines tailored to your specific requirements.
Can we visit your factory before order?
We welcome factory visits and can assist with hotel arrangements and airport transfers.
What is your warranty policy?
We offer a comprehensive 2-year warranty including technical support and replacement parts.
How is the equipment packaged for shipping?
All machines are packed in standard export wooden boxes to ensure safe transportation worldwide.
