ASTM F1614 ASTM F1976 Shoe Cushioning Performance Tester

Large Image : ASTM F1614 ASTM F1976 Shoe Cushioning Performance Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7073

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM F1614 ASTM F1976 Shoe Cushioning Performance Tester is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	ASTM F1614 ASTM F1976 Shoe Cushioning Performance Tester	Test Operation System:	High-speed Dedicated Operation Software
Drop Hammer Weight:	8.5 Kg (5 J), 11.9 Kg (7 J)	Impact Head Specification:	Top Radius R = 1.0 ± 0.25 Mm, Round Top, Diameter 45 Mm
Drop Height:	Drop Height Is 50 Mm	Impact Energy Requirement:	5J,7J
Test Speed:	2 + 1 Seconds Per Cycle	Load Cell Capacity:	5000 Lbf, Sampling Frequency Greater Than 1000 Hz
Machine Dimensions:	800 × 700 × 1700 Mm
Highlight:	ASTM shoe cushioning tester , shoe performance testing machine , leather testing equipment with warranty

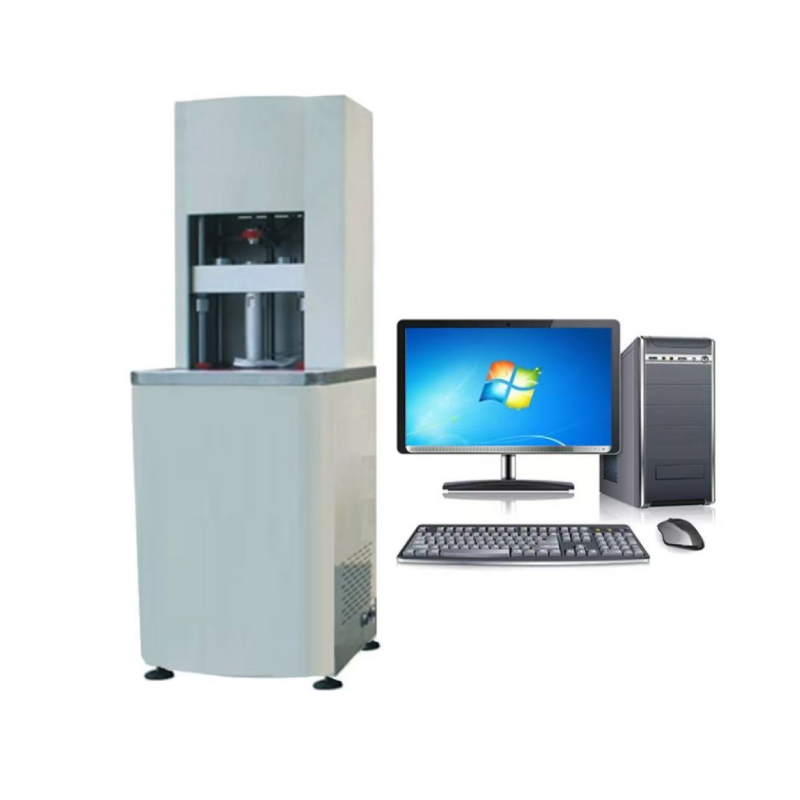

ASTM F1614 ASTM F1976 Shoe Cushioning Performance Tester

Machine Overview:

This machine is used to evaluate the cushioning properties and the quick compression force-displacement relationship of midsole material systems used in athletic shoes for official running competitions. It is an ideal testing device for technical supervision agencies, athletic shoe manufacturers, commercial inspection and arbitration organizations, and research institutes.

Applicable Standards:

GB/T 30907-2014, ASTM F1614, ASTM F1976

Technical parameters:

1. Test Operation System	High-speed dedicated operation software
2. Drop Hammer Weight	8.5 kg (5 J), 11.9 kg (7 J)
3.Impact Head Specification	Top radius R = 1.0 ± 0.25 mm, round top, diameter 45 mm, weight less than 0.2 kg
4. Drop Height	Adjustable according to specimen height, each test drop height is 50 mm
5. Impact Energy Requirement	5 J; 7 J
6. Test Speed	2 + 1 seconds per cycle
7. Load Cell Capacity	5000 lbf, sampling frequency greater than 1000 Hz
8. Displacement Sensor	0–100 mm, sampling frequency greater than 1000 Hz
9. Machine Dimensions	800 × 700 × 1700 mm
10. Power Supply	AC 220 V, 50 Hz

Performance Features:

Uses internationally renowned high-sensitivity piezoelectric sensors for force measurement to accurately capture complete force data

Equipped with high-speed deformation sensors exceeding twice the required response speed for current object testing, ensuring deformation measurement in micrometers

High-speed signal processing system to accurately capture the tiny time interval from zero force to peak force, displayed directly via curves

Advanced software allows multiple cycle tests on the same specimen, with statistical analysis performed on data from cycles 26 to 30

User-defined report settings based on standard requirements, curve zoom in/out, and curve value reading

Provides report data and curve printing functions

Practical, reliable, stable, flexible, and user-friendly software system to meet multiple test requirements specified by standards, with database management for data processing, result storage, and test plans

ASTM F1614 ASTM F1976 Shoe Cushioning Performance Tester 0
