SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station

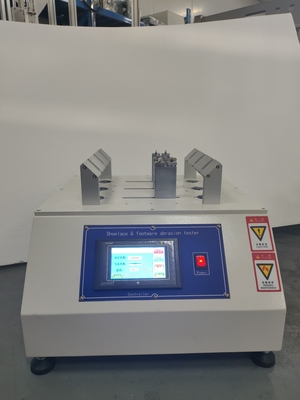

Large Image : SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-7057A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine will be Packaged in wooden case
Delivery Time:	7-10 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Name:	SATRA TM93 Shoelace And Eyelet Abrasion Testing Machine	Stations:	6
Weight:	(450 ± 5) G	Stroke:	(76 ± 2) Mm
Fiberboard:	(25 × 25 × 3) Mm	Eyelet Hole Diameter:	Ø4.5 Mm
Dimensions:	(55 × 56 × 40) Cm
Highlight:	SATRA TM93 shoelace abrasion tester , 6-station eyelet abrasion machine , leather testing machine with warranty

SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine

Scope of Application:

This machine is suitable for testing all types of shoelaces and eyelets. One end of the shoelace is passed through an eyelet clamped by a fiberboard, with the shoelace and eyelet positioned at a 90° angle and the fiberboard and shoelace at a 45° angle. The shoelace is then tightened under standard tension and repeatedly pulled back and forth through the eyelet. The test stops when the shoelace is damaged. The test complies with the SATRA TM93 technical standard.

Product Specifications:

Stations	6 groups
Weight	(450 ± 5) g
Stroke	(76 ± 2) mm
Fiberboard	(25 × 25 × 3) mm
Eyelet Hole Diameter	Ø4.5 mm
Dimensions	(55 × 56 × 40) cm
Power Supply	1-phase, AC 220V, 3A
