UL1662 UL2056 Lithium Battery Explosion Proof Test Chamber Explosion Proof Battery Boxes

Large Image : UL1662 UL2056 Lithium Battery Explosion Proof Test Chamber Explosion Proof Battery Boxes

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Zhongli
Certification:	ISO,CE
Model Number:	ZL-3202

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	UL1662 UL2056 Lithium Battery Explosion-Proof Test Chamber Explosion Proof Battery Boxes will be Packaged in wooden case （fumigation free）
Delivery Time:	7 days after the order confirmed
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Applicable Industry::	Battery Industry	Outer Container::	3mm A3 Steel Plate With Stoving Varnish
Inner Container::	SUS#201 Stainless Steel	Inner Door::	Stainless Steel
Air Pressure::	1MPa	Box Size (W * D * H)::	500500500mm
Weight::	Optional	Warranty::	12 Months
Name:	UL1662 UL2056 Lithium Battery Explosion-Proof Test Chamber Explosion Proof Battery Boxes	Model:	ZL-3202
Highlight:	Explosion Proof Battery Boxes , UL2056 Battery Boxes , UL1662 Battery Boxes

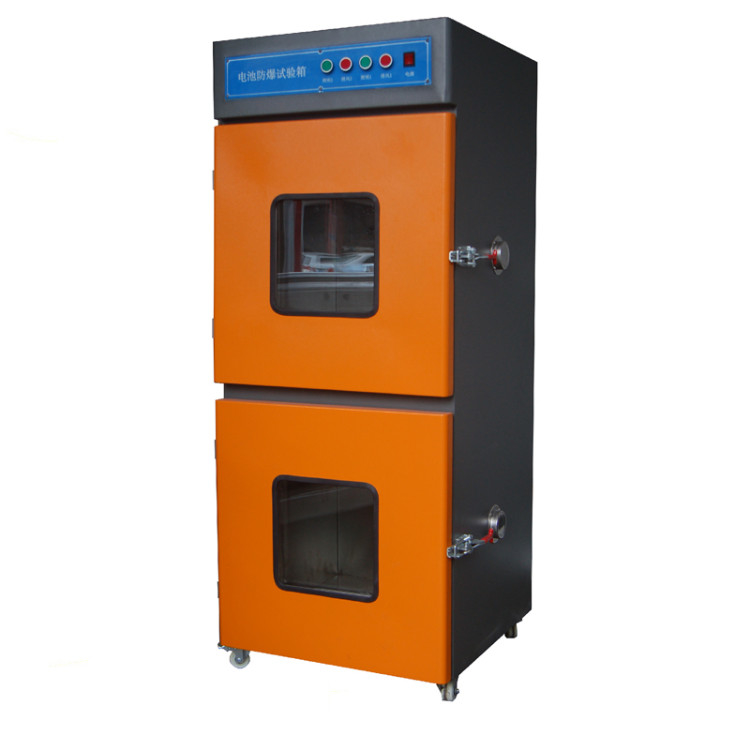

UL1662 UL2056 Lithium Battery Explosion Proof Test Chamber

This explosion-proof battery testing chamber provides essential protection for personnel and equipment during battery overcharge, discharge, and charge-discharge cycle testing. The chamber is custom-built according to specific testing requirements to ensure maximum safety and reliability.

Compliance Standards

GB 31241-2014, GB/T 18287-2013, GB/T 8897.6-2008, YD/T 2366.1-2011, GB/T 21966-2008, MT/T 1051-2007

Technical Specifications

Internal Size (single chamber)	500500500mm LWH (Customizable)
Internal Material	A3 Steel board with bake paint coating, Thickness: 1.2mm
External Material	SUS #201 Stainless board, Thickness: 1.0mm
Material Configuration	Available in single or double chamber; inner door made of stainless steel with silicone sealing
Door Features	Observation window, strong connecting hinge, explosion-proof handle
Observation Window	250*250mm
Test Hole	Ø50mm for power-on testing
Power Requirements	1 phase VAC 220V 50Hz, approximately 2KW

Safety Features

Explosion-proof construction for maximum operator protection
Silicone-sealed doors for complete containment
Observation window for safe monitoring of tests
Dedicated test ports for external equipment connections
