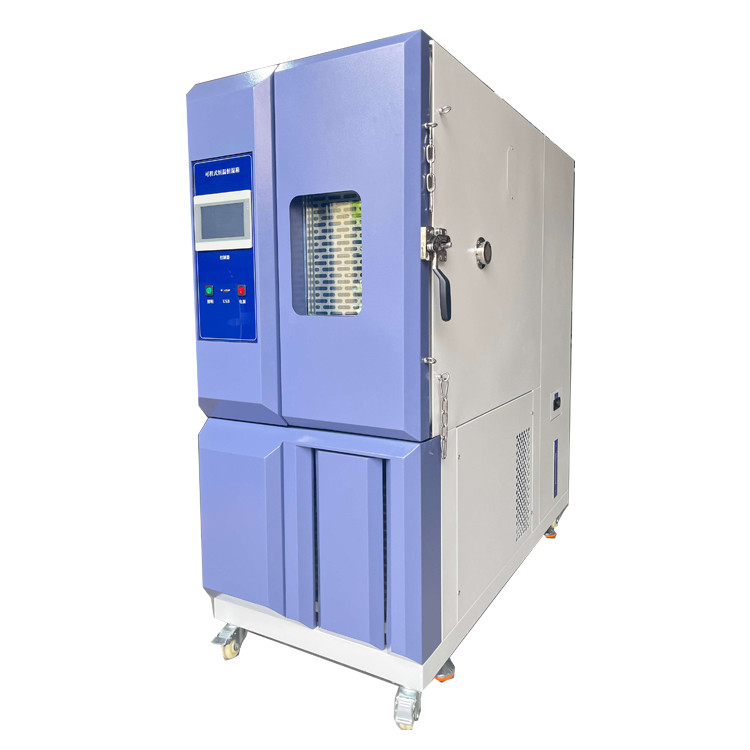

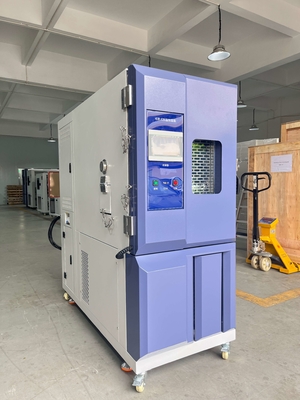

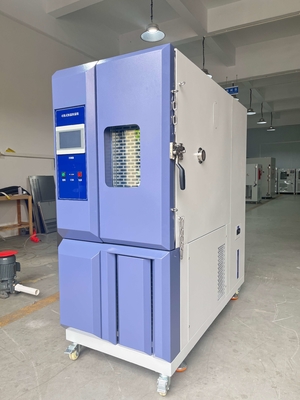

Battery Explosion Proof Test High And Low Temperature Chamber

Explosion-Proof High and Low Temperature Chamber Battery Explosion-Proof Test Chamber

This tester provides high and low temperature simulation environments to test material properties and strength degradation of rubber, plastic, and electronic products before and after testing. It can simulate container environments to detect color fading and shrinkage in rubber and plastic under high temperature and humidity conditions. Suitable for testing heat resistance, cold resistance, dry resistance, and humidity resistance of various materials. Applications include electronics, electrical appliances, batteries, universities, research institutes, inspection bureaus, paper products, food, vehicles, automotive parts, metals, chemicals, building materials, and quality control testing.

Perfect modeling design, high quality appearance, low noise, easy to operate, safe and reliable.

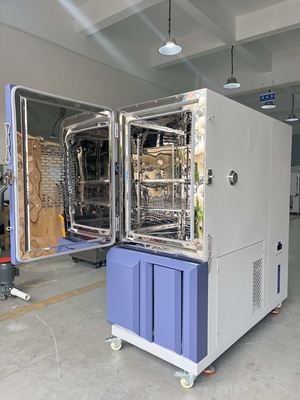

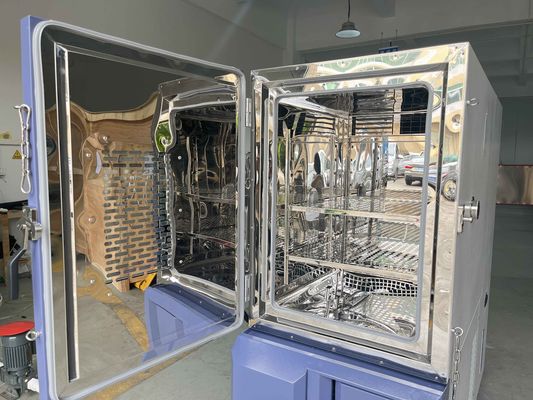

Divided into three sections: test room, electronic control cabinet, and machine warehouse. The test room is located in the upper left section with insulated liner and single-door entry. The electronic control cabinet is on the right side with temperature controllers, switches, and protection indicators. The machine warehouse is below the test room, containing filters, solenoid valves, wiring, compressors, and other components.

• Shell Material: Steel plate baking paint
• Inner Box Material: SUS #304 stainless steel plate
• Insulation Material: 100mm rigid polyurethane foam or fiberglass, flame and fire resistant, environmentally compatible

• Box Door: Hinged single door with electric defrosting device to prevent condensation/frost
• Sealing: Double silicone rubber strips resistant to high/low temperatures, anti-aging, excellent sealing
• Viewing Window: Heat-proof, sweat-proof 3-layer vacuum glass, frost-free during any test
• Lighting: 1 LED AC220V energy saving lamp, window mounted, explosion-proof and moisture-proof
• Test Hole: 1 Φ100mm hole with soft plug and cover for external test power/signal lines
• Caster: 4 sets of high-quality fixable universal movable wheels with leveling feet
• Nitrogen Insertion Port: Located on the right side of the unit
• Smoke Evacuation Equipment: 50mm diameter manual smoke evacuation device on top of unit
