Electric Test Equipment Electrodynamic Shaker Testing Table For Laboratory Vibration Test

Electric Test Equipment Electrodynamic Shaker Testing Table For Laboratory Vibration Test
Electric Test Equipment Electrodynamic Shaker Testing Table For Laboratory Vibration Test
video play

Large Image :  Electric Test Equipment Electrodynamic Shaker Testing Table For Laboratory Vibration Test

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-6031
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Electric Test Equipment Electrodynamic Shaker Testing Table For Laboratory Vibration Test is packaged within wooden case.
Delivery Time: 30 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Product Name: Electric Test Equipment Electrodynamic Shaker Testing Table For Laboratory Vibration Test Certification: CE / ISO
Model: ZL-6031 Brand: ZL
Frequency Range: 2-3000 Hz Max. Displacement: 51mm
Max. Velocity: 200 Cm/s Max Exitinag Force: 1000kgf
Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS Etc.
Highlight:

Electric Test Equipment Shaker Table

,

Electrodynamic Shaker Testing Table

,

Laboratory Vibration Test Equipment

Electric Test Equipment Electrodynamic Shaker Testing Table
Professional laboratory vibration test equipment designed for comprehensive testing applications with precise performance specifications.
Performance Specifications
  • Sine: 3000N
  • Random: 3000N
  • Impact force: 6000 N (peak)
  • Frequency range: 2 Hz to 2500 kHz
  • Maximum speed: 2.0m/s
  • Maximum acceleration: 100 G (half sine) when bare armature
  • Maximum payload: 120 kilograms
  • Maximum displacement: Impact: 40mm (p-p)
Temperature and Humidity Specifications
  • G: -20～150℃; 45%～98% RH
  • Z: -40～150℃; 45%～98% RH
  • D: -70～150℃; 45%～98% RH
  • Stability: Temperature: ±0.5℃; Humidity: ±2.5% RH
  • Uniformity: Temperature: ≤±2℃; Humidity: ±3% RH
  • Test machine size: Customizable
Standard Size Specifications
Inner Box Size (W*H*D) Carton Size (W*H*D)
40*50*40cm98*143*93cm
50*60*40cm153*108*93cm
50*60*50cm107*147*111cm
50*75*60cm107*162*121cm
60*85*60cm110*178*108cm
60*85*80cm117*172*141cm
100*100*80cm157*187*141cm
100*96*100cm193*158*149cm
100*100*100cm193*158*153cm
Electromagnetic Vibration Table Specifications
Large Exciting Force (N) Frequency Range (Hz) Large Displacement (mm) Large Attachment (KG) Working Table Straight (mm)
9805～45002570150
15005～45002570150
20002～300040140230
30005～400025120150
30003～300040140230
60005～300025200200
60002～200051300230
100005～300051150240
200005～300051300320

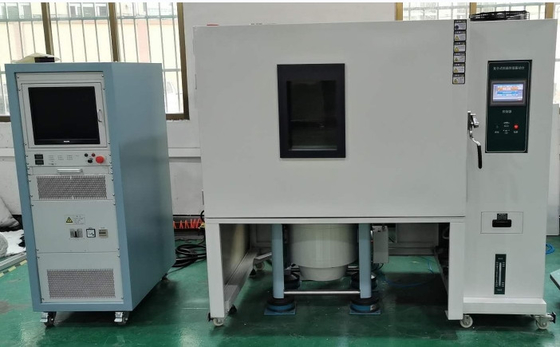

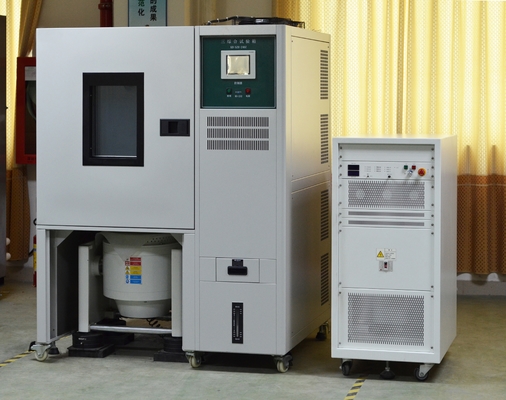

Temperature and Humidity Vibration Comprehensive Test Box
Vertical + horizontal configuration for comprehensive testing applications.
System Composition
The three comprehensive test chamber consists of the following components: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, air duct system, and more.
Electric Test Equipment Electrodynamic Shaker Testing Table For Laboratory Vibration Test 0
