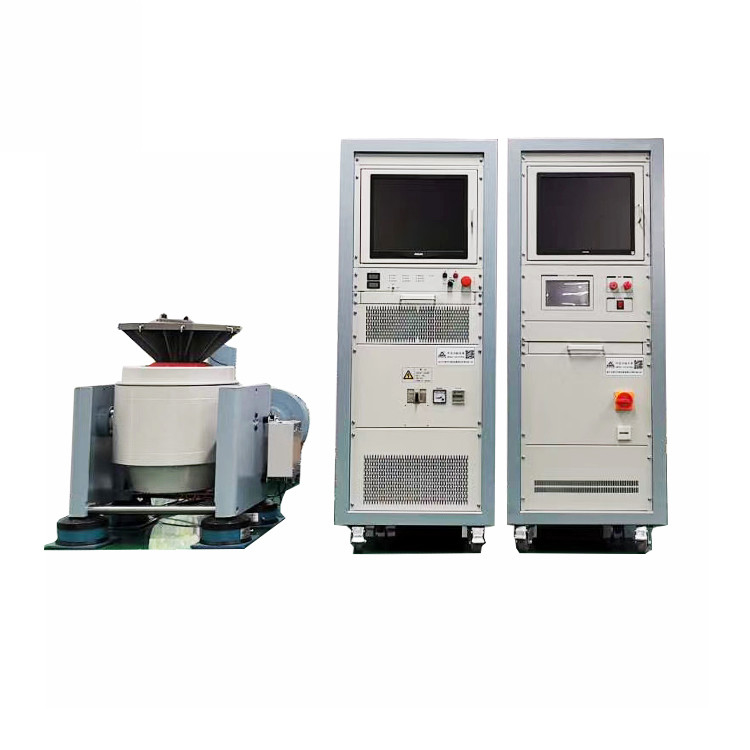

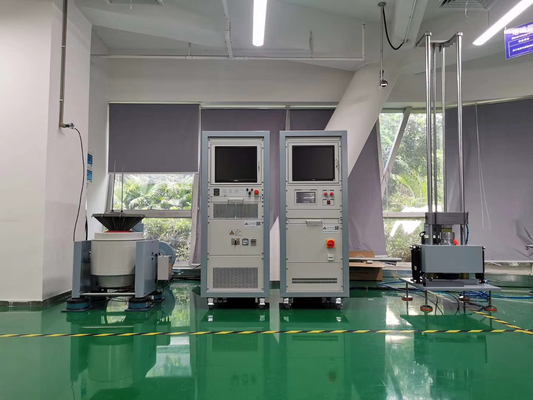

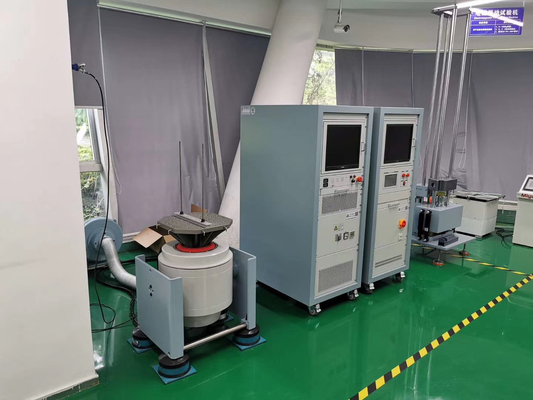

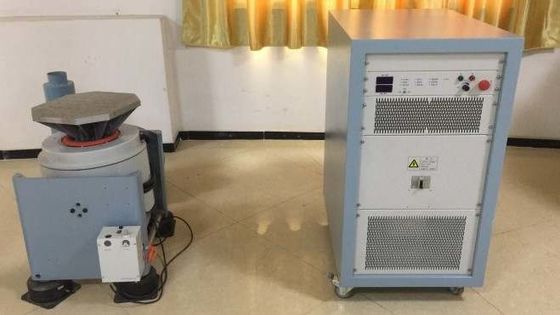

ISO 8813 Packaging Transport Vibration Simulator Dynamic Shaker System

ISO 8813 Packaging Transport Vibration Simulator Dynamic Shaker System
ISO 8813 Packaging Transport Vibration Simulator Dynamic Shaker System
video play

Large Image :  ISO 8813 Packaging Transport Vibration Simulator Dynamic Shaker System

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-6031
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: ISO 8813 Packaging Transport Vibration Simulator Dynamic Shaker System is packaged within wooden case.
Delivery Time: 30 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Product Name: ISO 8813 Packaging Transport Vibration Simulator Dynamic Shaker System Certification: CE / ISO
Model: ZL-6031 Brand: ZL
Max Exiting Force: 32 KN Frequency Range: 2-2500 Hz
Max. Displacement: 51 Mm Max. Velocity: 200 Cm/s
Payload: 500 Kg Power Supply: AC 3-phase 380V / 50Hz
Highlight:

ISO 8813 Packaging Transport Vibration Simulator

,

ISO 8813 Dynamic Shaker System

,

Packaging Dynamic Shaker System

ISO 8813 Packaging Transport Vibration Simulator Dynamic Shaker System
This advanced vibration testing system simulates transport conditions to evaluate packaging durability and product reliability under various vibration scenarios.
Key Features
  • Robust suspension system with linear motion guiding for strong carrying capacity and high stability
  • Excellent amplitude variation performance with precise control
  • High-efficiency D Class power conversion with 3-Sigma peak current for optimized power consumption
  • Rapid self-test diagnostics and chain safeguard systems for enhanced safety and reliability
  • Air gasbag isolation damping eliminates need for special foundation installation
  • Perfect waveform reproduction with minimal vibration transmission
  • Versatile applications for both vertical and horizontal table configurations
  • User-friendly controller with simple operation
Testing Requirements and Selection Guidelines
To select the appropriate vibration testing system, understanding the required excitation force is essential. Evaluation requires knowledge of these testing specifications:
  • Frequency range requirements
  • Maximum acceleration specifications
  • Maximum displacement parameters
  • Maximum speed capabilities
  • Sample quality and fixation methods
Selection of sample fixing method depends on test frequency upper limits and sample size, available in vertical expansion platform or horizontal sliding platform configurations.
Temperature and Humidity Specifications
Temperature and Humidity Range:
G Series: -20°C to 150°C; 45% to 98% RH
Z Series: -40°C to 150°C; 45% to 98% RH
D Series: -70°C to 150°C; 45% to 98% RH
Stability: Temperature: ±0.5°C, Humidity: ±2.5% RH
Uniformity: Temperature: ≤±2°C, Humidity: ±3% RH
Test Machine Size: Customizable dimensions available
Standard Size Specifications
Inner Box Size (W*H*D) Carton Size (W*H*D)
40*50*40cm98*143*93cm
50*60*40cm153*108*93cm
50*60*50cm107*147*111cm
50*75*60cm107*162*121cm
60*85*60cm110*178*108cm
60*85*80cm117*172*141cm
100*100*80cm157*187*141cm
100*96*100cm193*158*149cm
100*100*100cm193*158*153cm
Electromagnetic Vibration Table Specifications
Exciting Force (N) Frequency Range (Hz) Displacement (mm) Attachment (KG) Work Table (mm)
9805-45002570150
15005-45002570150
20002-300040140230
30005-400025120150
30003-300040140230
60005-300025200200
60002-200051300230
100005-300051150240
200005-300051300320

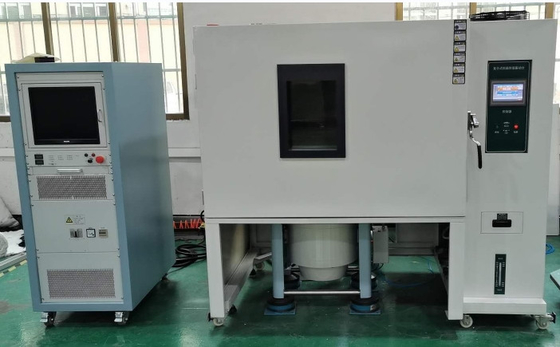

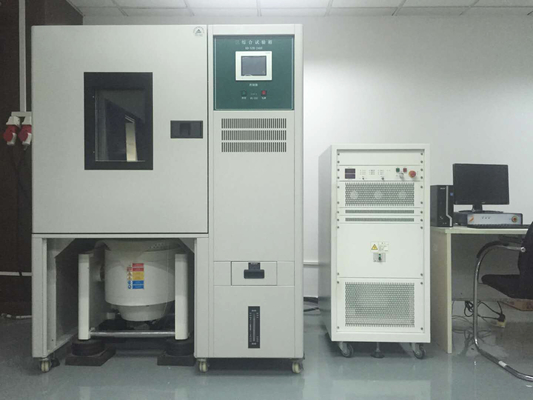

Temperature and Humidity Vibration Comprehensive Test System
This integrated testing solution combines vertical and horizontal vibration capabilities with precise environmental control for comprehensive product testing.
System Configuration
The comprehensive test chamber consists of: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, and air duct system.
ISO 8813 Packaging Transport Vibration Simulator Dynamic Shaker System 0
