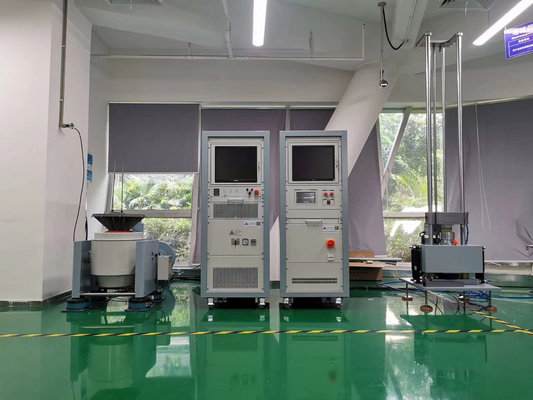

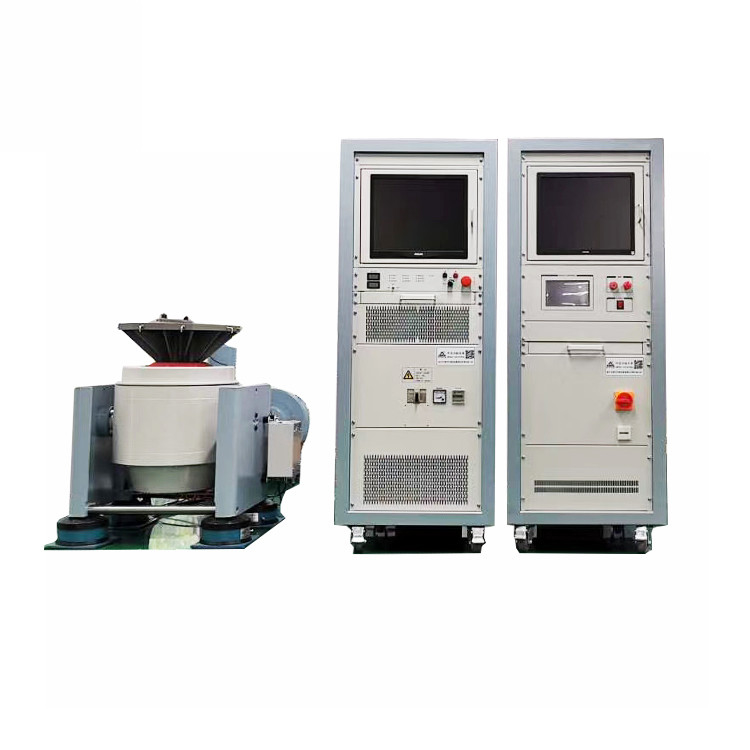

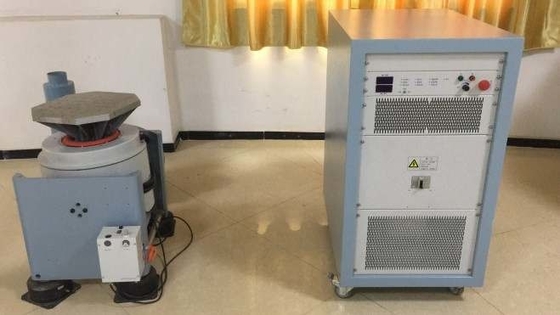

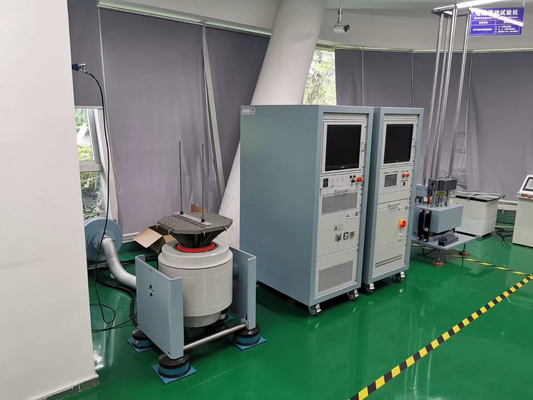

IEC61373 Vibration Table Electrodynamic Vibration Shaker

Large Image : IEC61373 Vibration Table Electrodynamic Vibration Shaker

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6031

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC61373 Vibration Table Electrodynamic Vibration Shaker is packaged within wooden case.
Delivery Time:	30 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	IEC61373 Vibration Table Electrodynamic Vibration Shaker	Certification:	CE / ISO
Model:	ZL-6031	Vibrator Weight:	920 Kg
Vibrator Dimension:	800 X 600 X 710 Mm	Power Amplifier Weight:	320 Kg
Power Amplifer Dimension:	800 X 550 1250 Mm	MOQ:	1 Set
Brand:	ZL
Highlight:	Vibration Table Electrodynamic Shaker , IEC61373 Vibration Shaker , Electrodynamic Vibration Shaker

IEC61373 Vibration Table Electrodynamic Vibration Shaker

Applicable standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.

Applicable industries: automotive, electronics, aviation, shipbuilding, telecommunications, military industry, measuring instruments, etc.

Features:

Robust suspension system and linear motion guidance, strong load-bearing capacity, good guidance function, and high stability;
The load center airbag has high static stiffness and low dynamic stiffness, strong load-bearing capacity, and good amplitude variation performance;
Efficient D-class power switch, 3-sigma peak current, providing optimal power consumption and minimizing harmonic distortion to the greatest extent possible;
Fast self diagnosis with safety interlock, high safety and reliability;
Vibration platform airbag isolation device, no additional foundation required, perfectly reproduces vibration waves and reduces vibration transmission;
Provide horizontal and vertical expansion platforms for different applications;
The controller is easy to operate.

Specification Model List:

Temperature and humidity range: (Details are subject to temperature and humidity control chart)

G:-20～150℃ ；45%～98%

Z:-40～150℃ ；45%～98%

D:-70～150℃ ；45%～98%

2. Stability: Temperature: ±0.5℃ Humidity: ±2.5% RH

3. Uniformity: Temperature: ≤±2℃ Humidity: ±3%RH

4. Test machine size: (can be customized)

Inner Box Size(W×H×D)	Carton Size(W×H×D)
40×50×40cm	98×143×93cm
50×60×40cm	153×108×93cm
50×60×50cm	107×147×111cm
50×75×60cm	107×162×121cm
60×85×60cm	110×178×108cm
60×85×80cm	117×172×141cm
100×100×80cm	157×187×141cm
100×96×100cm	193×158×149cm
100×100×100cm	193×158×153cm

Electromagnetic vibration table specifications:

Large exciting force (N)	Frequency range (Hz)	Large displacement (mm)	Large Attachment (KG)	Working table straight (mm)
980	5～4500	25	70	150
1500	5～4500	25	70	150
2000	2～3000	40	140	230
3000	5～4000	25	120	150
3000	3～3000	40	140	230
6000	5～3000	25	200	200
6000	2～2000	51	300	230
10000	5～3000	51	150	240
20000	5～3000	51	300	320

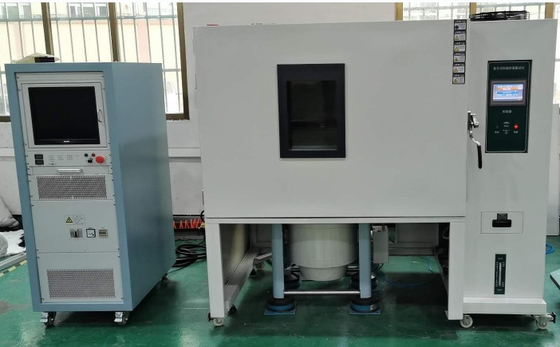

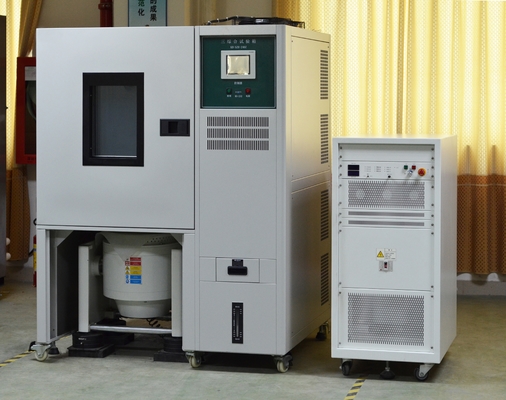

Temperature and humidity vibration comprehensive test box (vertical + horizontal)

constitute:

The three comprehensive test chamber is composed of the following parts: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, air duct system, etc.

IEC61373 Vibration Table Electrodynamic Vibration Shaker 0
