ASTM D-4728 Vibration Testing Machine for Amazon Packaging ISTA-6
Comprehensive Vibration Testing for E-Commerce Packaging
In today's e-commerce landscape, protecting products from transportation damage is essential. The International Safe Transport Association (ISTA) developed ISTA 6 Amazon testing protocols to ensure product safety and reliability during shipping.
Our advanced vibration testing system meets strict ISTA 6 Amazon compliance requirements, providing comprehensive protection for your products throughout the entire transportation process.
ISTA 6 Amazon Testing Protocol
ISTA 6 Amazon simulates the challenges products face in the Amazon supply chain. This rigorous testing protocol subjects products to various vibration curves and levels to identify potential weaknesses and ensure optimal packaging design for maximum product protection.
Advanced Vibration System Features
Our vibration system features sophisticated controls and sensors that accurately replicate transportation-induced vibrations. By simulating real-world shipping environments, we help evaluate product integrity and durability.
Contact us to learn how our vibration system can help you achieve seamless ISTA 6 Amazon compliance for your product shipping needs.
Technical Specifications
Temperature and Humidity Range
- G: -20～150℃; 45%～98% RH
- Z: -40～150℃; 45%～98% RH
- D: -70～150℃; 45%～98% RH
Performance Specifications
- Stability: Temperature: ±0.5℃, Humidity: ±2.5% RH
- Uniformity: Temperature: ≤±2℃, Humidity: ±3% RH
- Test machine size: Customizable
Standard Size Configurations
| Inner Box Size (W*H*D) |
Carton Size (W*H*D) |
| 40*50*40cm | 98*143*93cm |
| 50*60*40cm | 153*108*93cm |
| 50*60*50cm | 107*147*111cm |
| 50*75*60cm | 107*162*121cm |
| 60*85*60cm | 110*178*108cm |
| 60*85*80cm | 117*172*141cm |
| 100*100*80cm | 157*187*141cm |
| 100*96*100cm | 193*158*149cm |
| 100*100*100cm | 193*158*153cm |

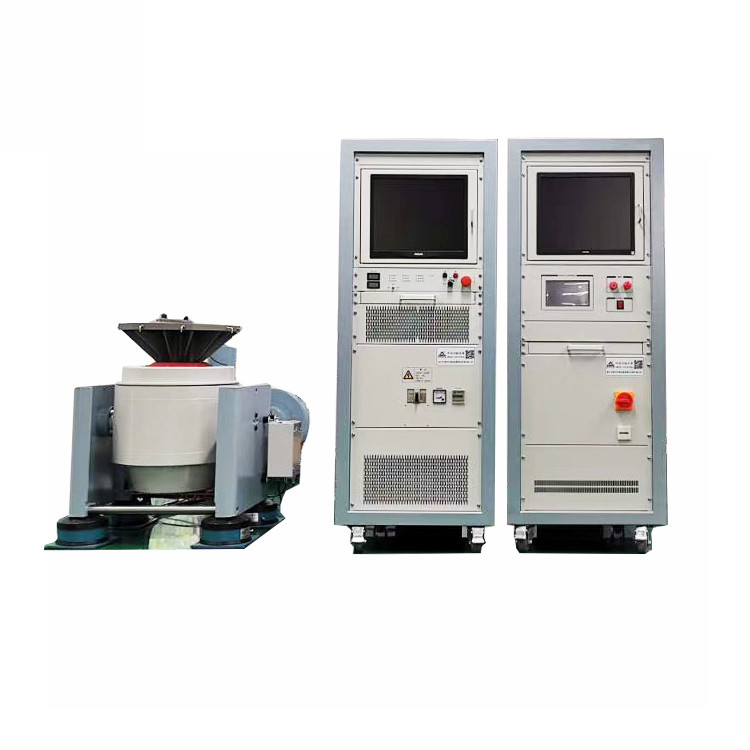

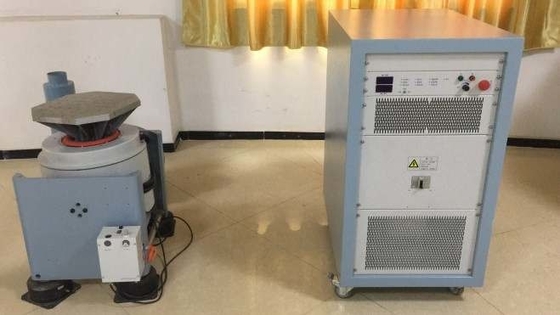

Electromagnetic Vibration Table Specifications
| Force (N) |
Frequency (Hz) |
Displacement (mm) |
Attachment (KG) |
Table Size (mm) |
| 980 | 5～4500 | 25 | 70 | 150 |
| 1500 | 5～4500 | 25 | 70 | 150 |
| 2000 | 2～3000 | 40 | 140 | 230 |
| 3000 | 5～4000 | 25 | 120 | 150 |
| 3000 | 3～3000 | 40 | 140 | 230 |
| 6000 | 5～3000 | 25 | 200 | 200 |
| 6000 | 2～2000 | 51 | 300 | 230 |
| 10000 | 5～3000 | 51 | 150 | 240 |
| 20000 | 5～3000 | 51 | 300 | 320 |

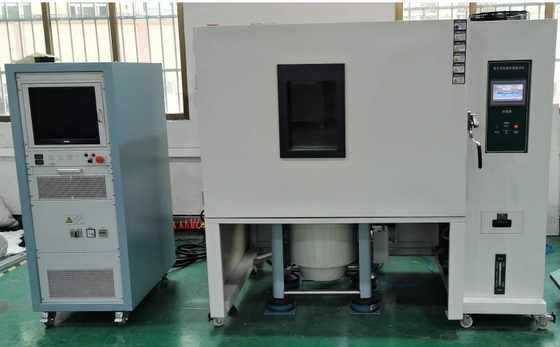

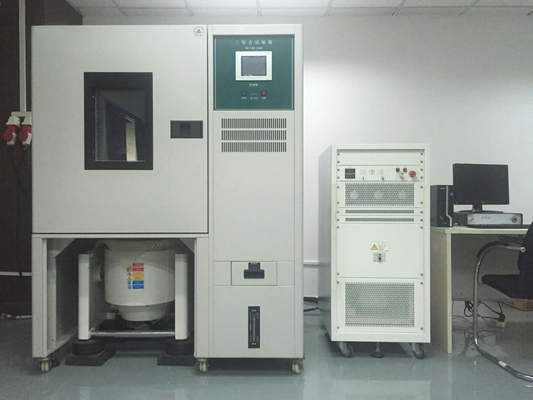

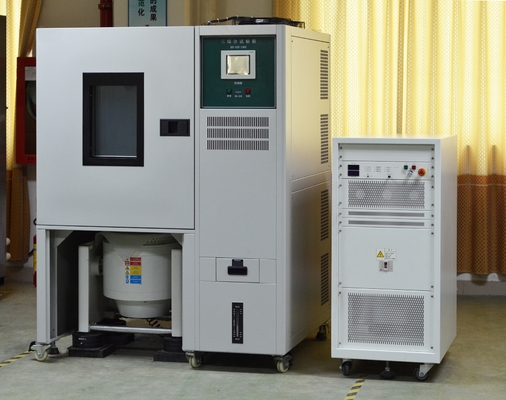

Temperature and Humidity Vibration Test Chamber
The three-comprehensive test chamber includes: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, and air duct system.
