ISTA Vibration Testing System Performs Random Vibration Test

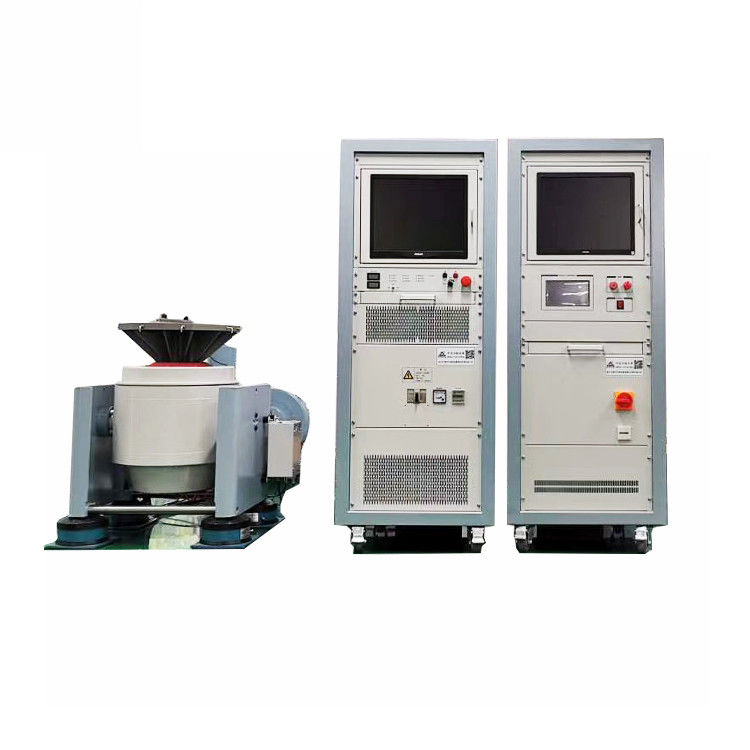

Large Image : ISTA Vibration Testing System Performs Random Vibration Test

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6031

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISTA Vibration Testing System Performs Random Vibration Test is packaged within wooden case.
Delivery Time:	30 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISTA Vibration Testing System Performs Random Vibration Test	Certification:	CE / ISO
Packaging Details:	International Standard Wooden Case	Max Since Force:	1000 Kg.f
Frequency Range:	1-3000 Hz	Max Displacement:	51 Mm
Power Supply:	3-phase AC 380V±10% 50Hz	Sine Force Peak:	3KN (300 Kg.f)
Highlight:	Random Vibration Testing System , ISTA Vibration Testing System

ISTA Vibration Testing System Performs Random Vibration Test

Applications:

Automotive parts and systems - qualification testing
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screenin

Features:

Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;

High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;

Quick self-diagnosis with safety interlock, high safety reliability;

Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;

Provide horizontal and vertical expansion platform for different application;

Simple controller operation.

Specification Model List:

Temperature and humidity range: (Details are subject to temperature and humidity control chart)

G:-20～150℃ ；45%～98%

Z:-40～150℃ ；45%～98%

D:-70～150℃ ；45%～98%

2. Stability: Temperature: ±0.5℃ Humidity: ±2.5% RH

3. Uniformity: Temperature: ≤±2℃ Humidity: ±3%RH

4. Test machine size: (can be customized)

Inner Box Size(W×H×D)	Carton Size(W×H×D)
40×50×40cm	98×143×93cm
50×60×40cm	153×108×93cm
50×60×50cm	107×147×111cm
50×75×60cm	107×162×121cm
60×85×60cm	110×178×108cm
60×85×80cm	117×172×141cm
100×100×80cm	157×187×141cm
100×96×100cm	193×158×149cm
100×100×100cm	193×158×153cm

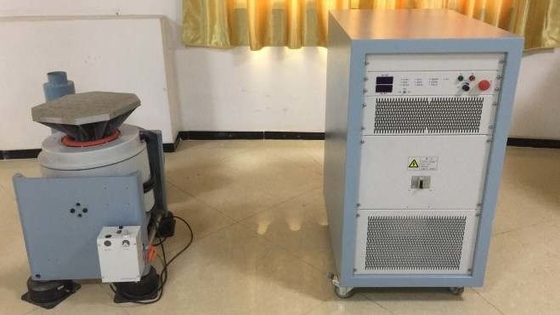

Electromagnetic vibration table specifications:

Large exciting force (N)	Frequency range (Hz)	Large displacement (mm)	Large Attachment (KG)	Working table straight (mm)
980	5～4500	25	70	150
1500	5～4500	25	70	150
2000	2～3000	40	140	230
3000	5～4000	25	120	150
3000	3～3000	40	140	230
6000	5～3000	25	200	200
6000	2～2000	51	300	230
10000	5～3000	51	150	240
20000	5～3000	51	300	320

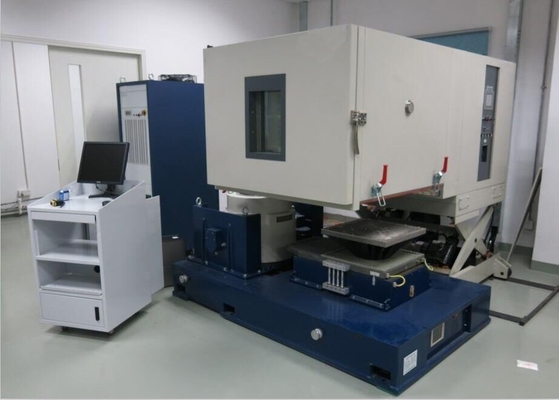

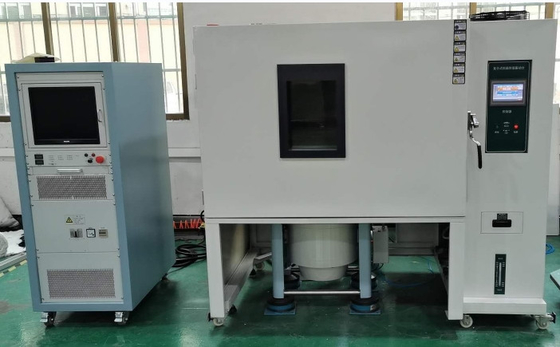

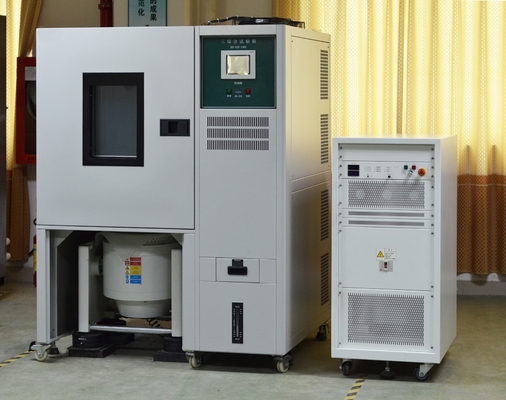

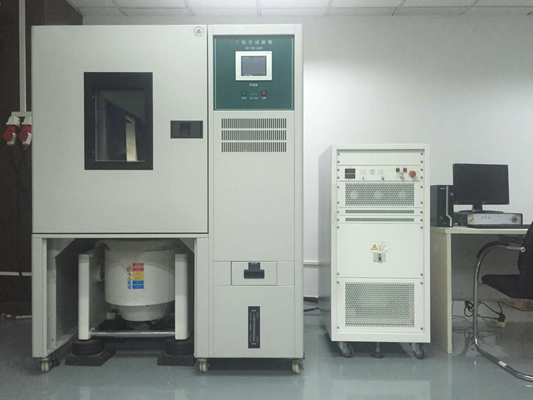

Temperature and humidity vibration comprehensive test box (vertical + horizontal)

constitute:

The three comprehensive test chamber is composed of the following parts: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, air duct system, etc.

ISTA Vibration Testing System Performs Random Vibration Test 0
