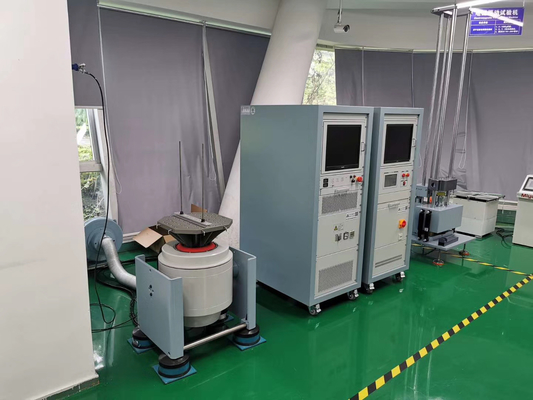

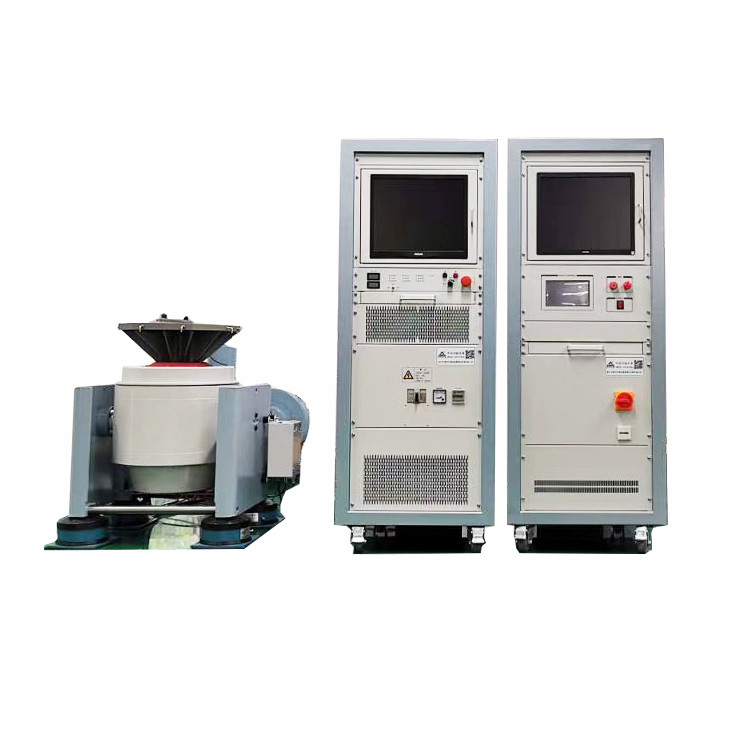

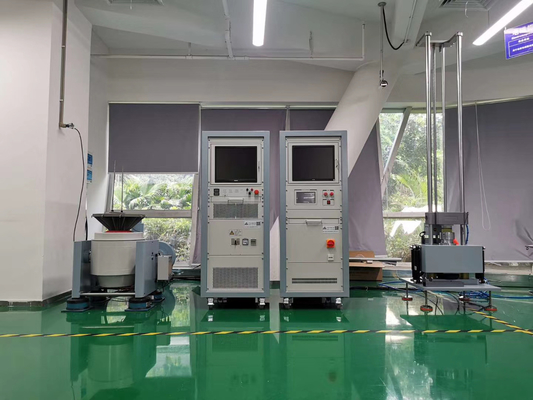

UN38.3 Battery Testing Machine , Electrodynamic Vibration Shaker System

UN38.3 Battery Testing Machine , Electrodynamic Vibration Shaker System
UN38.3 Battery Testing Machine , Electrodynamic Vibration Shaker System
video play

Large Image :  UN38.3 Battery Testing Machine , Electrodynamic Vibration Shaker System

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-6031
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: UN38.3 Battery Testing Machine , Electrodynamic Vibration Shaker System is packaged within wooden case.
Delivery Time: 30 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Product Name: UN38.3 Battery Testing Machine , Electrodynamic Vibration Shaker System Place Of Origin: Dongguang, Guangdong,China
Price: Negotiable Supply Ability: 15 Sets / Month
Delivery Time: 45 Working Days Cooling Method: Air Cool
Horizontal Slip Table: Available Certification: CE / ISO
Highlight:

UN38.3 Battery Testing Machine

,

Electrodynamic Vibration Shaker System

,

Vibration Shaker System

UN38.3 Battery Testing Machine, Electrodynamic Vibration Shaker System
Temperature and Humidity Vibration Three Comprehensive Testing Chamber
Vibration testing is performed to determine if a product can withstand the rigors of its intended use. ZL is a professional manufacturer of high-performance vibration shakers including electrodynamic shakers and repetitive shock vibration tables.
We customize vibration test systems to meet your specific requirements with numerous custom options available for electrodynamic vibration shakers.
Specification Model List
Temperature and humidity range (details subject to temperature and humidity control chart):
  • G: -20～150℃; 45%～98% RH
  • Z: -40～150℃; 45%～98% RH
  • D: -70～150℃; 45%～98% RH
Performance specifications:
  • Stability: Temperature: ±0.5℃, Humidity: ±2.5% RH
  • Uniformity: Temperature: ≤±2℃, Humidity: ±3% RH
  • Test machine size: Customizable
Test Chamber Dimensions
Inner Box Size (W*H*D) Carton Size (W*H*D)
40*50*40cm98*143*93cm
50*60*40cm153*108*93cm
50*60*50cm107*147*111cm
50*75*60cm107*162*121cm
60*85*60cm110*178*108cm
60*85*80cm117*172*141cm
100*100*80cm157*187*141cm
100*96*100cm193*158*149cm
100*100*100cm193*158*153cm

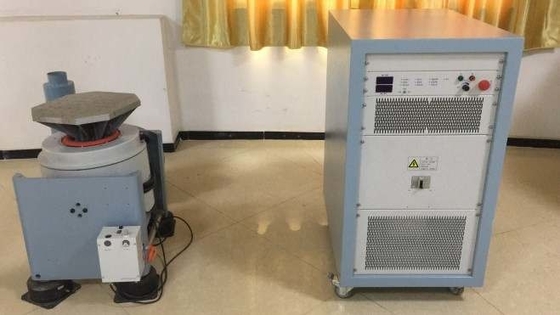

Electromagnetic Vibration Table Specifications
Large Exciting Force (N) Frequency Range (Hz) Large Displacement (mm) Large Attachment (KG) Working Table Straight (mm)
9805～45002570150
15005～45002570150
20002～300040140230
30005～400025120150
30003～300040140230
60005～300025200200
60002～200051300230
100005～300051150240
200005～300051300320

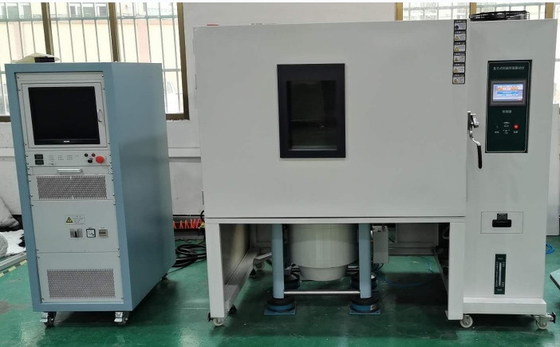

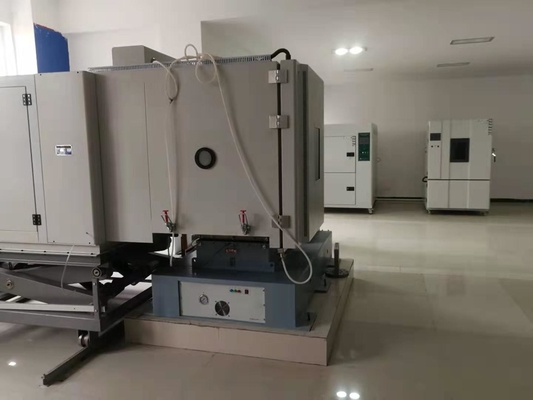

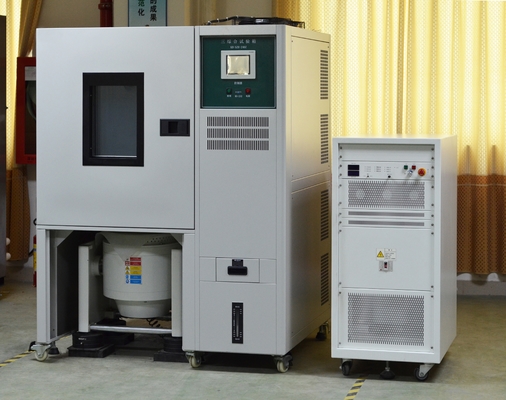

Temperature and Humidity Vibration Comprehensive Test Box (Vertical + Horizontal)
System Composition:
The three comprehensive test chamber consists of the following components: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, and air duct system.
UN38.3 Battery Testing Machine , Electrodynamic Vibration Shaker System 0
