Flexible IEC 62133 Electromagnetic Vibration Shaker System For Battery

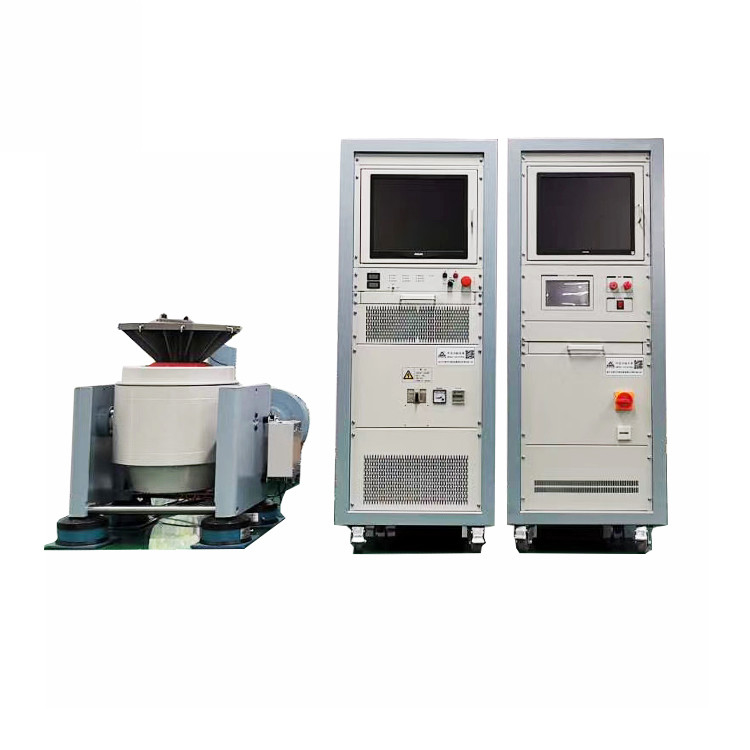

Large Image : Flexible IEC 62133 Electromagnetic Vibration Shaker System For Battery

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6031

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	IEC 62133 Electromagnetic Vibration shaker System For Battery is packaged within wooden case.
Delivery Time:	30-45 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	IEC 62133 Electromagnetic Vibration Shaker System For Battery	Brand:	ZL
Model:	ZL-6031	Place Of Origin:	Dongguang, China
Axis:	XYZ	Vertical Payload:	200 Kg
Max. Acceleration:	100G	Power Supply:	AC 380V 50Hz
Shaker Size:	800600710 Mm
Highlight:	Battery Electromagnetic Vibration Shaker System , Flexible Electromagnetic Vibration Shaker System , IEC 62133 Electromagnetic Vibration Shaker System

IEC 62133 Electromagnetic Vibration shaker System For Battery

Introduction:

Vibration Test Systems are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the distribution or in-use environment. ZL’s Vibration Test Equipment are simple to operate safely and can perform a wide range of vibration tests in accordance with government, industry and corporate specifications.

Vibration Testing is performed to determine if a product can withstand the rigors of its intended use. ZL is a professional manufacturer for high-performance vibration shaker including electrodynamic shakers and repetitive shock vibration tables.

Specification Model List:

Temperature and humidity range: (Details are subject to temperature and humidity control chart)

G:-20～150℃ ；45%～98%

Z:-40～150℃ ；45%～98%

D:-70～150℃ ；45%～98%

2. Stability: Temperature: ±0.5℃ Humidity: ±2.5% RH

3. Uniformity: Temperature: ≤±2℃ Humidity: ±3%RH

4. Test machine size: (can be customized)

Inner Box Size(W×H×D)	Carton Size(W×H×D)
40×50×40cm	98×143×93cm
50×60×40cm	153×108×93cm
50×60×50cm	107×147×111cm
50×75×60cm	107×162×121cm
60×85×60cm	110×178×108cm
60×85×80cm	117×172×141cm
100×100×80cm	157×187×141cm
100×96×100cm	193×158×149cm
100×100×100cm	193×158×153cm

Electromagnetic vibration table specifications:

Large exciting force (N)	Frequency range (Hz)	Large displacement (mm)	Large Attachment (KG)	Working table straight (mm)
980	5～4500	25	70	150
1500	5～4500	25	70	150
2000	2～3000	40	140	230
3000	5～4000	25	120	150
3000	3～3000	40	140	230
6000	5～3000	25	200	200
6000	2～2000	51	300	230
10000	5～3000	51	150	240
20000	5～3000	51	300	320

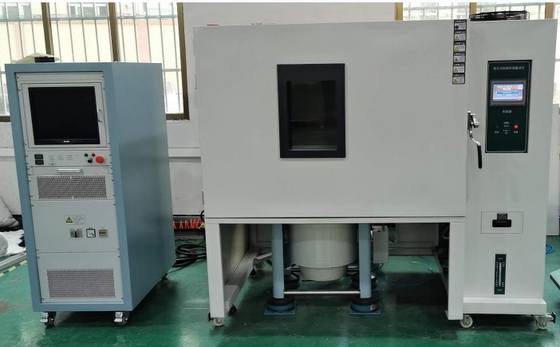

Temperature and humidity vibration comprehensive test box (vertical + horizontal)

constitute:

The three comprehensive test chamber is composed of the following parts: test chamber box, motion connection system, control system, refrigeration/dehumidification system, heating/humidification system, air duct system, etc.

Flexible IEC 62133 Electromagnetic Vibration Shaker System For Battery 0
