Rubber Two Roll Mill Open Mixing Mill Lab Two Roll Mixing Mill For Plastics

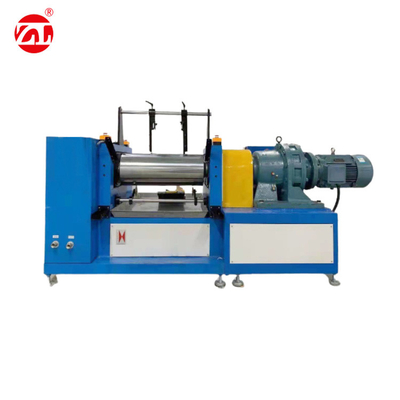

Large Image : Rubber Two Roll Mill Open Mixing Mill Lab Two Roll Mixing Mill For Plastics

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3018

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Rubber Two Roll Mill Open Mixing Mill Lab Two Roll Mixing Mill For Plastics will be packaged within wooden case.
Delivery Time:	20-30 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Rubber Two Roll Mill	Model:	ZL-3018
Drum Diameter:	300mm	Drum Length:	720mm
Front Roller Line Speed:	Front Roller Speed 16 Rpm, Rear Roller 19 Rpm	Drum Speed Ratio:	1:1.25
The Maximum Roller Distance:	0.1 ~ 16mm Adjustable	Feeding Amount At One Tiem:	1-15kg
Main Motor Power:	22KW Or 30KW Optional	Main Motor Speed:	19 Rpm
Temperature Control System:	Heat Generated By Friction, Cooled By Tap Water	Warranty Period:	1 Year
Highlight:	Open Mixing Two Roll Mill , Plastics Two Roll Mill

Rubber Two Roll Mill Open Mixing Mill Lab Two Roll Mixing Mill For Plastics

This laboratory two roll mixing mill is designed for polymer mixing applications in the rubber and plastics industry, including PVC and color master batch processing. The equipment features rolls, bearings, gap adjusting mechanisms, electric control systems, and comprehensive safety devices.

Technical Documentation

Rubber Machine Catalog (PDF)
ZL-3018 Two Roll Mill Specifications (PDF)

Applications

Widely used in rubber and plastics industries for polymer mixing processes, including PVC and color master batch production. The system comprises rolls, bearings, gap adjusting devices, electric control systems, and safety features.

Technical Parameters

Model	ZL-3018-76	ZL-3018-120	ZL-3018-160	ZL-3018-200	ZL-3018-230	ZL-3018-300	ZL-3018-400
Diameter of roll (mm)	76	120	160	200	230	300	400
Length of roller face (mm)	300	350	350	500	650	650	900
Mixing Capacity (kg)	0.002-0.6	0.002-2	0.002-2.8	0.002-5	0.005-10	1-15	5-30
Front roll surface speed (rpm)	19	19	19	19	19	19	19
Friction ratio	1:1.30	1:1.35	1:1.35	1:1.35	1:1.27	1:1.27	1:1.27
Roll gap range (mm)	0-3	0-6	0-6	0-8	0-12	0-12	0-15
Driving Power (KW)	1kw	1.5kw	2.2 KW (plastic) 7.5KW (rubber)	7.5kw (plastic) 11kw (rubber)	11KW(plastic /silicone) 15KW (rubber)	15KW(plastic /silicone) 22KW(rubber) 30KW (Customize)	30KW(plastic /silicone) 40KW (rubber)
Machine weight (kg)	160	460	660	860	1960	2960	3800

Additional Specifications:
Heating Mode: Electricity heating, Oil Heating (option)
Cooling Mode: Water Cooling (option)
Roll Temperature: Room temperature - 300℃
Roll Hardness: HRC 50 ~ 60
Temperature Accuracy: ± 2 ℃ (high accuracy PID micro computer controller)
Safety device: 6 safety buttons with optional safety guard
Power: 380V 3 phase 50-60hz

Machine Purpose

This laboratory mixing mill ensures products meet customer quality and color requirements. Experimental results and ratios obtained from this equipment are directly applied to production lines. The machine uniformly mixes raw materials and ingredients for testing purposes.

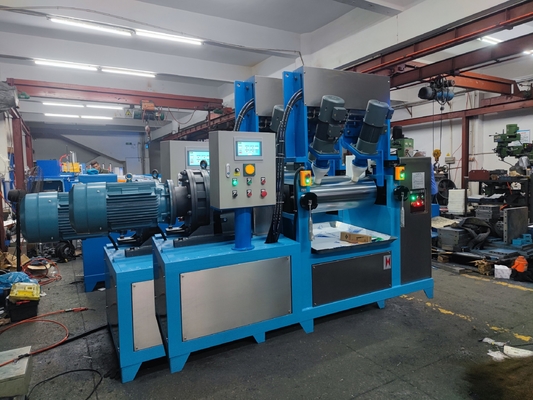

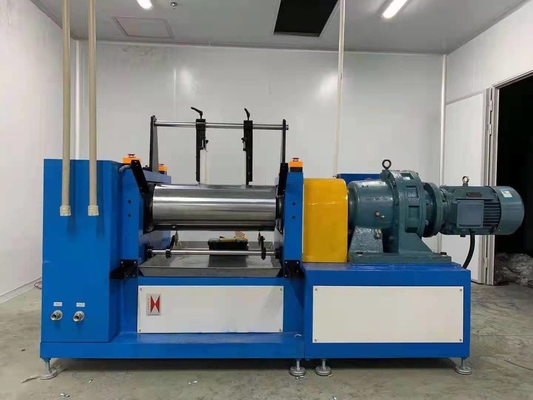

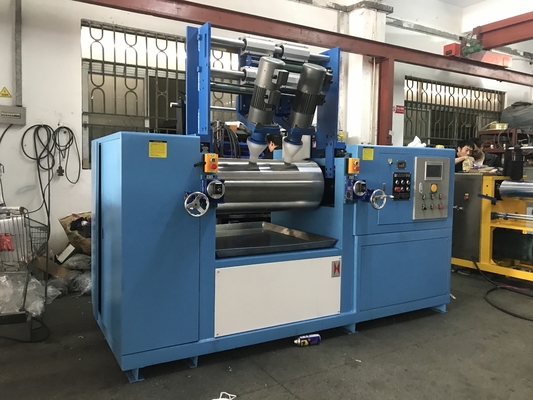

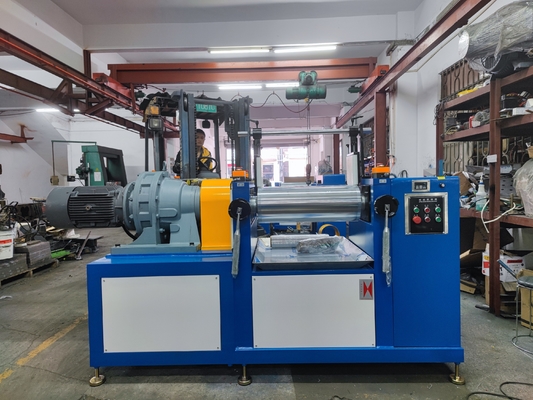

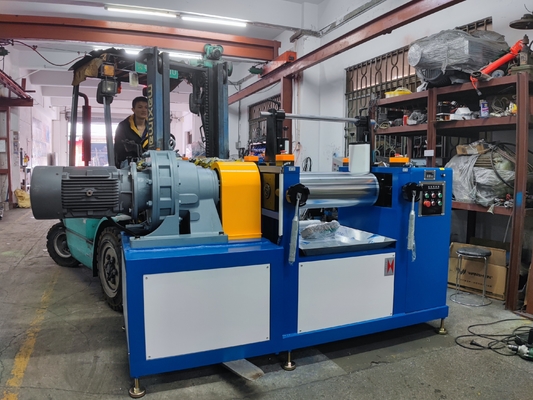

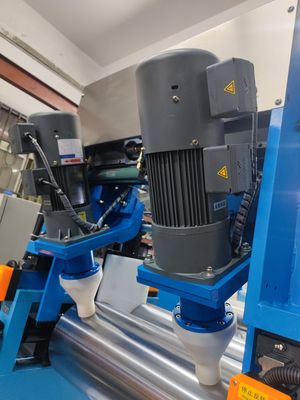

Machine Details

Why Choose Us?

About Our Company

Zhongli Instrument Technology Co., Ltd, headquartered in Dongguan, Guangdong, China, has been manufacturing laboratory testing equipment since 2007. With over 13 years of industry experience, our products are exported to more than 80 countries worldwide, with particular popularity in European and American markets.

Our equipment portfolio serves multiple industries including rubber and plastics, food, packaging, and electronics. These solutions are suitable for scientific research units, quality inspection institutions, and academic applications.

Beyond standard machines, our R&D team provides customization services to meet specific customer requirements.
