Product Details:
Payment & Shipping Terms:
|
| Product Name: | Small Scale Voc And Formaldehyde Emission Test Chamber For Leathers Testing | Model: | ZL-6038 |
|---|---|---|---|
| Environment Temperature: | 5℃~80℃ | Environment Humidity: | ≤90%RH |
| Environment Requirements: | With No Pollution Source,TVOC≤500ug/m³ | Humidity Range: | 40~60%RH (20~30℃) |
| Pressure: | 10 ±5pa | Temperature Fluctuation: | ±0.3℃ |
| Temperature Deviation: | ±0.5℃ | ||
| High Light: | Formaldehyde Emission Test Chamber,Small Scale Voc Environmental Test Chamber,5pa Environmental Test Chamber |
||

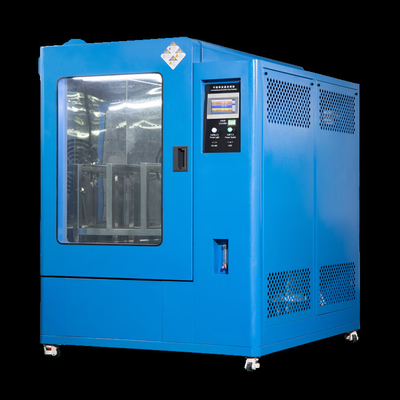

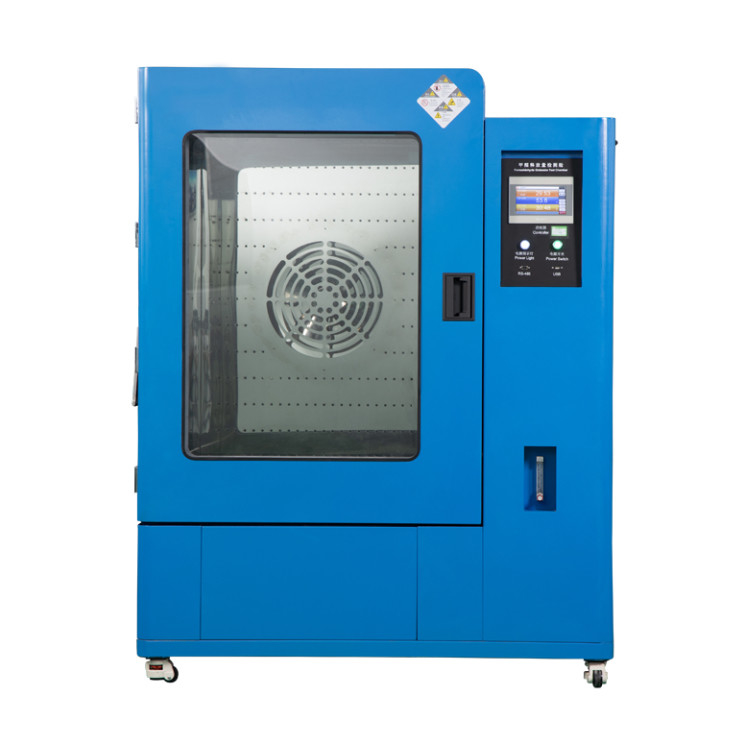

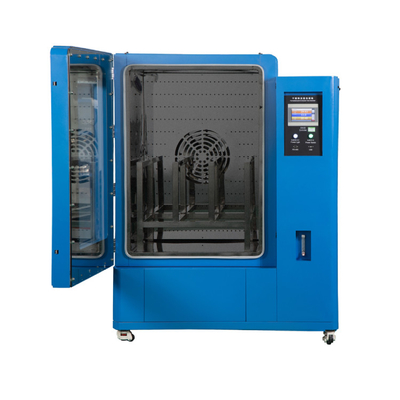

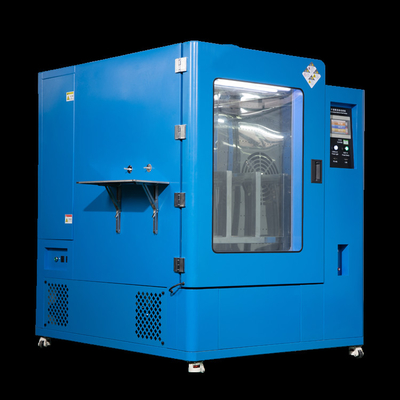

Small Scale Voc and Formaldehyde Emission Test Chamber for Leathers Testing
Environmental Test Chamber.pdf
The internal surface of chamber is made using SUS#304stainless steel.
The Formaldehyde Emission Test Chamber is a great choice to test formaldehyde,acetaldehyde,benzene derivatives and other low boiling point VOCs.However,it’s unsuited for high boiling point VOCs and polar compounds,like tetradecane and 4-phenyl-1-cyclohexene.
Application:
1.The emission chamber offers standard testing environment to determine the hazardous gas emission rate and emission characteristics of interior decoration materials and products.Based on the results,we can:
•Determine the impact of environmental variables on the emission rate and emission rate and emission characteristics.
•Classify the level of products and materials according to the emission characteristics.
•Develop and adjust indoor air pollution models
•Evaluate the IAQ (Indoor Air Quality) according to the pollution data and test report
2. As being a functional equipment of formaldehyde emission test,the emission chamber finds a wide application in interior decoration, office furniture,engineered wood,carpets,plastics,leather,textile,toys and more.
Technical Parameters:
| Model | ZL-6038-50 | ZL-6038-100 | ZL-6038--250 | ZL-6038-500 | ZL-6038-1000 | ||
| Environment Temperature | 5℃~80℃ | ||||||
| Environment Humidity | ≤90%RH | ||||||
| Environment Requirements | With no pollution source,TVOC≤500ug/m³ | ||||||
|
Inner Size (W*H*D) |
300*300 *560 |
400*400 *630 |
600*600 *700 |
700*700 *1020 |
1000*1100 *910 |
||
| Temperature Range | 15℃~40℃,more than 70℃ or 250℃ for high-temperature cleaning | ||||||
| Humidity Range | 40~60%RH (20~30℃) | ||||||
| Pressure | 10 ±5pa | ||||||
| Temperature Fluctuation | ±0.3℃ | ||||||
| Temperature Deviation | ±0.5℃ | ||||||
| Humidity Fluctuation | ±2.5%RH | ||||||
| Humidity Deviation | 3% | ||||||
| Air Exchange Rate | 0.2-5 times/h ±5%(0.2-3times/h ±5% optional) | ||||||
| Air Velocity | 0.1m/s-0.3m/s | ||||||
| Power Supply | AC 380V/50Hz/Three-phase four-wire/five-wire | ||||||
| Start-Up Power | 5kw | 6kw | 8kw | 10kw | 15kw | ||
| Running Power | 3kw | 3.4kw | 5kw | 6kw | 7kw | ||
| Background Concentration of Formaldehyde | Less than 15ug/m³,minimum value:6ug/m³ | ||||||
| Recovery Rate | More than 90% | ||||||
| Air Purification System | Standard configurations | ||||||
