| Product Name: | IEC62108 PCT HALT HAST High Pressure Accelerated Aging Testing Chamber | Model: | ZL-6037 |
|---|---|---|---|
| Standard: | GB/T 29309-2012, IEC62108 | Temperature Range: | RT-132℃ |
| Test Box Size: | ∮350 Mm X L500 Mm), Round Test Box | Overall Dimensions: | 1150x 960 X 1700 Mm (W * D * H) Vertical |
| Inner Barrel Material: | Stainless Steel Plate Material (SUS# 304 5 Mm) | Outer Barrel Material: | Cold Plate Paint |
| Insulation Material: | Rock Wool And Rigid Polyurethane Foam Insulation | ||
| High Light: | PCT Accelerated Aging Testing Chamber,IEC 62108 Environmental Test Chamber |
||

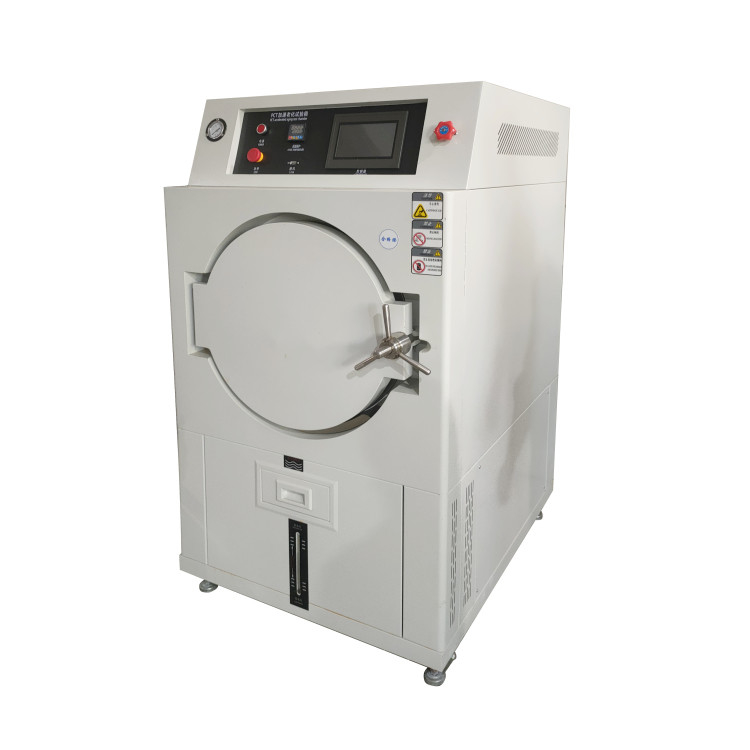

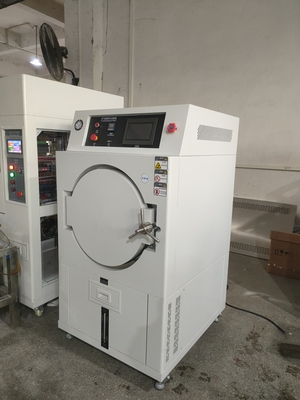

IEC62108 PCT HALT HAST High Pressure Accelerated Aging Testing Chamber
Application:
Pressure accelerated aging tester is widely applied to the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.
Test Chamber Material:
| Temperature Range | RT-132℃ |
| Test Box Size | ∮350 mm x L500 mm), round test box |
| Overall Dimensions | 1150x 960 x 1700 mm (W * D * H) vertical |
| Inner Barrel Material | Stainless steel plate material (SUS# 304 5 mm) |
| Outer Barrel Material | Cold plate paint |
| Insulation Material | Rock wool and rigid polyurethane foam insulation |
| Steam Generator Heating Tube | Finned heat pipe-shaped seamless steel tube electric heater (platinum plating on the surface, anti-corrosion) |
Pressure system diagram
3. Test chamber material:
3.0 Temperature range: RT-132℃
3.1 Test box size: ∮350 mm x L500 mm), round test box
3.2 Overall dimensions: 1150x 960 x 1700 mm (W * D * H) vertical
3.3 Inner barrel material: stainless steel plate material (SUS# 304 5 mm)
3.4 Outer barrel material: cold plate paint
3.5 Insulation material: rock wool and rigid polyurethane foam insulation
3.6 Steam generator heating tube: finned heat pipe-shaped seamless steel tube electric heater (platinum plating on the surface, anti-corrosion)

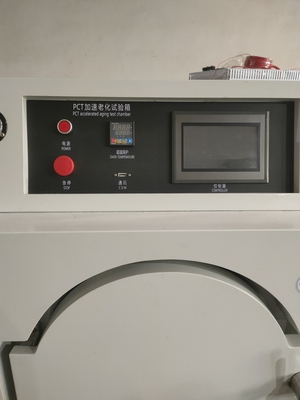

3.7 Control system:
a. Use Japanese-made RKC microcomputer to control the saturated steam temperature (using PT-100 platinum temperature sensor).
b. The time controller adopts LED display.
c. Use pointer to display pressure gauge.
3.8 Mechanical structure:

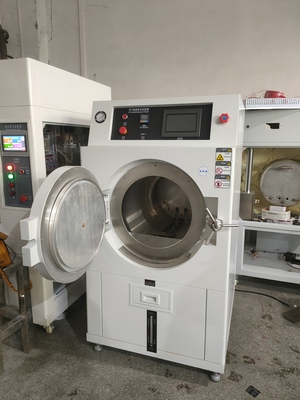

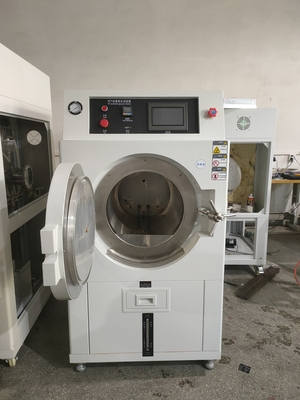

a. Round inner box, stainless steel round test inner box structure, in line with industrial safety container standards.
b. The patented packing design makes the door and the box more closely integrated, which is completely different from the traditional extrusion type, which can extend the packing life.
c. Critical point LIMIT mode automatic safety protection, abnormal reason and fault indicator display.
3.9 Security protection:
a. Imported high temperature resistant sealed solenoid valve adopts double loop structure to ensure no pressure leakage.
b. The whole machine is equipped with over-pressure protection, over-temperature protection, one-key pressure relief, manual pressure relief multiple safety protection devices, to ensure the user's use and safety to the greatest extent.
c. Back pressure door lock device, the door of the test chamber cannot be opened when there is pressure inside the test chamber.
4. Other accessory accessories
4.1 1 set of test racks
4.2 Sample tray
5. Power supply system:
5.1 The fluctuation of the system power supply shall not exceed ±10
5.2 Power supply: single-phase 220V 20A 50/60Hz
6. Environment & Facilities:
6.1 Allowable working environment temperature 5℃~30℃
6.2 Experimental water: pure water or distilled water
