Desktop PCB Vacuum Drying Oven Large Stainless Steel 400W

Large Image : Desktop PCB Vacuum Drying Oven Large Stainless Steel 400W

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6026B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Desktop Stainless Steel PCB Vacuum Drying Oven Large Vacuum Oven is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Desktop Stainless Steel PCB Vacuum Drying Oven Large Vacuum Oven	Temperature Range:	10-200℃
Wave Degree:	±1%	Display Accuracy:	1℃
True Space:	<133Pa	Studio Size:	300300275 MM (depthwidthheight Mm)
Approximate Dimensions:	550640540 MM (depthwidthheight Mm)	Heating Power:	400W
Power Supply:	220V 50Hz
Highlight:	PCB Vacuum Drying Oven , Desktop PCB Vacuum Drying Oven , Stainless Steel Vacuum PCB Drying Oven

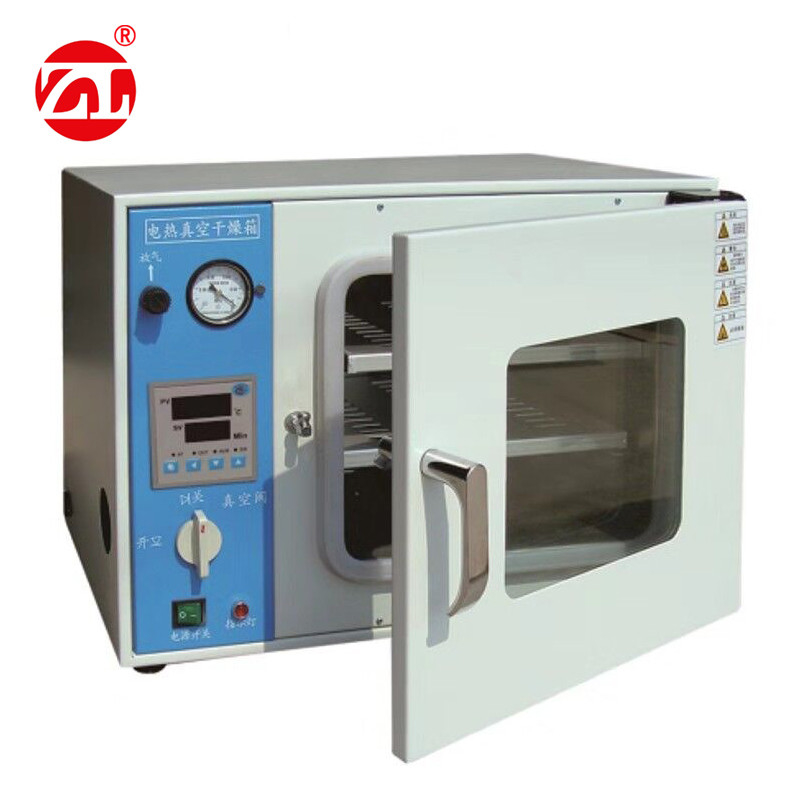

Desktop PCB Vacuum Drying Oven

Professional Stainless Steel Vacuum Drying Solution

This digital display vacuum drying oven, also known as a stainless steel vacuum oven, is engineered for drying heat-sensitive, easily decomposable, and oxidizable substances. The rectangular workspace maximizes effective volume while maintaining precise temperature control through microcomputer technology.

Technical Specifications

Temperature Range	10-200℃
Wave Degree	±1%
Display Accuracy	1℃
True Space	<133Pa
Studio Size	300300275 mm (DWH)
Approximate Dimensions	550640540 mm (DWH)
Heating Power	400W
Power Supply	220V 50Hz
Partition Configuration	1 block
Net Weight	32 kg
Gross Weight (Packaged)	40 kg
Packing Size	550640540 mm (DWH)

Key Features & Benefits

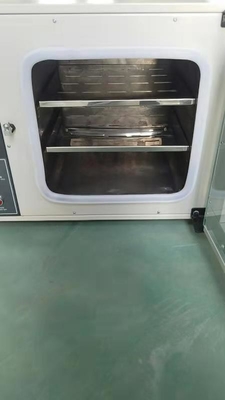

Rectangular workspace maximizes effective volume with precise microcomputer temperature control

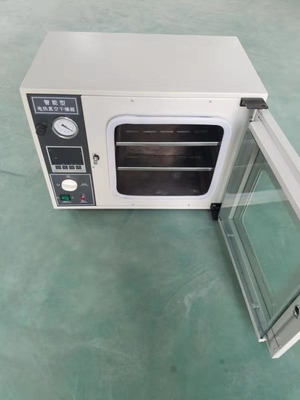

Toughened, bulletproof double-layer glass door for clear observation of internal processes
Adjustable door closure with integrated silicone seal ensures optimal vacuum integrity
Durable stainless steel construction for long-lasting performance
Oxygen-free or inert gas environment prevents oxidation during storage, heating, and drying
50% faster heating time compared to traditional vacuum drying ovens
Vacuum environment lowers liquid boiling points, ideal for heat-sensitive materials
Efficient drying of challenging samples including colloids, powders, and granular materials
Leaves no residue after complete drying of mechanical components and porous samples
Enhanced safety through vacuum/inert conditions, eliminating thermal explosion risks
Powdered samples remain undisturbed without air circulation disturbance
