Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Quality Electric Steam Aging Tester Equipment / Steam Accelerated Aging Testing Chamber | Test Basket.W×H×D(mm): | 500 X 400 X 170 MM |
|---|---|---|---|
| External Dim.W×H×D(mm): | 600×500×420 MM | Heating Systems: | Chrome Steel Strip Wire Heater |
| Controller: | Digital Electronic Indicators Controller+S.S.R.With P.I.D & Timer Max 9,990mins | Safety Devices: | Overheating Prevention Protector, Water Shortage Protector, Steam Outlet Hole |
| Steam Temperature: | 97 ℃ | Water Level Control: | Low Water Level Alarm Function |
| Power Supply: | 1Ø 220V±10% 50Hz 1.0KW | ||
| High Light: | Electric Steam Aging Tester Equipment,Steam Accelerated Aging Testing Chamber,1.0 KW Steam Aging Tester Equipment |
||

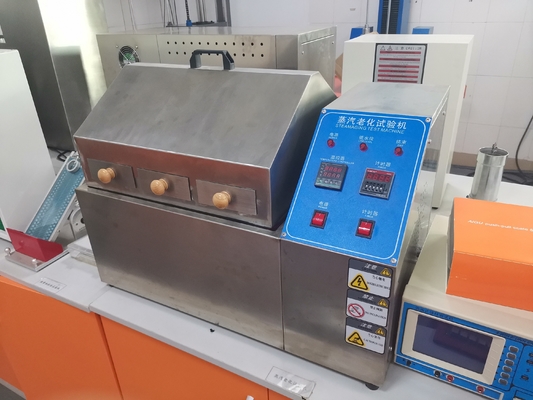

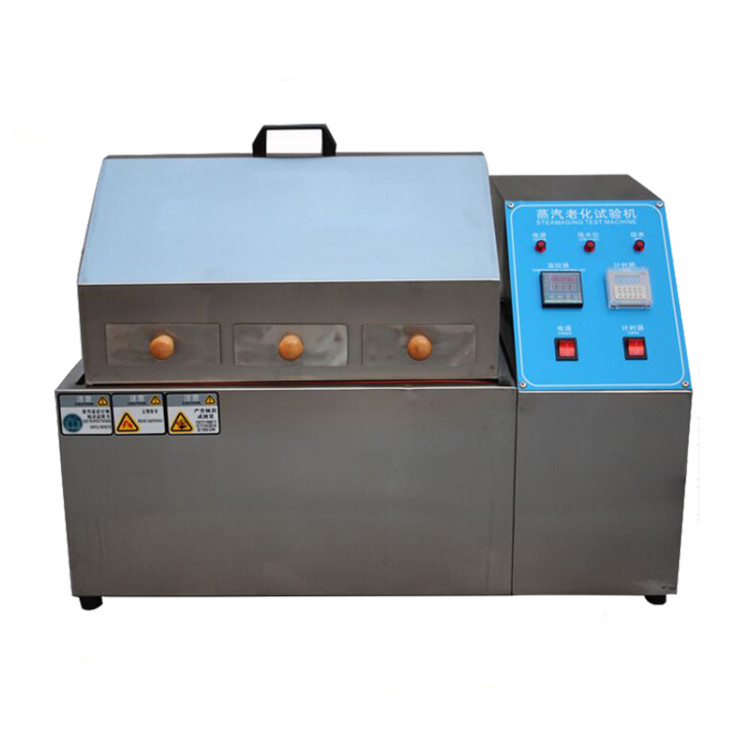

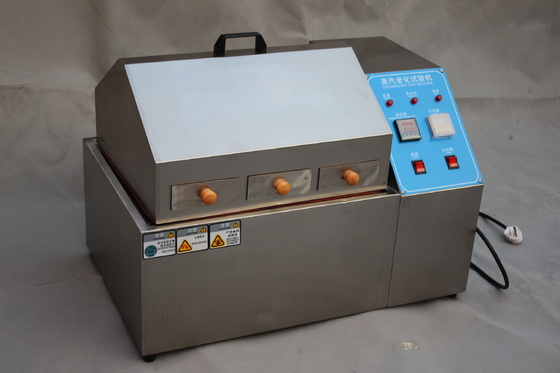

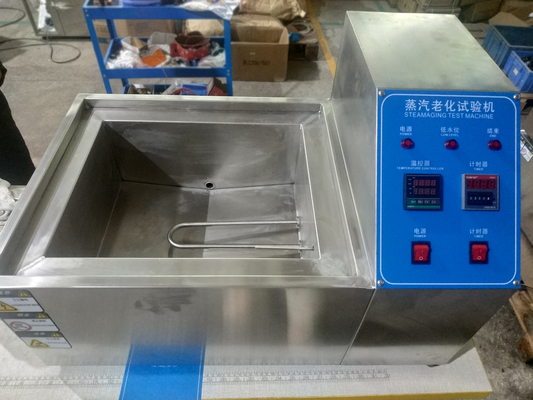

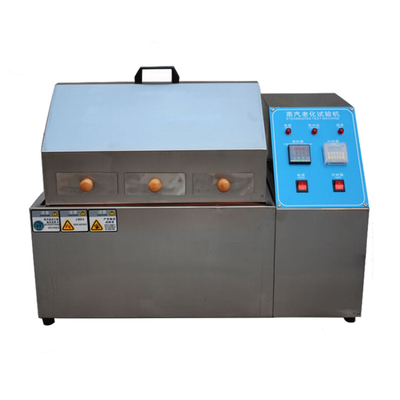

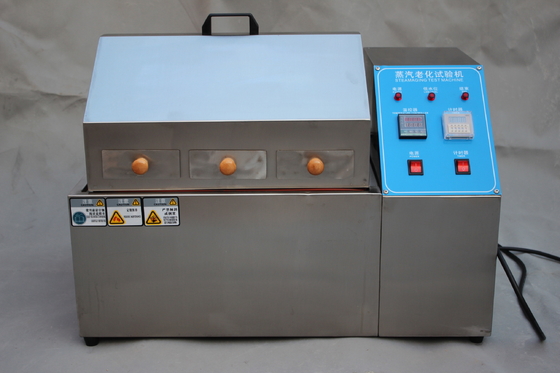

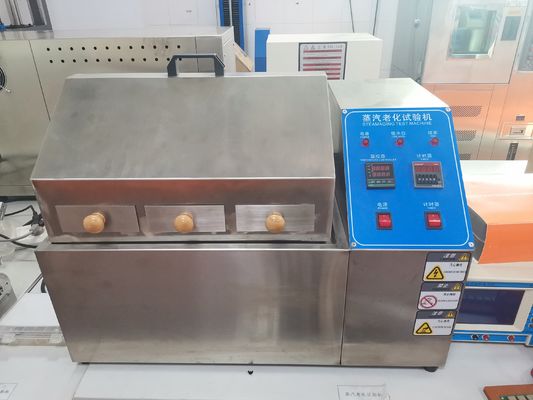

High quality Electric Steam Aging Tester Equipment / Steam Accelerated Aging Testing Chamber
Description:
Steam aging tester is used to test and determine the parameters, performance of electrical, electronics, other products and materials for high temperature, low temperature, or the temperature of the thermostat test environmental changes.
And also is used in electronic connector, semiconductor IC, transistors, diodes, LCD LCD, chip resistance capacitance and components industry electronic components metal pin wetting resistance test before the aging accelerated life time test; Semiconductor and passive components, parts pin oxidation test.
1 Having safety device, including multi over-temperature protection and power off when out of water.
2 Testing high temperature/high humidity to spare pares, components.
3 Digital electronic indicators + S. S. R with PID automatic calaulation capabilitty.
4 Have time planning function, the maximum setting is 9990 minutes.
Detailed Introduction:
Applicable to electronic connectors, semiconductor IC, transistors, diodes, LCD, chip resistance capacitance, zero components industry electronic components metal pin dip tinability test before aging accelerated life time test; semiconductor, passive components, parts pin oxidation test. Microcomputer temperature controller, LED digital display, PID + SSR control, platinum resistance temperature sensor (PT-100), resolution 0.1 ℃, automatic safety protection device.
Technical Specifications Parameters:
| Internal Size | 500×400×170(W×H×D)mm |
| External Dimensions | 600 × 500 × 420 (W × H × D) mm |
| Internal and External Box Material | SUS304 # high-quality stainless steel plate |
| Insulation Layer | PV foam rubber |
| temperature Rise Time | about 40 minutes |
| Control Function | PID + SSR, digital display |
| Steam Temperature | 97 ℃ |
| Timing Function | 1 ~ 9999H/M/S, with time to alarm function, cut off the power when the time arrives |
| Water Level Control | low water level alarm function |
| Power Supply | 1Ø 220V±10% 50Hz 1.0KW |
