Temperature Alternating Damp Heat Test Chamber Humidity 405040 Cm SUS304

Large Image : Temperature Alternating Damp Heat Test Chamber Humidity 40*50*40 Cm SUS304

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Zhongli
Certification:	ISO，CE
Model Number:	ZL-6019

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Factory High and Low Temperature Alternating Damp Heat Test Chamber Temperature And Humidity Test Chamber will be Packaged in wooden case （fumigation free）
Delivery Time:	7~10 days after order confirmed
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Name:	Factory High and Low Temperature Alternating Damp Heat Test Chamber Temperature And Humidity Test Chamber	Temperature:	-40℃ To 150℃
Fluctuate/ Uniformly:	≤±0.5℃/.+2℃ To 3℃	Heating-up Time:	-40℃ To 100℃ About 55min
Cooling Time:	25℃ To -70℃ About 80min	Sensor:	Platinum Resistance PT100Ω/MV
Environmental Temperature:	5℃ To 30℃ ≤85%R.H	Model:	ZL-6019
Highlight:	Temperature Alternating Damp Heat Test Chamber , SUS304 Temperature Test Chamber , 405040 cm Temperature Humidity Test Chamber

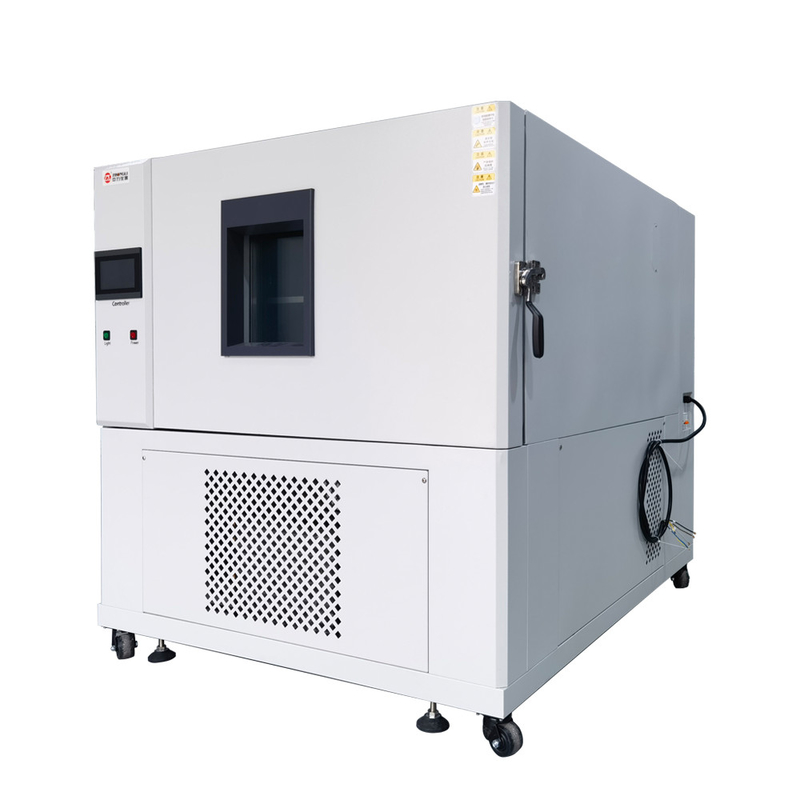

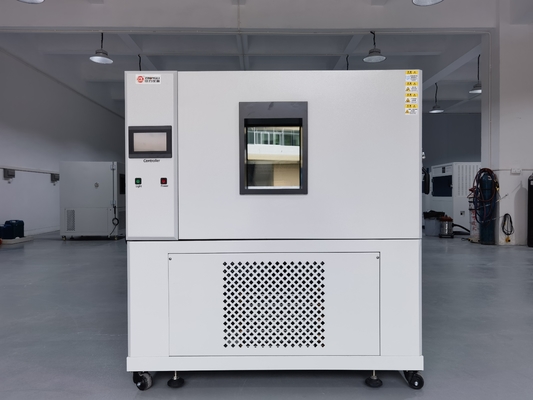

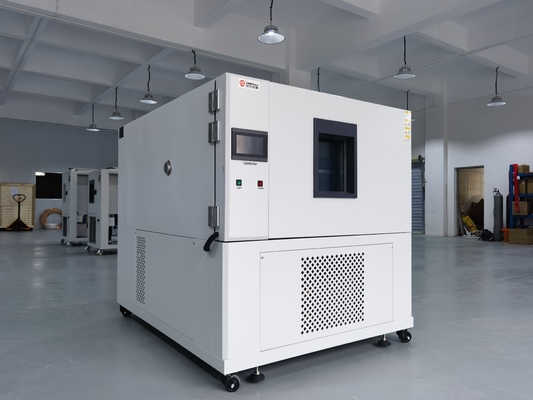

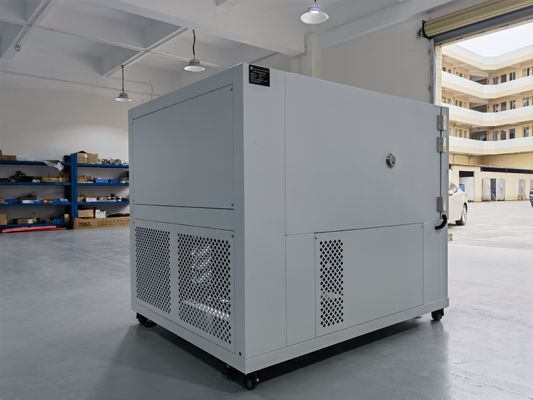

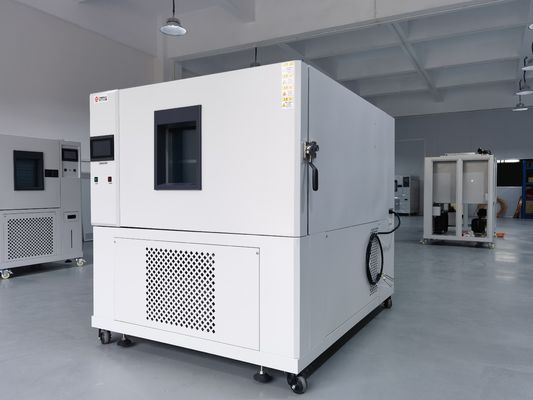

Temperature Alternating Damp Heat Test Chamber

Model: ZL-6019 High And Low Temperature Test Chamber

Inner Size: 40*50*40 cm | SUS304 Stainless Steel Construction

Product Overview

This Temperature Humidity Climatic Test Chamber is designed for testing materials under various environmental conditions including heat resistance, cold resistance, dry resistance, and moisture resistance. The system features simple operation, easy programming, and clear display of set values and operational time.

Compliance Standards

International Standards Compliance

International Electrotechnical Commission (IEC) Standards
Military Standards (MIL-STD-810F, MIL-STD-883C)
Japanese Industrial Standards (JIS)
USA Semiconductor Industry Standards (JESD22)
Chinese National Standards (GB/T, GB2423)
China's National Military Environment Test Equipment Standards (GJB150)

Technical Specifications

Parameter	Specification
Inner Dimensions (DWH)	405040 cm \| 405050 cm \| 506050 cm
Temperature Range	-40°C to +150°C
Temperature Fluctuation/Uniformity	≤±0.5°C / ±2°C to 3°C
Heating Time	-40°C to 100°C: approximately 55 minutes
Cooling Time	25°C to -70°C: approximately 80 minutes
Control System	LED digital P,I,D microcomputer controller
Accuracy	Setting accuracy: ±0.1°C, Resolution: ±0.1°C
Sensor	Platinum resistance PT100Ω/MV
Power Supply	AC380V±10%, 50±0.5Hz Three-phase five-wire system

Refrigeration System

Compressor: Fully hermetic compressor imported from France
Refrigerant: Environmentally friendly R404A
Condenser: Fin type with heat dissipation motor
Evaporator: Fin type multi-section automatic load capacity adjustment
Expansion System: Refrigeration system with capacity control

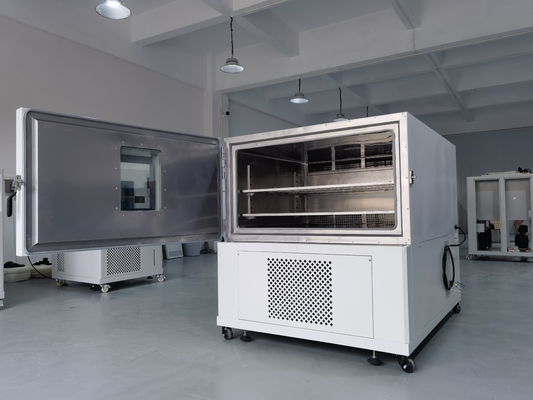

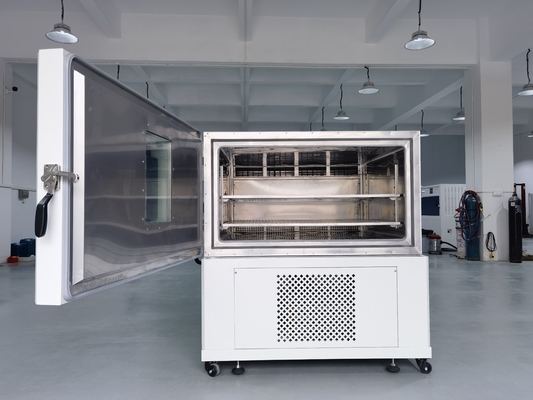

Construction Details

Inner Box Material: Mirror stainless steel plate (SUS 304, 1.0mm thick)
Outer Box Material: Stainless steel plate (1.0mm thick)
Insulation: Rigid Polyurethane foam (100mm thick)
Observation Window: Three-layer vacuum glass (320*250*40mm)
Window Anti-sweat: Electric heating device to prevent condensation
Lighting: High brightness energy-saving lamps
Test Holes: 50mm diameter with stainless steel cover
Shelves: Stainless steel SUS 304 perforated steel shelves (2 pieces)
Weight: Approximately 200KG

Safety Features

Leak current protection
Short circuit protection
Over temperature protection
Motor overheating protection
Over-pressure compressor protection
Overload protection
Over-current protection
Timer: 0.1 to 999.9 (S,M,H) adjustable

Note: All data measured at ambient temperature of 25°C under no-load conditions. Custom non-standard configurations available upon request.
