Product Details:
Payment & Shipping Terms:
|

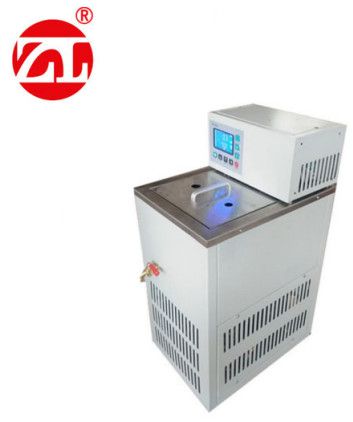

Name: | Lab High Precision Constant Temperature Water Bath And Constant Temperature Oil Tank | Model: | ZL-6017D |
---|---|---|---|
Volume: | 5L | Temperature RangeRoom Temperature - 300 ℃: | Room Temperature - 300 ℃ |
Temperature Fluctuation: | ± 0.02 ℃ | The Size Of The Opening: | 180 X 140mm2 |
With Tube Rack: | Stainless Steel, Open 12 Round Holes Of 16mm Diameter | Instrument Size: | 240 X 370 X 400mm3 |
The Total Weight: | 18KG | ||
Highlight: | High Precision Constant Temperature Test Chamber,240 x 370 x 400 mm3 Constant Temperature Test Chamber,5L Environmental Test Chamber |
Overview:
For universities, industrial and mining enterprises and scientific research units for precise constant temperature and auxiliary heating purposes.
Technical Parameters:
1.Volume | 5L |
2.Temperature Range | Room Temperature - 300 ℃ |
3.Temperature Fluctuation | ± 0.02 ℃ |
4.The Size Of The Opening | 180 x 140mm2 |
5.With Tube Rack (stainless steel, open 12 round holes of 16mm diameter) | |
6.Instrument Size | 240 x 370 x 400mm3 |
7.The Total Weight Of The Instrument | 18KG |
Main Features:
High-precision low-temperature thermostat tank adopts microcomputer intelligent control system, with over-temperature protection, temperature sensor abnormal protection function, to ensure the safety of the test, touch button operation can quickly and accurately set the temperature, easy to operate.
The microcomputer system is convenient to correct the error between the displayed temperature and the actual temperature, the temperature correction resolution is up to 0.01℃, so that the digital display temperature value is accurate. Special user PID parameters can be reset by themselves, and has PID self-tuning function.
Precise temperature control, advanced internal circulation system, so that the temperature in the working tank is fast and constant.
III. Main Applications
High precision constant temperature water and oil tank is suitable for electronic testing, chemical reaction, high temperature distillation, semiconductor industry and other low temperature experimental instruments with high requirements for constant temperature precision, with the characteristics of making the temperature in the tank and uniform, intelligent temperature control more accurate. It can also be used as a general thermometer and other temperature measuring instruments in the manufacture of calibration purposes.
