Horizontal Cylindrical Pressure Steam Sterilizer 150L 200L 280L 400L 500L

Large Image : Horizontal Cylindrical Pressure Steam Sterilizer 150L 200L 280L 400L 500L

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-6024

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	150L 200L 280L 400L 500L Horizontal Cylindrical Pressure Steam Sterilizer is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	150L 200L 280L 400L 500L Horizontal Cylindrical Pressure Steam Sterilizer	Working Pressure:	0.22 MPa
Working Temperature:	134℃	Heating Equilibrium:	≤± 2℃
Power/Voltage:	18KW/380V 50Hz	Gross Weight/Net Weight:	580/470 KG
Adjustment Of Temperature:	105℃ - 134℃	Time Of Sterilization:	0-60 Min
Time Of Drying:	0-60 Min	Heat Average:	≤±1℃
Highlight:	Horizontal Cylindrical Pressure Steam Sterilizer , 500L Cylindrical Pressure Steam Sterilizer , 150L Horizontal Steam Sterilizer

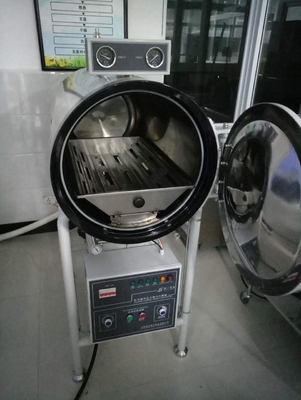

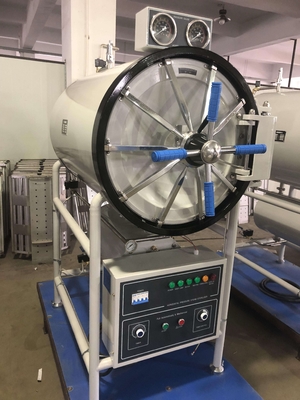

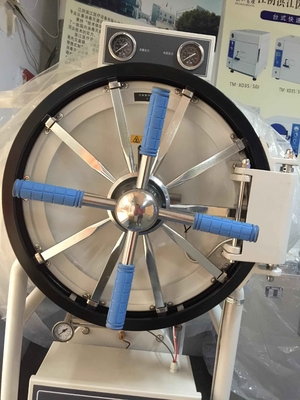

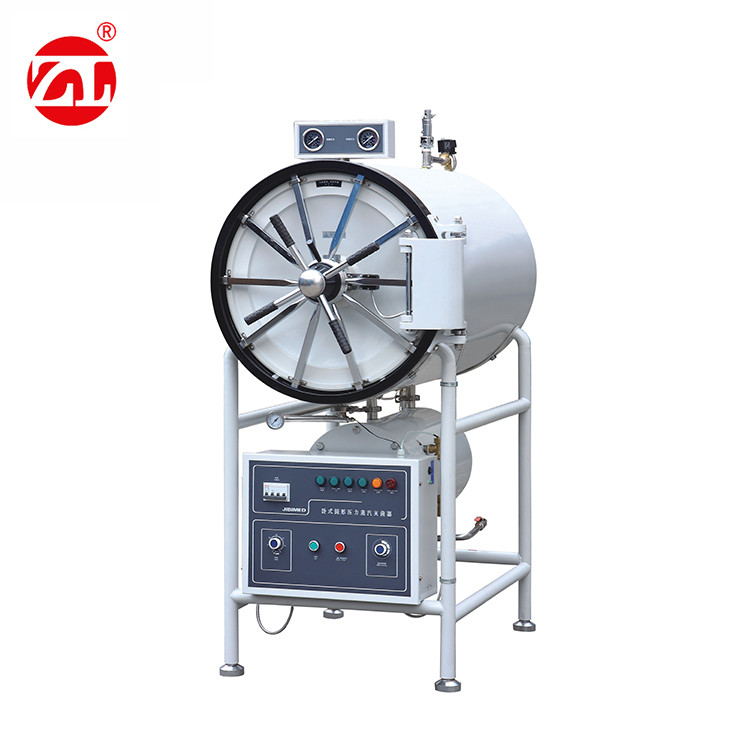

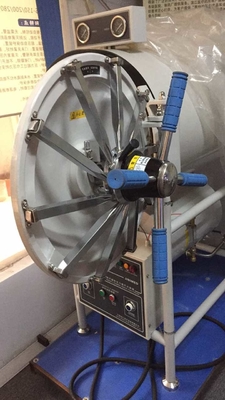

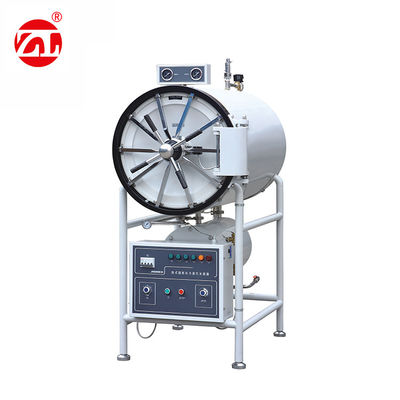

Horizontal Cylindrical Pressure Steam Sterilizer

Available in 150L, 200L, 280L, 400L, and 500L capacities for comprehensive sterilization solutions.

Machine Overview

The High Pressure Heat Steam Aging Test Chamber represents advanced electromechanical integration technology. Designed and manufactured in strict compliance with GB150-1998 standards, this pressure vessel features high-quality stainless steel construction at all points of contact with sterilized items. The system delivers safe, pollution-free operation with rapid sterilization cycles, user-friendly controls, powerful functionality, and reliable performance.

Applications

Ideal for hospital supply rooms, operating theaters, pharmaceutical manufacturing facilities, and scientific research institutions requiring precise sterilization capabilities.

Key Features

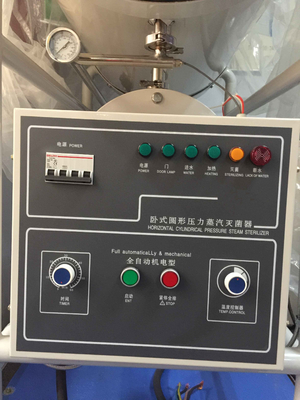

Automatically controlled sterilization process requiring no supervision
Integrated drying function for complete processing of sterilized articles
Over-temperature and over-pressure automatic protection systems
Safety interlock device prevents operation when door is improperly sealed
Pressure-based door locking system prevents opening above 0.027MPa
Overpressure protection with automatic safety valve pressure release
Low water level protection with automatic power cutoff
Over-current protection with automatic circuit breaker activation
High-quality stainless steel sterilization chamber construction

Technical Specifications

Technical Data	ZL6024-150	ZL6024-200	ZL6024-280	ZL6024-400	ZL6024-500
Sterilizing Chamber Volume	150L φ440*1000mm	200L φ515*1000mm	280L φ600*1000mm	400L Φ700*1100mm	500L Φ700*1300mm
Working Pressure	0.22MPa
Working Temperature	134℃
Temperature Adjustment	105℃ - 134℃
Sterilization Time	0-60 min
Drying Time	0-60 min
Heat Average	≤±1℃
Power	9KW/380V 50Hz	9KW/380V 50Hz	12KW/380V 50Hz	18KW/380V 50Hz	18KW/380V 50Hz
Dimension	14006001300	14006701650	14007701780	14308801830	18009001820
Transport Dimension	15507501850	15608201850	16809202100	180010502100	185010502100
G.W/N.W	320/240 KG	350/260 KG	465/365 KG	530/520 KG	580/470 KG
