Simulated Environmental Sand And Dust Test Chamber Dust Proof Programmable

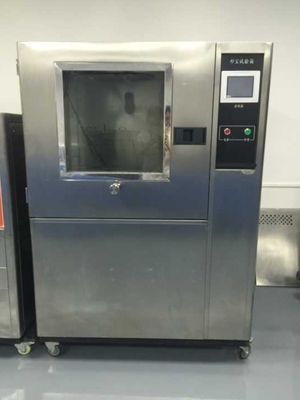

Large Image : Simulated Environmental Sand And Dust Test Chamber Dust Proof Programmable

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Zhongli
Certification:	ISO,CE
Model Number:	ZL-6022

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Simulated Environmental Dust Proof Programmable Sand and Dust Test Chamber is packaged in wooden case.
Delivery Time:	10~15 days after order confirmed
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	100 sets per month

Contact Now

Detailed Product Description

Product Name:	Simulated Environmental Dust Proof Programmable Sand And Dust Test Chamber	Specification Model:	ZL-6022-600
Inner Box Size:	(W600D600H600 Mm) Can Be Customized	Outer Box Size:	W1100 * D1300 * H1800 Mm
Control Method:	Color Screen Touch Controller (Korea)	Depending On Window Size:	400 X 400 Mm
Dust Blowing Method:	Dust Blowing Down	Talcum Powder Blowing Dust Concentration:	2kg ~ 4kg/3
Using The Power Supply:	220V 1.5KW
Highlight:	Sand and Dust Test Chamber , Simulated Environmental Test Chamber Dust Proof , Programmable Environmental Test Chamber

Simulated Environmental Dust Proof Programmable Sand and Dust Test Chamber

ZL-6022 Dust test machine.pdf Environmental Test Chamber.pdf

Product Overview

The sand and dust test chamber simulates the destructive effects of wind and sand climate on products, specifically designed for testing the sealing performance of product enclosures. This equipment meets IP5X and IP6X protection grade standards and features a dust-laden vertical circulation airflow system that recycles test dust. Constructed with imported high-grade stainless steel, the system forms a closed vertical dust circulation that ensures smooth airflow and uniform dust dispersion. Equipped with a single high-power, low-noise centrifugal fan with variable frequency speed regulation for precise wind speed control.

Product Applications

This sand and dust test chamber evaluates product enclosure sealing performance according to IP5X and IP6X test standards. It simulates sand and dust environments encountered during production, transportation, and storage to verify protective capabilities. Essential for quality control in automotive parts manufacturing and other industries requiring compliance with stringent environmental testing standards, helping manufacturers identify and resolve design issues during product development.

Equipment Parameters

Specification Model	ZL-6022-600
Inner Box Size	W600D600H600 mm (customizable)
Outer Box Size	W1100 * D1300 * H1800 mm
Control Method	Color screen touch controller (Korea)
Inner Box Material	304 mirror finish stainless steel
Outer Box Material	304 brushed stainless steel
Observation Window Size	400 x 400 mm
Dust Blowing Method	Dust blowing down
Talcum Powder Blowing Dust Concentration	2kg ~ 4kg/m³
Test Wind Speed	0.5~8.9 m/s
Test Dust	Dry photo talcum powder
Temperature Range	RT+10 to 80°C
Metal Screen Wire Warp	50um
Air/Dust-Mixture Density	5kg/m³ ± 2kg/m³
Vibrating Time	Adjustable from 1-999 minutes
Test Time	1-999 minutes
Power Supply	220V 1.5KW
