| Product Name: | Helmet Xenon Test Chamber Xenon Lamp Aging Tester | UV Light Source: | 450W Short Pulse High Pressure Xenon Lamp |
|---|---|---|---|
| Temperature Sensor: | Adopt High Precision Temperature Sensor, Test Temperature Accuracy 0.2% | Temperature Control System: | Temperature Control System |
| Temperature Range: | 0-200℃ | Number Of Samples: | 1-14 Helmets, Spherical Distributed Construction |
| Experimental Chamber Temperature: | ＜60℃ | Machine Appearance Size: | 930x850x1520mm (length, Width And Height) |
| High Light: | Helmet Xenon Test Chamber,Xenon Lamp Aging Tester Chamber,450W Helmet Xenon Test Chamber |
||
Environmental Test Chamber.pdf
Application:
According to safety helmet GB/T2812-2006, GB 2811-2007,ECE,EN,ASTM,JIS,SNELLM2015,AS/NZS 2063 production, mainly used for safety helmet UV pretreatment test. Widely used in special labor protection supplies supervision and inspection station, building science research institute, construction engineering quality inspection station.
Host Structure:
1.The whole machine is all made of stainless steel case, and the internal devices are made of stainless steel or PTFE material, which itself has strong anti-UV capability and prolongs service life.

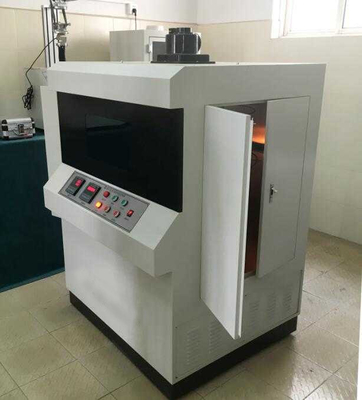

2.The specimen frame can be rotated 360°, which is convenient for installing helmets. Only one side of the door can be opened to complete the installation of the helmet.
3.UV light source using 450W short pulse high-pressure xenon lamp, supporting the power trigger to ensure the stability of the light source type.
4.the use of "down into the wind, the upper wind" air-cooled cooling system. Special turbo fan to ensure that the outside wind energy flows uniformly across the surface of the xenon lamp and the interior of the test chamber to ensure that the standard requirement of 60 ℃ is not exceeded, extending the service life of internal devices.
Technical Parameters:
| UV Light Source | 450W short pulse high pressure xenon lamp |
| Temperature Sensor | Adopt high precision temperature sensor, test temperature accuracy 0.2% |
| Temperature Control System | Using high-precision PID temperature control instrument: timing range: 0~999 hours, test time accuracy: 1s |
| Temperature Range | 0-200℃ |
| Number of Samples | 1-14 helmets, spherical distributed construction |
| Experimental Chamber Temperature | ＜60℃ |
| Machine Appearance Size | 930x850x1520mm (length, width and height) |
Measurement and Control System:
1.The overall control system adopts PLC+touch screen control structure. The relevant operations can be completed by touch screen operation.
2.Testing time can be set by touch screen input, and has a power failure memory function.
PLC system + high-precision temperature sensor real-time collection of the test chamber temperature, and touch screen real-time display of temperature.
3.touch screen real-time display test status, such as system operation, high temperature alarm, timeout alarm, etc.
4.Touch screen adopts domestic famous brand, 16:9 fashionable wide screen, TFT LCD 4 lines precision resistance grid touch display, configuration 400MHz high speed CPU, faster reaction speed, stronger processing ability.
5.PLC adopts Mitsubishi PLC, with built-in large-capacity RAM memory and faster operation speed.
